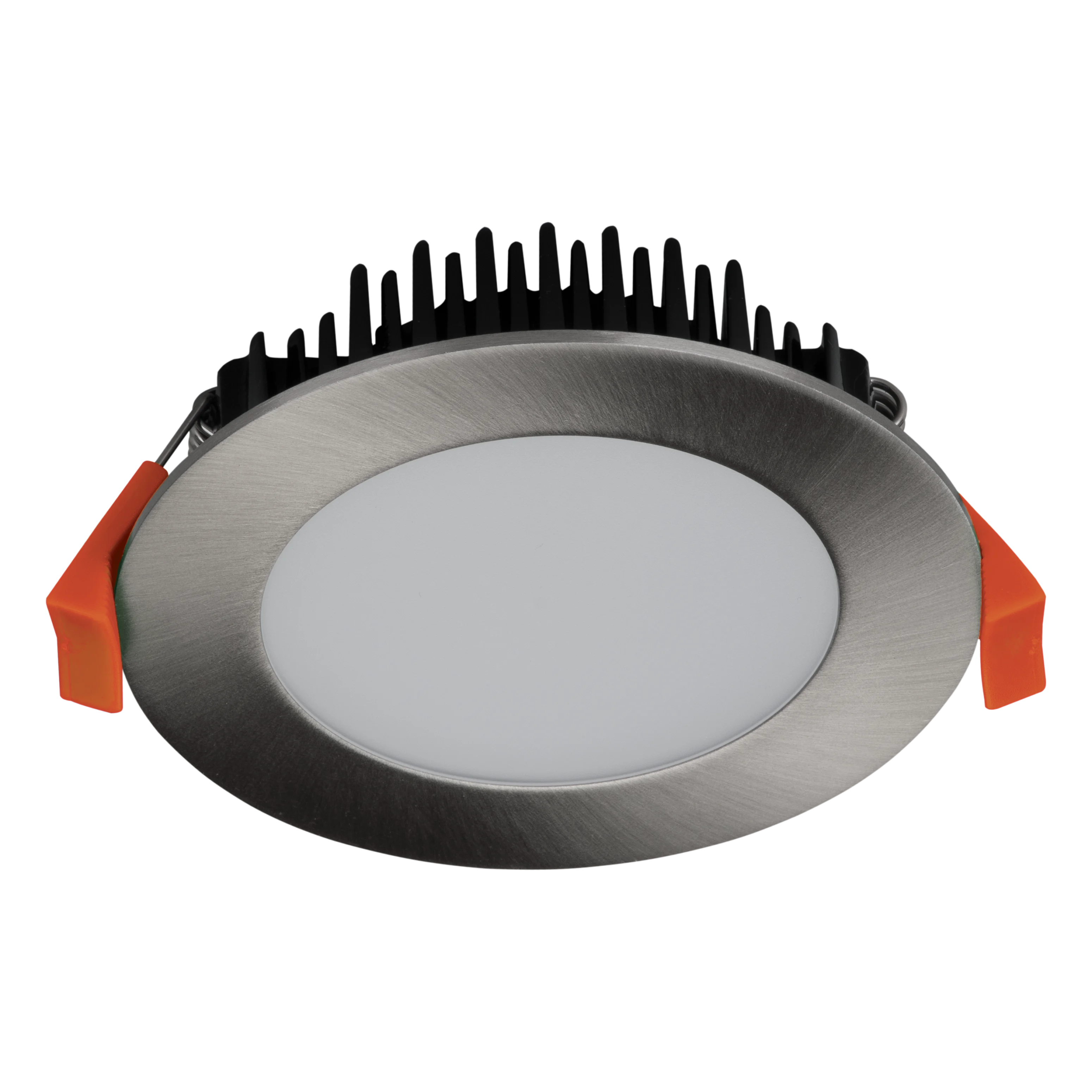

This LED downlight is a high-performance lighting solution engineered for installations where ceiling cavity space is significantly restricted. Featuring an ultra-slim housing with a depth of only 31mm, the unit utilizes advanced SMD LED technology to deliver a wide 90-degree beam distribution while maintaining a high Color Rendering Index of 90 or greater for superior color accuracy. The fixed flat face design ensures a clean aesthetic integration into modern architectural environments, providing flicker-free operation and zero UV or IR emissions for enhanced occupant comfort.
Technical versatility is a hallmark of this luminaire, which incorporates TRIO technology via a rear-mounted dip switch to allow seamless selection between 3000K warm white, 4000K cool white, and 5700K daylight white color temperatures. Operating at 13W on a standard 240V AC supply, the system produces a maximum output of 900 lumens and is fully compatible with suitable dimming systems, including DALI protocols. The inclusion of an integrated driver and a pre-wired flex and plug assembly facilitates efficient installation into ceiling cutouts ranging from 90mm to 95mm.
Durability and safety are prioritized through an IC-4 rating, permitting the fitting to be safely abutted to or covered by building insulation without compromising thermal management. The unit is constructed to achieve an IP44 weather-resistant rating from the underside once installed, making it suitable for use in damp environments such as bathrooms or protected outdoor ceiling areas. With a projected lifespan of 50,000 hours and a comprehensive five-year warranty, this lighting fixture represents a reliable long-term investment for both residential and light commercial applications.
The mechanical specifications include a 101mm diameter faceplate and a recessed mounting profile that ensures a low-profile finish. Photometric data is available upon request to assist in precise lighting design and lux level calculations. By combining energy-efficient LED components with robust environmental protections and flexible output settings, this downlight provides a sophisticated and adaptable solution for diverse interior lighting requirements where quality and space-saving design are paramount.
PRODUCT TYPE: LED Downlight
APPLICATIONS: Installations where ceiling space is minimal
WARRANTY: 5 years
COLOUR: Satin Chrome
IP RATING: IP44 (weather-resistant)
LUMENS: 800lm (for 3000K); 850lm (for 4000K); 900lm (for 5700K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5700K (daylight white)
VOLTAGE: 240V AC
WATTAGE: 13W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes (fully dimmable with suitable dimmers)
DALI: Yes

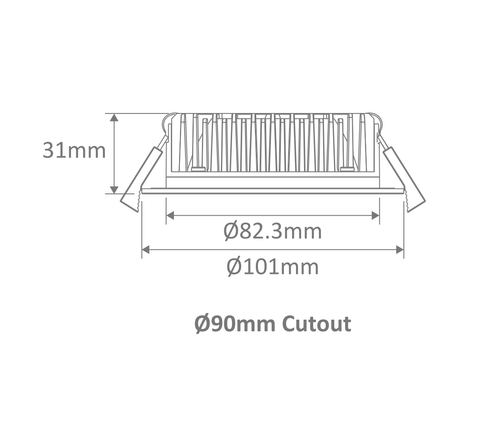

DIMENSIONS: 101mm (diameter) x 31mm (height)
CUTOUT: 90-95mm (diameter)
MOUNTING: Recessed
CRI: ≥90
BEAM ANGLE: 90°
LIFESPAN: 50,000 hours
PHOTOMETRIC DATA: Available upon request
OPERATION: TRIO technology with a dip switch at the back of the fitting for changing the colour temperature output
IC RATING: IC-4
FEATURES: Fixed flat face; wide light distribution; ultra-slim housing; SMD LED; no UV/IR emissions; flicker-free operation; flex and plug
REMARKS: IP44 rating applies from the underside of the downlight once installed into the ceiling
