This LED downlight is a high-performance illumination solution engineered for installations where ceiling plenum space is restricted, featuring an ultra-slim housing and a deep-set frame for reduced glare. The integrated SMD LED technology delivers a high luminous flux of up to 1230lm with a wide 90-degree beam angle, ensuring uniform light distribution across residential or commercial environments. Constructed for longevity, the fitting boasts a 50,000-hour lifespan and is backed by a comprehensive five-year warranty, reflecting its superior build quality and reliability.
Technical versatility is a hallmark of this luminaire, which incorporates TRIO technology via a rear-mounted dip switch to allow seamless selection between 3000K warm white, 4000K cool white, and 5700K daylight white color temperatures. The unit is fully dimmable when paired with compatible dimming systems and supports DALI protocols for advanced lighting control integration. Its electrical architecture is designed for 240V AC operation, providing flicker-free performance and maintaining a color rendering index of 80 or higher for accurate color representation within the illuminated space.
The mechanical design includes a 15-degree tilt adjustment capability, allowing for precise directional lighting and highlighting of specific architectural features or task areas. With a 110mm diameter and a 95mm cutout requirement, the recessed mounting system is streamlined for efficient installation using the provided flex and plug. The fitting is also IC-4 rated, signifying it can be safely abutted to or covered by building insulation, which simplifies the installation process while maintaining thermal safety standards and energy efficiency.
Environmental protection is addressed with an IP44 rating, making the underside of the downlight weather-resistant and suitable for use in damp areas such as bathrooms or protected outdoor soffits. The luminaire is engineered to emit no UV or IR radiation, ensuring the protection of sensitive materials and surfaces within the room. This robust lighting fixture combines aesthetic minimalism with advanced optical engineering to provide a durable, energy-efficient, and adaptable lighting solution for modern interior design requirements.
PRODUCT TYPE: LED Downlight
APPLICATIONS: Installations where ceiling space is minimal
WARRANTY: 5 years
COLOUR: Black
IP RATING: IP44 (weather-resistant)
LUMENS: 1120lm (for 3000K); 1230lm (for 4000K); 1170lm (for 5700K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5700K (daylight white)
VOLTAGE: 240V AC
WATTAGE: 13W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes (fully dimmable with suitable dimmers)
DALI: Yes

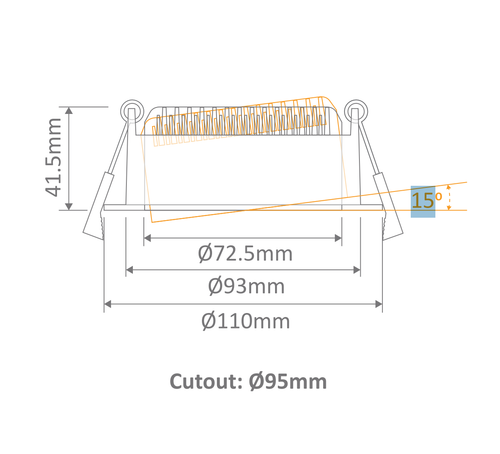

DIMENSIONS: 110mm (diameter) x 41.5mm (height)
CUTOUT: 95mm (diameter)
MOUNTING: Recessed
CRI: ≥80
BEAM ANGLE: 90°
LIFESPAN: 50,000 hours
PHOTOMETRIC DATA: Available upon request
ADJUSTABLE: Yes
OPERATION: 15° tilt; TRIO technology with a dip switch at the back of the fitting for changing the colour temperature output
IC RATING: IC-4
FEATURES: Deep-set frame; wide light distribution; ultra-slim housing; SMD LED; no UV/IR emissions; flicker-free operation; flex and plug
REMARKS: IP44 rating applies from the underside of the downlight once installed into the ceiling
