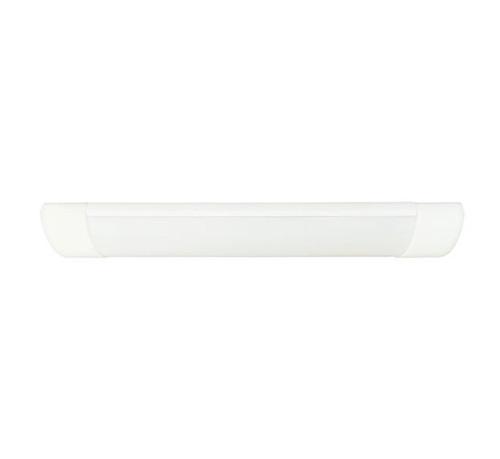

This LED batten light is engineered as a compact and efficient linear lighting solution for indoor commercial and residential environments where consistent illumination and long-term reliability are required. The fitting features a 600mm wide body constructed from white aluminium with a polycarbonate diffuser and end caps, providing structural rigidity while ensuring even light distribution across the illuminated surface. With an ingress protection rating of IP20, the luminaire is specifically designed for dry, internal locations such as workshops, storage areas, corridors, and utility spaces.
The integrated LED system operates at a total power consumption of 20W and delivers a maximum luminous flux of 2000lm, providing strong, energy-efficient illumination with excellent visual clarity. The luminaire incorporates Tri-CCT technology, allowing the installer to select between 3000K, 4000K, and 5000K colour temperatures to suit the application, ranging from warm ambient lighting to bright task-focused illumination. A colour rendering index of Ra>80 ensures accurate colour perception in functional and working environments.
Electrical performance is optimised for stability and safety, operating on a 200-240V 50Hz supply and utilising fixed LED chips that eliminate the need for replaceable globes. The non-dimmable driver is designed for consistent light output and flicker-free operation, while the internal terminal block allows for efficient, secure wiring during installation. With a rated operational life of 40,000 hours at Ta25°C, this luminaire is built to maintain performance over extended service periods with minimal maintenance requirements.
Installation must be carried out by a licensed electrician to ensure compliance with electrical standards and to maintain warranty validity. The robust construction and efficient thermal management support long-term performance, while the product is backed by a 2-year replacement warranty, offering confidence in durability and manufacturing quality. This batten light provides a dependable, high-performance lighting solution for applications requiring precise light control, energy efficiency, and professional-grade construction.
COLOUR: White
MATERIAL: Aluminium housing with polycarbonate diffuser and end caps

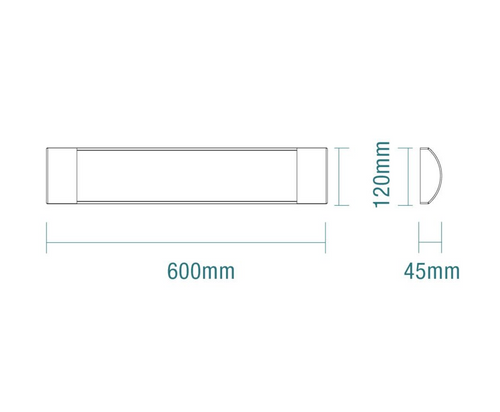

DIMENSIONS: 600mm (length) x 120mm (width) x 45mm (height)
IP RATING: IP20 (indoors only)
WATTAGE: 20W
VOLTAGE: 200-240V 50Hz
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 1800lm (3000K), 2000lm (4000K), 1900lm (5000K)
CRI: Ra>80
DIMMABLE: No
LIFE SPAN: 40,000 hours @ Ta25°C
FEATURES: Wide body slimline design; internal terminal block for easy wiring
PHOTOMETRIC DATA: IES files available upon request
INSTALLATION: By licensed electrician only
WARRANTY: 2 years (replacement - void unless installed by a licensed electrician)
