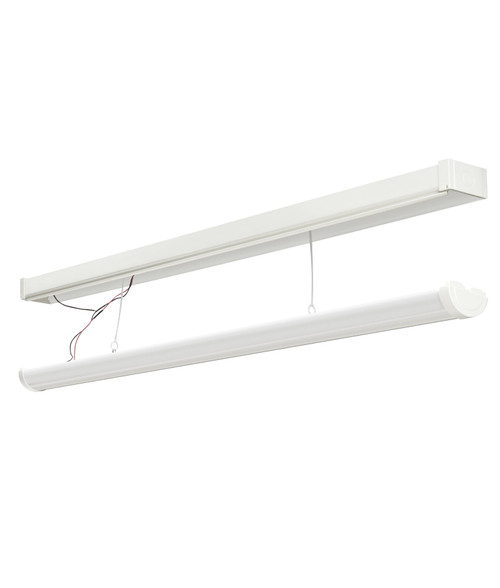

This LED batten light delivers a high-performance lighting solution designed for versatile interior applications. Constructed from durable steel and polycarbonate, it provides a robust housing and diffuser combination that ensures long-term reliability and consistent optical performance. Its compact 620mm profile allows installation in confined spaces while maintaining ample light output for residential, commercial, or utility environments that require efficient surface-mounted illumination. The sleek white finish integrates seamlessly with a wide range of interior aesthetics, offering both functionality and modern appeal.
Engineered for adaptable lighting conditions, this batten light incorporates a Tri-CCT system with an internal switch to select between 3000K warm white, 4000K cool white, and 5700K daylight white. The dual-wattage design enables operation at either 10W or 20W, producing luminous flux levels of 900lm/1800lm at 3000K, 1100lm/2200lm at 4000K, and 1000lm/2000lm at 5700K. This flexible configuration allows precise tuning of both colour temperature and output to suit task lighting, ambient illumination, or energy-saving requirements, ensuring optimal visual comfort and efficiency.
The integrated constant-current driver and power factor of 0.9 guarantee stable electrical performance across a 220-240V supply, delivering flicker-free operation with minimal energy loss. A wide 110° beam angle provides uniform light distribution, reducing shadows and enhancing coverage across workspaces, corridors, and service areas. Designed for a service life of up to 30,000 hours, the LED chips provide long-lasting illumination while eliminating the need for regular lamp replacements, significantly lowering maintenance costs over time.
Installation is simplified through a large terminal block, easy-fit back plate, and compatibility with 2-way switching or 3-wire sensors for advanced control options. The unit operates reliably in ambient temperatures from -20°C to 40°C and is rated IP20 for indoor environments. Although non-dimmable, it ensures consistent brightness and colour stability, making it ideal for settings where dependable, energy-efficient lighting is critical. This LED batten light must be installed by a licenced electrician and is backed by a 3-year replacement warranty for assured performance and peace of mind.
COLOUR: White
MATERIAL: Steel and polycarbonate
DIMENSIONS: 620mm (length) x 70mm (height) x 65mm (width)
LED WATTAGE: 10W/20W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5700K (daylight white)
LUMENS: 10W - 900lm (3000K), 1100lm (4000K), 1000lm (5700K); 20W - 1800lm (3000K), 2200lm (4000K), 2000lm (5700K)
VOLTAGE: 220-240V
POWER FACTOR: 0.9
DRIVER: Inbuilt
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: No
BEAM ANGLE: 110°
IP RATING: IP20 (indoors only)
LIFE SPAN: 30,000 hours
OPERATION: Suitable for 2-way switching; suitable for use with 3 wire sensor; large terminal block for easy installation
MOUNTING: Surface mounted
FEATURES: Tri-CCT with CCT switch inside the fitting
INSTALLATION: Must be installed by a licenced electrician
WARRANTY: 3 years (replacement)
