This LED batten light is a sophisticated illumination solution engineered for versatile indoor applications, featuring a robust polycarbonate diffuser and a durable white back plate. Designed to operate within a voltage range of 220V-240V, this 18W fixture delivers a precise 4000K cool white colour temperature, ensuring optimal visibility and clarity in various environments. The integrated LED technology provides a consistent luminous flux of 1440lm with a wide 120-degree beam angle, making it an efficient choice for modern lighting requirements.
Technical excellence is at the core of this luminaire, which boasts an SAA-approved integral driver and a high Colour Rendering Index of 80 for accurate colour representation. The physical dimensions of 480mm in length, 86mm in width, and 56mm in height allow for a compact yet powerful lighting footprint. With its IP20 rating, the unit is specifically optimized for internal use, providing reliable performance while maintaining a sleek and professional aesthetic suitable for contemporary ceiling or wall installations.
Installation is streamlined through a user-centric design that includes large terminal blocks for easy wiring and a strategically placed cable entry at the centre of the back plate. This flexibility extends to its mounting capabilities, as the fixture can be successfully installed on ceilings, walls, or even suspended as a strip light option. Its unique profile also allows for mounting into internal corners, offering architects and installers significant creative freedom when addressing complex spatial lighting challenges.
Constructed to meet rigorous safety and quality standards, this lighting solution includes a one-year warranty, reflecting its status as a dependable component for residential or commercial projects. The inclusion of a built-in LED globe and driver ensures that the system is ready for immediate deployment upon installation. By combining high-quality materials with advanced electrical engineering, this product stands as a premier choice for those seeking a balance of performance, longevity, and ease of maintenance in their lighting infrastructure.
PRODUCT TYPE: LED Batten Light
APPLICATIONS: Ideal suspension batten strip light option; can be mounted into internal corners
WARRANTY: 1 year
COMPLIANCE: SAA-approved (integral driver)
COLOUR: White (back plate)
MATERIAL: Polycarbonate (diffuser)
IP RATING: Indoors only
LUMENS: 1440lm
COLOUR TEMP: 4000K (cool white)
VOLTAGE: 220V-240V
WATTAGE: 18W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)

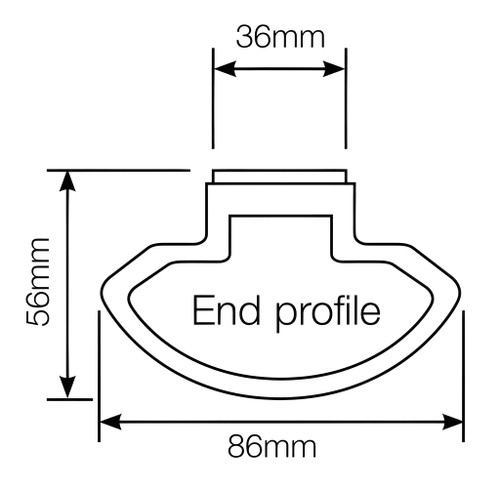

DIMENSIONS: 480mm (length) x 86mm (width) x 56mm (height)
MOUNTING: Ceiling; wall; suspended
CRI: 80
FEATURES: Painted white back plate

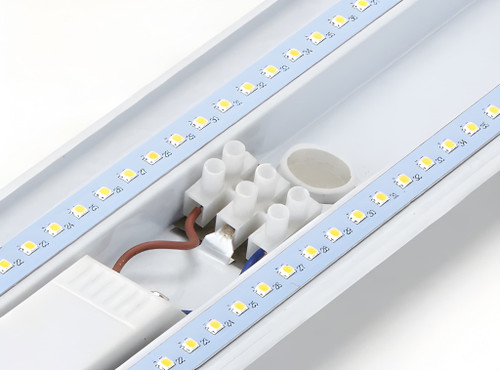

INSTALLATION: Easy wiring with large terminal blocks; cable entry at centre of back plate
