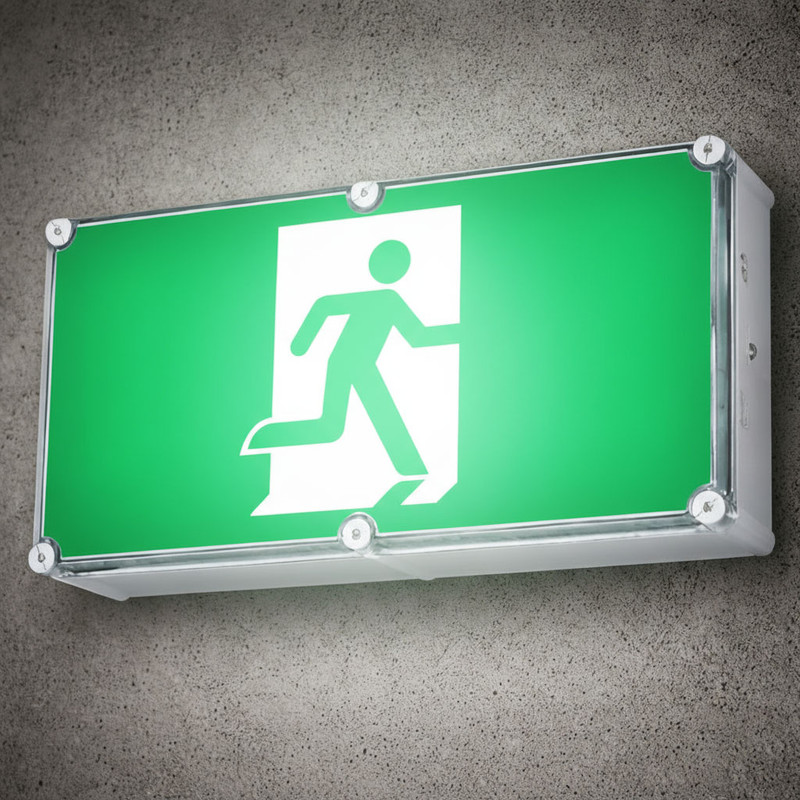

This commercial grade emergency exit light represents the pinnacle of industrial lighting performance, meticulously engineered to comply with rigorous AS/NZS 2293 standards. Encased in a flame-retardant polycarbonate and sheet-metal body, it achieves an exceptional IP67 ingress protection rating, rendering it impervious to dust and water from any direction. The product’s IK10 impact resistance further underlines its mechanical durability, ensuring steadfast operation even in high-risk environments prone to physical disturbances. As a maintained emergency luminaire, it functions continuously under normal conditions and remains fully operational during power outages for a duration exceeding 120 minutes, a critical feature in maintaining safe egress under emergency conditions.
With a commanding physical footprint of 600mm by 270mm by 140mm and a mass of 4 kilograms, this luminaire offers a remarkable 40-meter viewing distance, ensuring high visibility in expansive and complex structures. Its high-efficacy fixed LED source, engineered for a lifespan of up to 100,000 hours, delivers consistent luminous performance while minimizing energy expenditure, operating at a standby wattage of only 5W. The unit integrates a precision-engineered intelligent three-stage charger complemented by a battery management system, optimizing charging cycles and preserving battery longevity through overcharge, overcurrent, and short circuit protection mechanisms. A green LED indicator signals active charging status, while a manual test switch enables comprehensive functional verification.
This unit is tailored for deployment across a diverse array of demanding settings, including but not limited to car parks, stadiums, aquatic centres, transport terminals, and industrial construction zones. Its rugged construction and surface wall-mounting configuration ensure ease of installation via a large terminal block and 20mm² cable entry point, catering to high-capacity electrical systems. Designed to withstand operational temperatures ranging from 1°C to 40°C, it remains reliable under variable climatic conditions. The absence of directional arrows on this model offers versatility in placement, with alternate versions available featuring left or right pictograms to suit site-specific evacuation plans.
Fully compliant with AS/NZS 2293, AS/NZS 60598.1, and RCM/EMC standards, this emergency exit light epitomizes functional precision and regulatory adherence. It offers a 5-year comprehensive warranty inclusive of the battery, underscoring the manufacturer's commitment to long-term operational integrity. Whether deployed as a standalone unit or integrated into a DALI networked system (available upon request), this product stands as a formidable solution for emergency egress illumination, combining structural fortitude, electronic sophistication, and visual clarity in one cohesive system.
TYPE: Jumbo Size Industrial Grade Emergency Exit Sign
VIEWING DISTANCE: 40m
APPLICATIONS: Almost any environment including car parks, stadiums, swimming centers, construction sites, train stations etc.
COLOUR: Green and white
WARRANTY: 5 years including battery
IP RATING: IP67 (totally protected against dust, totally protected against torrential rain and water - even short periods of immersion in water)
IK RATING: IK10 (vandalproof)
MATERIAL: Sheet-metal with flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED (fixed in fitting)
LIFE SPAN: 100,000 hours for LED source
DIMENSIONS: 600mm x 270mm x 140mm
WEIGHT: 4kg
WATTAGE: 5W (standby)
BATTERY: Lithium Iron Phosphate - 10 year design life
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
VOLTAGE: 230V (will handle 220V - 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted on wall
PICTOGRAM: No arrow (we have identical versions of this exit light available with left and with right arrows)
COMPLIANCE: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
CLASSIFICATION: C0 E1.6 C90 E1.0
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
OPERATING TEMP: 1° to 40°C
DESIGNED: For Australia
AVAILABLE: Normal (ie single point) as well as DALI (contact us if DALI required)
