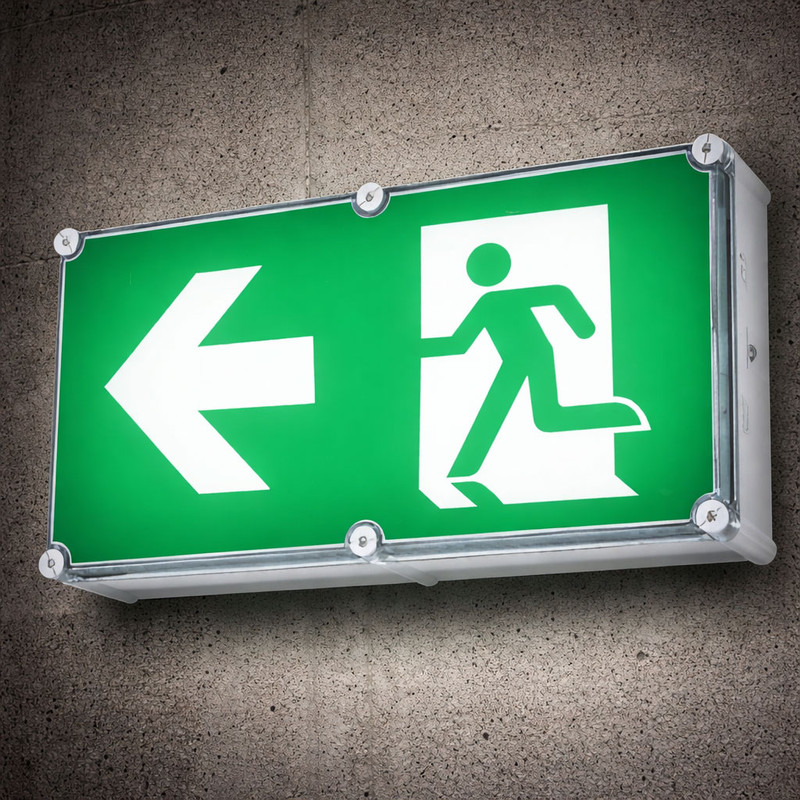

Introducing our jumbo size industrial-grade emergency luminaire engineered to endure the harshest environmental challenges with unwavering reliability. Encased within a robust IP67-rated polycarbonate housing, this weatherproof marvel is a fortress against water, dust, and impact, making it the go-to choice for outdoor locales like car parks and stadiums, as well as indoor environments such as swimming centers, construction sites, and train stations. Adhering to AS/NZS 2293 standards, this revolutionary lighting system not only prolongs battery life but also ensures cost-effective operation, superior performance, and heightened safety. It is backed by a robust 5-year warranty and is equipped with self-testing capabilities. With its imposing dimensions of 600mm x 270mm x 140mm and a weight of 4.0kg, this exit light can be viewed from a distance of 40m so stands as a beacon of reliability in any industrial setting. Welcome to the future of exit lighting – where durability meets innovation, and safety knows no compromise.
TYPE: Jumbo Size Industrial Grade Emergency Exit Sign
VIEWING DISTANCE: 40m
APPLICATIONS: Almost any environment including car parks, stadiums, swimming centers, construction sites, train stations etc.
COLOUR: Green and white
WARRANTY: 5 years including battery
IP RATING: IP67 (totally protected against dust, totally protected against torrential rain and water - even short periods of immersion in water)
IK RATING: IK10 (vandalproof)
MATERIAL: Sheet-metal with flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED (fixed in fitting)
LIFE SPAN: 100,000 hours for LED source
DIMENSIONS: 600mm x 270mm x 140mm
WEIGHT: 4kg
WATTAGE: 5W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
VOLTAGE: 230V (will handle 220V - 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted on wall
PICTOGRAM: Left arrow (we have identical versions of this exit light available with right arrow and with no arrow)
COMPLIANCE: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
CLASSIFICATION: C0 E1.6 C90 E1.0
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
OPERATING TEMP: 1° to 40°C
DESIGNED: For Australia
AVAILABLE: Normal (ie single point) as well as DALI (contact us if DALI required)
