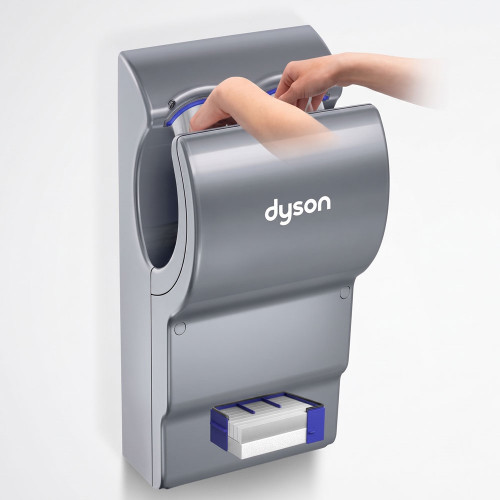

This hand dryer is a high-performance solution engineered for high-traffic and high-volume settings, providing a rapid drying time of 11 to 12 seconds. It features an advanced digital V4 brushless DC motor that operates at 90,000rpm and utilizes a switching rate of 6,000 per second to deliver an airspeed of 621 km/h. The unit is constructed with a durable polycarbonate-ABS casing and a galvanised steel back plate, ensuring longevity and resilience in demanding commercial environments.
Hygiene and air quality are prioritized through the integration of a sealed HEPA filter consisting of glass fibre and fleece prelayers, which effectively removes 99.97% of particles as small as 0.3 microns. The touch-free infra-red activation system enhances sanitary conditions by eliminating the need for physical contact during operation. Furthermore, the device is compliant with HACCP International and NSF International Protocol P335 standards, making it suitable for use in food-safe and health-conscious facilities.
Technical efficiency is a core attribute of this model, which consumes 1000W during operation and maintains a standby power consumption of less than 0.5W. The updated motor design is engineered to use 27% less energy than previous iterations while operating 50% quieter than the original model at a sound power level of 81 dB(A). It is designed for surface mounting with a 30-second operation lock-out period to prevent misuse and ensure consistent performance across its 200V-240V voltage range.
Installation is facilitated by a comprehensive mounting bracket system featuring four fixing locations and anti-tamper M6 machine screws for enhanced security. The unit has an IP35 rating and is designed to function within a working temperature range of 0°C to 40°C at altitudes up to 2,000 metres. Backed by a 5-year warranty covering parts and a 1-year limited labour warranty, this grey finished hand dryer represents a reliable and sustainable choice for modern infrastructure.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: High-traffic areas; high-volume settings
WARRANTY: 5 years (5 year parts and 1 year limited labour warranty)
COMPLIANCE: HACCP International; NSF International Protocol P335; Carbon Trust

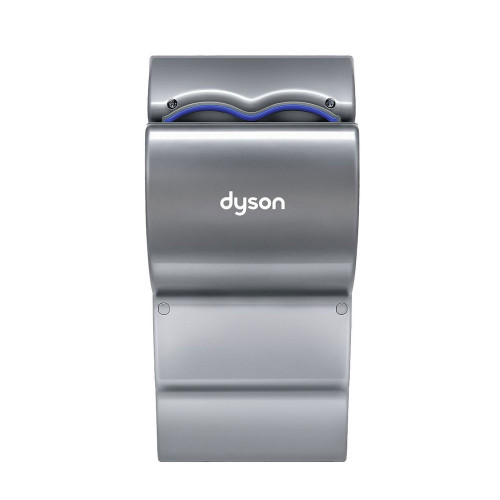

COLOUR: Metallic Grey (Moulded Steel finish)
MATERIAL: Polycarbonate-ABS (casing); galvanised steel (back plate/mounting bracket)
IP RATING: IP35
VOLTAGE: 200V-240V (50-60Hz)
WATTAGE: 1000W
DIMENSIONS: 661mm (height) x 303mm (width) x 247mm (depth)
WEIGHT: 8.2kg
MOUNTING: Surface mounted
NOISE: 81 dB(A) sound power
MOTION SENSOR: Yes (touch-free infra-red activation)
WORKING TEMP: 0°C-40°C
INSTALLATION: Mounting bracket (including 2 fixings); 4 fixing locations; anti-tamper M6 machine screws; minimum clearance: 200mm from floor and 50mm either side and above
FEATURES: Updated digital motor uses 27% less energy than the previous model; 50% quieter than the original model; 30 second operation lock-out period; engineered for constant use; constructed from tough, durable, high-impact ABS polycarbonate
MOTOR TYPE: Digital V4 brushless DC motor
MOTOR SWITCHING RATE: 6,000 per second
MOTOR SPEED: 90,000rpm
CURRENT: 7.5A at 220V
STANDBY POWER CONSUMPTION: Less than 0.5W
LIGHT REFLECTIVE VALUE: 28.3 LRV
FILTER: Sealed HEPA filter (glass fibre and fleece prelayer)
FILTER EFFICIENCY: Removes 99.97% of particles as small as 0.3 microns
DRYING TIME: 11-12 seconds
AIRSPEED: 621 km/h
MAXIMUM ALTITUDE: 2,000 metres
AIRFLOW: 30l/s
HEATER TYPE: None

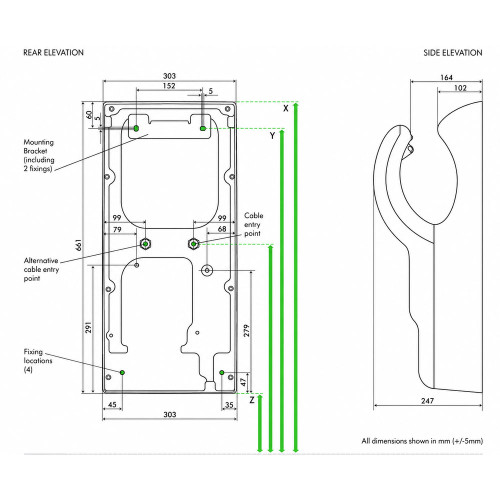

RECOMMENDED INSTALLATION HEIGHTS: Male (X 1,050mm, Y 990mm, Z 390mm); female (X 975mm, Y 915mm, Z 315mm); child or disabled (X 875mm, Y 815mm, Z 215mm)
CABLE ENTRY POINT FROM FLOOR: Male (725mm); female (650mm); child or disabled (550mm)
MAINTENANCE: Regularly clean the air inlet; check for blockages, dust or debris; wipe surfaces with a soft cloth and non-abrasive cleaner. Do not pressure wash.
