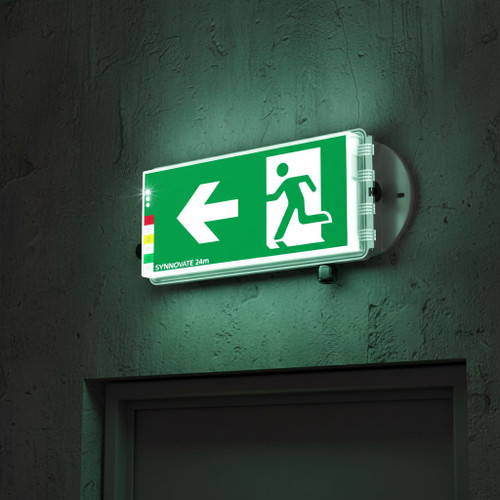

This commercial grade exit sign is engineered for hazardous area applications where reliable emergency egress illumination is critical. Certified to IECEx standards and suitable for Zone 1 and Zone 21 environments, it provides explosion-protected performance in locations where flammable gases or combustible dust may be present during normal operation. The maintained operating mode ensures continuous visibility of exit signage, supporting safety compliance in industrial, mining, and processing facilities.
The integrated LED system delivers consistent illumination with a viewing distance of up to 24 metres, ensuring clear and recognisable exit indication across large spaces. With a rated lifespan of 100,000 hours, the solid-state light source provides long-term operational stability with minimal maintenance requirements. The Green, white and clear pictogram configuration ensures high contrast and visibility, while the low standby power consumption of 2W contributes to energy-efficient operation.
Constructed from a bulk moulding compound body combined with a durable polycarbonate cover, the fitting offers excellent resistance to corrosion, mechanical stress, and environmental degradation. The IP66 rating provides complete protection against dust ingress and powerful water jets, while the IK10 impact rating ensures resistance to vandalism and physical impact. The luminaire operates reliably across a wide ambient temperature range from -20°C to +60°C, making it suitable for demanding industrial environments.
The unit incorporates an advanced Synthium battery system with a 10 year design life, supported by an intelligent 3-stage charger and comprehensive protection features including overcharge, low voltage disconnect, overcurrent, and short circuit protection. Designed for ease of installation, it features a large terminal block with 20mm² cable entry and is intended for surface mounting in single-sided wall applications. With integrated testing functionality, status indicators, and compliance with AS/NZS emergency lighting standards, this exit sign provides a dependable and high-performance emergency lighting solution backed by a 5 year warranty.
COLOUR: Green, white and clear
MATERIAL: Bulk moulding compound body and polycarbonate cover
DIMENSIONS: 475.2mm (length) x 199mm (height) x 97.5mm (projection)
IP RATING: IP66 (fully weatherproof)
IK RATING: IK10 (impact and vandal proof)
GLOBE: LED (includes fixed LED chips in fitting)
LIFE SPAN: 100,000 hours
BATTERY: Advanced Synthium battery with 10 year design life
OPERATION: Maintained
AMBIENT TEMP: -20°C to +60°C
WEIGHT: 1.2kg
WATTAGE: 2W (standby)
VOLTAGE: 230VAC 50Hz
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted wall (single side application only)
RELATIVE HUMIDITY: 0 to 95%
APPLICATIONS: Zone 1 / 21 hazardous areas
EMERGENCY DURATION: >120 minutes
CHARGER: Intelligent 3-stage charger with Synthium battery management system
PROTECTION FEATURES: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charging green LED
VIEWING DISTANCE: 24m
FEATURES: Central locking mechanism; temperature compensation technology; low energy consumption; long life electronics
COMPLIANCE: IECEx Ex db mb eb op is q IIC T5/T6 Gb; Ex op is tb IIIC 80°C/100°C Gb IP66; RCM/EMC; AS/NZS 2293.1; AS/NZS 60598.1
WARRANTY: 5 years
