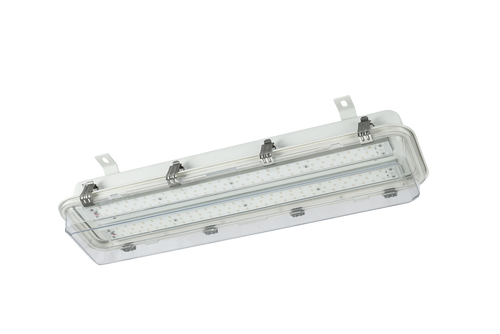

This commercial grade batten light is engineered for hazardous area applications where reliability, durability, and safety are critical. Designed with explosion-proof certification, it complies with IECEx standards and incorporates advanced protection methods suitable for environments containing flammable gases and combustible dust. The robust construction ensures stable operation under demanding industrial conditions while maintaining consistent photometric performance.
The luminaire delivers a high-output luminous flux of 2500lm at a colour temperature of 5000K, producing a crisp daylight white illumination that enhances visibility and operational accuracy. The integrated LED system operates at 20W, offering high efficacy and reduced energy consumption compared to conventional lighting technologies. The clear diffuser ensures efficient light transmission while maintaining uniform distribution across the illuminated area.
Constructed from a fiberglass-reinforced polycarbonate diffuser and a fiber reinforced plastic chassis, the fitting is built to withstand mechanical stress, corrosive environments, and prolonged exposure to harsh weather. With an IP66 rating, it provides complete protection against dust ingress and powerful water jets, while the IK10 rating ensures resistance to impact and vandalism, making it suitable for heavy-duty industrial installations.
The unit is designed for straightforward installation with a large terminal block supporting up to 20mm² cable entry, allowing secure electrical connections in high-load applications. Suitable for both ceiling and wall mounting, it accommodates various installation configurations, with optional suspension or pole mounting accessories available. Operating reliably across an ambient temperature range of -40°C to +50°C and humidity levels up to 95%, this luminaire offers a dependable and long-lasting lighting solution backed by a 5-year warranty.
COLOUR: Clear
DIMENSIONS: 711mm (length) x 206.5mm (depth) x 140mm (height)
MATERIAL: Fiberglass-reinforced polycarbonate diffuser, fiber reinforced plastic chassis
IP RATING: IP66 (fully weatherproof)
IK RATING: IK10 (impact and vandal proof)
LUMENS: 2500lm
COLOUR TEMP: 5000K (daylight white)
GLOBE: LED (includes fixed LED chips in fitting)
WATTAGE: 20W
VOLTAGE: 230VAC 50Hz
WEIGHT: 8kg
INSTALLATION: Large terminal block, 20mm² cable entry
MOUNTING: Surface mounted ceiling/wall (suspension kit or pole mount bracket available separately)
AMBIENT TEMP: -40°C to +50°C
OPERATION: Standard mains operation
RELATIVE HUMIDITY: 0 to 95%
FEATURES: 3G vibration resistance; 1200 hours salt spray tested
COMPLIANCE: IECEx CSAE 24.0002X; Ex db eb mb IIC T6/T5 Gb; Ex tb IIIC T80°C/T95°C Db; RCM/EMC; AS/NZS 60598.1
WARRANTY: 5 years
