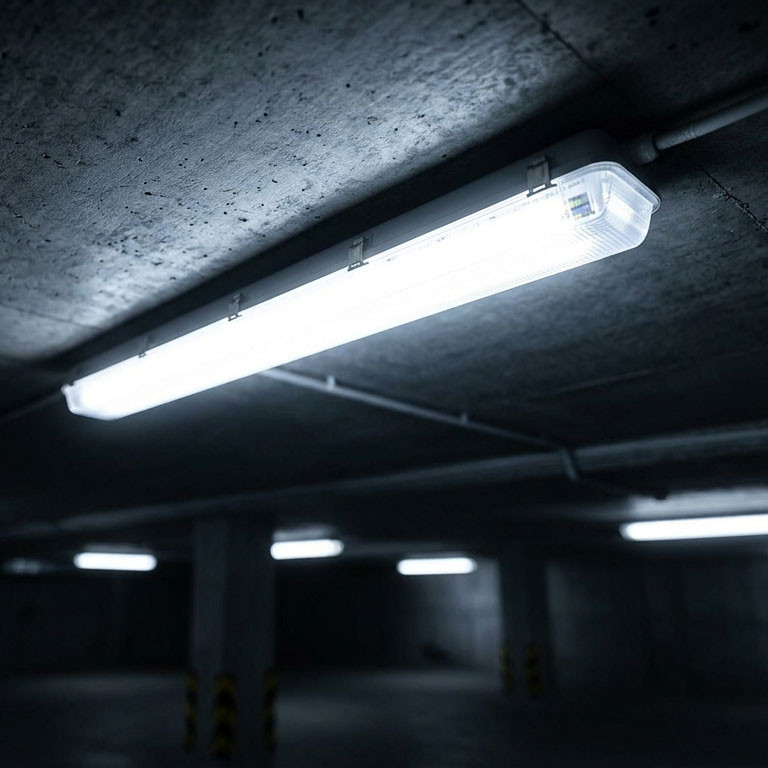

This commercial grade emergency batten light is engineered to provide reliable general illumination with integrated backup functionality for applications where continuity of lighting is critical. Designed for demanding commercial and industrial environments, the luminaire is rated to IP65 (fully weatherproof) and IK08 (impact and vandal resistant), delivering robust protection against dust ingress, water exposure, and mechanical impact. Its Class I electrical classification supports safe operation when connected to earth, making it suitable for use across a wide range of indoor and outdoor installations where durability, safety, and compliance are essential.
The integrated solid-state light source utilises fixed LED chips to provide stable and energy-efficient illumination without the need for replaceable globes. Selectable colour temperature options of 3000K (warm white), 4000K (cool white), and 6000K (daylight white) enable adaptation of the lighting environment to suit functional requirements and visual comfort across different settings. A colour rendering index of >80 ensures accurate colour perception in workspaces and public areas, while the luminaire is specified as not dimmable to maintain consistent optical performance under standard operating conditions.
Operational flexibility is achieved through a dual power selectable configuration, allowing the fitting to operate at 20W or 40W to balance energy consumption with required illumination levels. At optimal configuration, the luminaire delivers up to 4800lm at 4000K (cool white), with corresponding outputs of 4400lm at 3000K (warm white) and 6000K (daylight white). A wide 120° beam angle supports uniform light distribution across broad surface areas, reducing shadowing and providing effective ambient illumination in circulation spaces and open-plan environments.
The luminaire incorporates an emergency battery backup system delivering 2.5W for up to 6 hours, ensuring essential lighting continuity during power interruptions and enhancing overall site safety. The streamlined housing measures 1260mm (length) x 117mm (width) x 79mm (height), enabling straightforward integration into surface-mounted lighting layouts, while the inclusion of a large terminal block for easy installation facilitates secure and efficient electrical termination. Backed by a 3 years warranty, this fitting represents a durable, professionally specified emergency lighting solution designed for long-term performance in demanding commercial and industrial applications.
COLOUR: White
DIMENSIONS: 1260mm (length) x 117mm (width) x 79mm (height)
IP RATING: IP65 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
CLASSIFICATION: Class I
WATTAGE: 20W / 40W (dual power selectable)
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 6000K (daylight white)
LUMENS: 4400lm (3000K), 4800lm (4000K), 4400lm (6000K)
DIMMABLE: No
CRI: >80
BEAM ANGLE: 120°
FEATURES: Emergency battery backup (2.5W for 6 hours)
APPLICATIONS: Indoor and outdoor use
INSTALLATION: Large terminal block for easy installation
WARRANTY: 3 years
