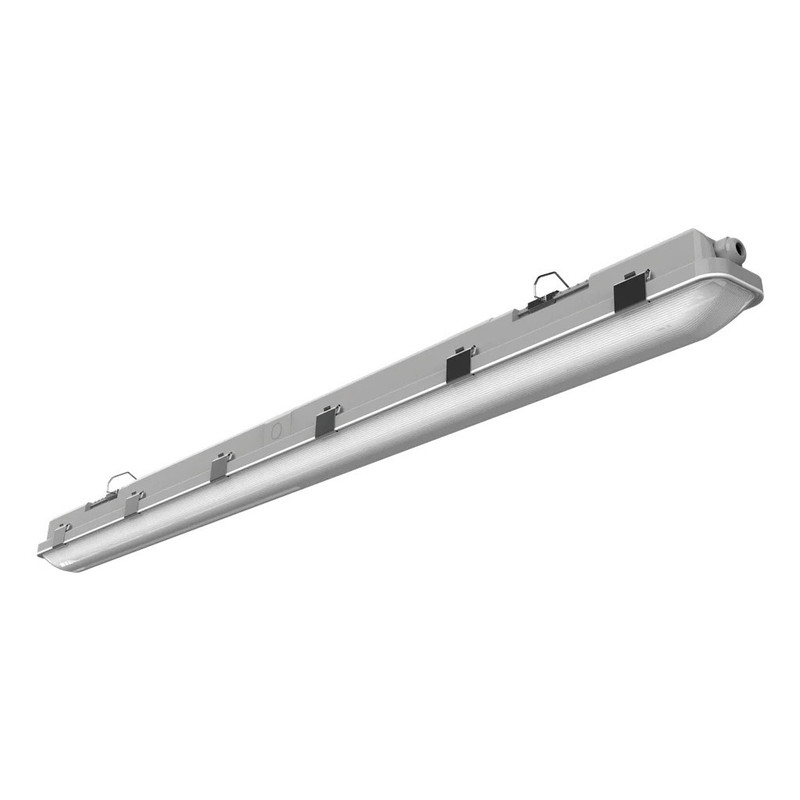

This emergency batten light is engineered as a high-performance replacement for traditional fluorescent battens, providing a robust and reliable solution for both commercial and domestic environments. With a body length of 1165mm, this luminaire delivers a powerful 4800 lumens output at 4000K cool white, ensuring clear and uniform illumination. Its advanced SMD LED technology is fixed within the fitting, guaranteeing a stable light source with a wide 120° beam angle, offering excellent coverage in basements, carparks, garages, and construction sites.
Constructed from a durable polycarbonate body combined with a frosted polycarbonate diffuser, the batten is designed to withstand demanding conditions while maintaining consistent optical performance. The fixture achieves an IP66 rating, making it fully weatherproof, and an IK08 impact rating, providing resistance against shocks and vandalism. Its slim dimensions of 1165mm x 75mm x 80.6mm ensure a compact yet efficient profile, with surface-mounted or suspended installation options to accommodate different site requirements.
The integrated emergency function is supported by a LiFePO4 6.4V battery with 1500mAh capacity, engineered for reliability and safety. With a 7-hour charging cycle and a discharge duration of up to 120 minutes, the batten ensures continued illumination during power outages in either non-maintained or maintained modes. It is fully compliant with AS/NZS 2293 standards and classified to C0: D50 and C90: D32, underscoring its suitability for critical safety and compliance lighting installations. The fitting also includes a 1m, 3-pin flex and plug with stainless steel clips for rapid and secure mounting.
Designed for longevity and low maintenance, this emergency batten light offers a 50,000-hour lifespan and a high colour rendering index (CRI ≥80), ensuring accurate visibility of surroundings. Operating within a temperature range of 0° to 45°, it is ideal for diverse applications in both indoor and outdoor environments. Backed by a 3-year replacement warranty, this batten provides a cost-effective, energy-efficient, and durable solution for projects requiring dependable emergency and temporary lighting.
COLOUR: White
MATERIAL: Polycarbonate body, frosted polycarbonate diffuser
DIMENSIONS: 1165mm x 75mm x 80.6mm
VOLTAGE: 240V AC
WATTAGE: 40W
IP RATING: IP66 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 4000K (cool white)
LUMENS: 4800lm
LED TYPE: SMD
CRI: ≥80
BEAM ANGLE: 120°
DIMMABLE: No
LIFE SPAN: 50,000 hours
AMBIENT TEMP: 0°C to 45°C
INCLUDES: 1000mm, 3-pin flex and plug; stainless steel clips
MOUNTING: Surface mounted or suspended
COMPLIANCE: Fully compliant to AS/NZS 2293
BATTERY: LiFePO4, 6.4V, 1500mAh at 0.2CmA, 7-hour charging time, 1.5-hour discharging time
EMERGENCY: Non-maintained / maintained
DURATION: Rated for 120 min
CLASSIFICATION: C0: D50, C90: D32
WARRANTY: 3 years (replacement)
