This LED driver is engineered to deliver stable and reliable performance for low-voltage lighting systems requiring a constant 24V DC output. Designed with a 500W power rating, it provides consistent current regulation of 20.84A, making it highly suitable for LED strip lighting, inground uplighters, and outdoor spike lights. Its robust construction ensures uninterrupted operation even under demanding conditions, guaranteeing dependable functionality in both residential and commercial applications.

The driver operates from a standard 240V AC input and is configured as a non-dimmable unit to ensure steady illumination without flicker or instability. With an electrical efficiency of up to 89% and a power factor greater than 0.95, it minimises energy losses while maintaining precise voltage conversion, reducing operating costs and enhancing the service life of connected LED systems. Compact in form at 290mm x 89mm x 43mm and weighing 2500g, it combines easy handling with dependable electrical performance.

Built for outdoor performance, this LED driver carries an IP67 rating, providing complete protection against dust ingress and allowing safe immersion in water up to one metre depth. It is engineered for reliability in harsh conditions, functioning within a wide ambient temperature range from -40°C to +60°C and tolerating relative humidity levels between 20-90% (non-condensing). The inclusion of a 1m flex and plug further simplifies integration into new or existing lighting installations, ensuring both speed and convenience for contractors and installers.

For long-term safety and protection, the driver incorporates advanced safeguards, including secondary side short circuit protection, thermal overload prevention, over temperature protection, and over voltage resistance. These integrated defences protect both the driver and connected luminaires from electrical stress or damage. Backed by a 5 year replacement warranty, this LED driver delivers proven durability and peace of mind. IMPORTANT: please ensure you contact our staff to confirm whether this accessory is compatible with the product you purchased. Accessories are non-returnable if purchased without confirming compatibility.

OUTPUT VOLTAGE: 24V DC
INPUT VOLTAGE: 240V AC
WATTAGE: 500W
OUTPUT CURRENT: 20.84A
DIMMABLE: No
IP RATING: IP67 (waterproof, can be immersed in water to 1m)
EFFICIENCY: Up to 89%
POWER FACTOR: >0.95
WEIGHT: 2500g
AMBIENT TEMP: -40°C to +60°C

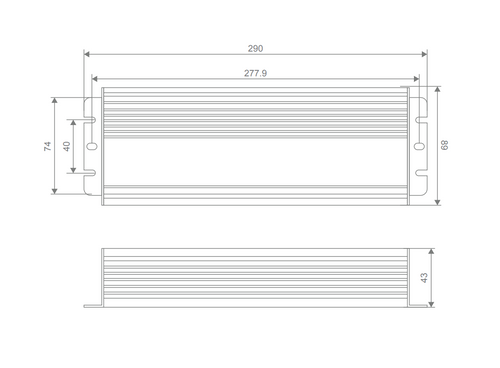

DIMENSIONS: 290mm x 89mm x 43mm
WORKING HUMIDITY: 20-90% RH (non-condensing)
INCLUDES: 1m flex and plug
PROTECTION: Secondary side short circuit protection; thermal overload protection; over temperature protection; over voltage protection
WARRANTY: 5 years (replacement)
