This ceiling fan is engineered as a high-efficiency air circulation and illumination solution for contemporary residential interiors and covered outdoor environments. Driven by a precision-balanced 40W DC motor, the unit achieves rotational speeds of up to 240 RPM while maintaining exceptionally low power consumption and stable aerodynamic output. The three solid timber blades operate across a 1066mm sweep and are optimised with an 8° blade pitch to produce smooth, consistent airflow across all six electronically regulated speed settings.
The integrated 20W fixed LED lighting system delivers up to 2120lm with variable colour temperature control spanning from a warm 2700K through to a crisp 6000K daylight output. The PMMA lens ensures uniform light diffusion with reduced glare, while the variable dimming function enables precise illumination control for both ambient and task-based lighting environments. The rated LED lifespan of 35,000 operating hours at Ta25°C ensures long-term photometric stability and minimal maintenance.
Structural integrity is provided by a slimline steel body and canopy finished in matt black, complemented by walnut solid timber blades engineered for dimensional stability and reduced vibration. The 154mm ceiling canopy and 15° hangsure configuration allow secure installation across standard flat and mildly raked ceilings, while the overall installed height of 395mm maintains efficient air displacement without excessive vertical projection.
Control functionality is delivered via an integrated WiFi and RF remote system supporting six fan speeds, summer and winter reverse cycling, breeze and sleep modes, variable CCT selection, independent light and fan operation, and programmable 1-, 4-, and 8-hour timer functions. The fan is compatible with the Smart Life application for mobile control and is designed for permanent connection to 220-240V AC supply. Installation must be carried out by a licensed electrician and is supported by a comprehensive 6-year warranty covering in-home service and motor replacement.
COLOUR: Matt Black and Walnut
MATERIAL: Solid timber (blades), Steel (body and canopy), PMMA (lens cover)
BLADES: 3
BLADE SPAN: 1066mm (42 inch)
BLADE PITCH: 8°
HANGSURE CANOPY: 15°
HEIGHT: 395mm
CEILING CANOPY: 154mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 40W
RPM: Up to 240
AIRFLOW EFFICIENCY: Up to 269m³/hr per watt
AIRFLOW: 8540m³/hr (Speed 6); 7995m³/hr (Speed 5); 7100m³/hr (Speed 4); 6250m³/hr (Speed 3); 5265m³/hr (Speed 2); 4120m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 20W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (daylight white), 6000K (daylight white)
LUMENS: Up to 2120lm
LIFE SPAN: 35,000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)

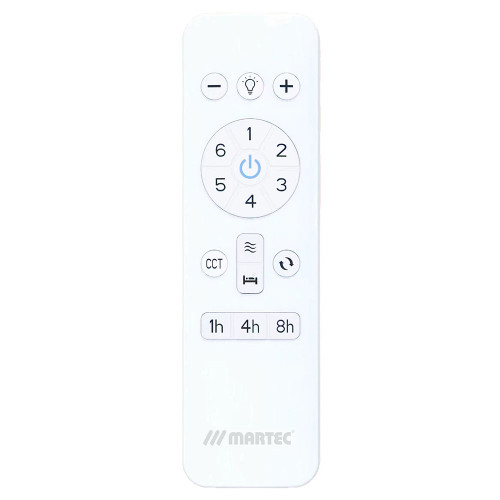

REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze; sleep; light on/off; fan off; CCT selection; timer off only - 1hr / 4hr / 8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 × A23 12V battery
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; slimline design; variable CCT; dimmable LED
REQUIREMENTS: WiFi
WARRANTY: 6 year warranty (3 year in-home + additional 3 year motor replacement)
