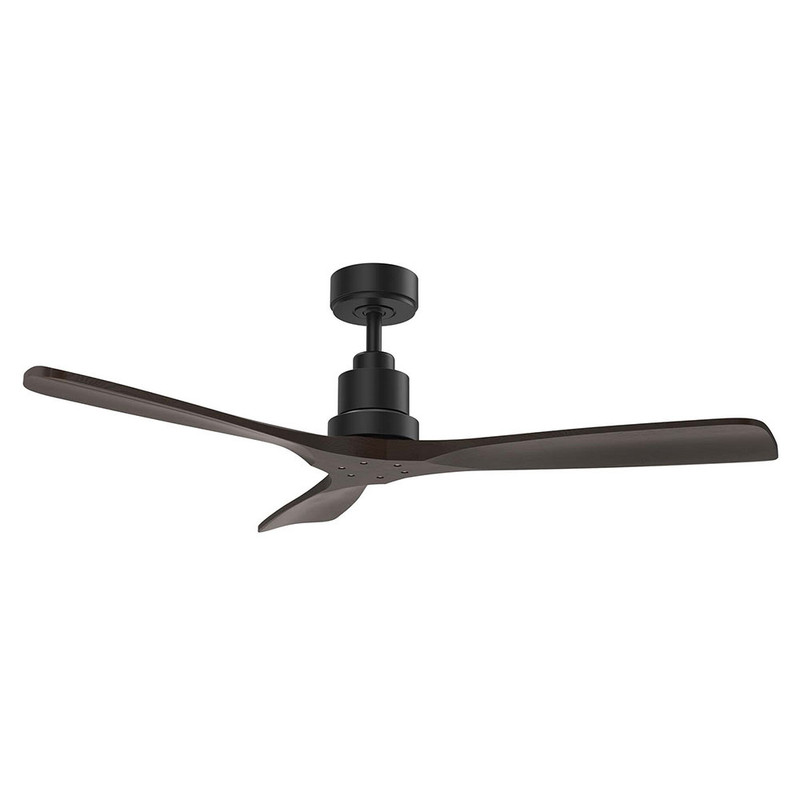

This ceiling fan is engineered as a high-efficiency air circulation solution for contemporary residential interiors and covered outdoor environments. Driven by a precision-balanced 40W DC motor, the unit operates at rotational speeds of up to 200 RPM while maintaining low power consumption and stable mechanical output. The three solid timber blades span 1320mm and are optimised with an 8° blade pitch to generate smooth, consistent airflow across all six electronically regulated speed settings.
The aerodynamic blade geometry and digitally controlled DC motor work in unison to deliver reliable volumetric airflow performance with an efficiency of up to 269m³/hr per watt. At maximum output, the fan provides up to 8540m³/hr of airflow, ensuring effective thermal comfort in both enclosed and semi-open living spaces while maintaining low operational noise and vibration.
Structural integrity is achieved through a slimline steel body and canopy finished in matt black, paired with walnut solid timber blades engineered for dimensional stability and reduced harmonic resonance. The 154mm ceiling canopy and 15° hangsure configuration ensure secure mounting, while the overall installed height of 345mm supports efficient vertical air displacement without excessive ceiling drop.
Control functionality is delivered via an integrated WiFi and RF remote platform supporting six fan speeds, summer and winter reverse operation, breeze and sleep modes, and programmable timer off functions at 1, 4, or 8 hours. The fan is compatible with the Smart Life mobile application and is designed for permanent connection to a 220-240V AC power supply. Installation must be carried out by a licensed electrician and is supported by a comprehensive 6-year warranty covering in-home service and motor replacement.
COLOUR: Matt Black and Walnut
MATERIAL: Solid timber (blades), Steel (body and canopy)
BLADES: 3

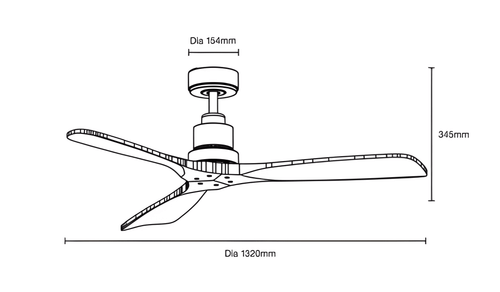

BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 8°
HANGSURE CANOPY: 15°
HEIGHT: 345mm
CEILING CANOPY: 154mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 40W
RPM: Up to 200
AIRFLOW EFFICIENCY: Up to 269m³/hr per watt
AIRFLOW: 8540m³/hr (Speed 6); 7995m³/hr (Speed 5); 7100m³/hr (Speed 4); 6250m³/hr (Speed 3); 5265m³/hr (Speed 2); 4120m³/hr (Speed 1)

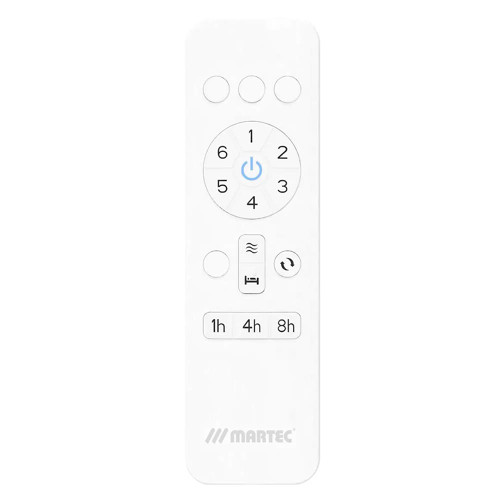

REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze; sleep; fan off; timer off only - 1hr / 4hr / 8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 × A23 12V battery
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; slimline design
REQUIREMENTS: WiFi
WARRANTY: 6 year warranty (3 year in-home + additional 3 year motor replacement)
