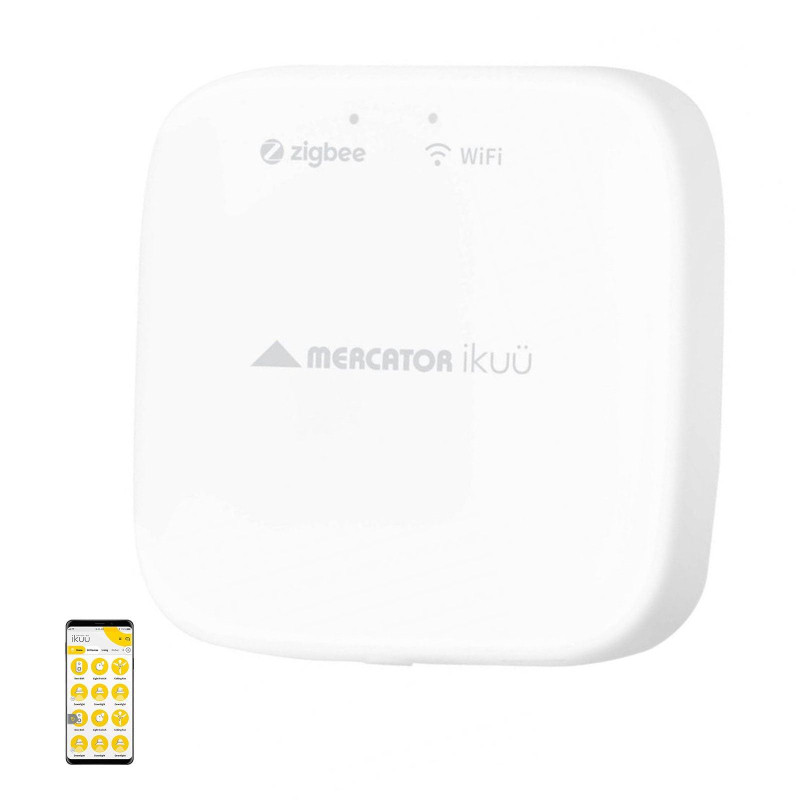

This smart hub is a compact network coordination device engineered to provide reliable Zigbee 3.0 connectivity for smart lighting and automation systems in residential and light commercial environments. Operating over a 2.4GHz wireless network, the unit enables stable communication between connected devices within a Zigbee mesh network, supporting coordinated control and efficient data transmission for up to 50 devices. The implementation of IEEE 802.15.4 wireless networking facilitates consistent performance and scalable network expansion within compatible installations.
The enclosure is constructed from durable polycarbonate and ABS materials to support long-term indoor operation. With compact dimensions of 62mm x 62mm x 15mm, the hub can be discreetly installed near network equipment or within concealed locations without obstructing surrounding infrastructure. The IP20 rating defines suitability for indoor environments where protection from moisture and dust ingress is not required.
Power is supplied via a 5V DC input with a maximum power consumption of 5W, supporting continuous operation with low energy demand. The unit incorporates a Micro-B USB port for power delivery and is supplied with a compatible USB Type-A to Micro-B cable, enabling straightforward installation without additional components. The compact power requirements make the hub suitable for continuous operation in home and light commercial networks.
As a network coordination accessory, this smart hub enables mesh networking to extend wireless coverage and supports local control of connected Zigbee devices for improved reliability and responsiveness. IMPORTANT: please ensure you contact our staff to confirm whether this accessory is compatible with the product you purchased. Accessories are non-returnable if purchased without confirming compatibility.
COLOUR: White
IP RATING: IP20 (indoors only)
MATERIAL: Polycarbonate and ABS
DIMENSIONS: 62mm x 62mm x 15mm
VOLTAGE: 5V DC
WATTAGE: 5W
USB PORT: Micro-B
USB CABLE: USB Type-A to Micro-B (male-male)
PROTOCOL: Zigbee 3.0
NETWORK PROTOCOL: IEEE 802.15.4
WIRELESS FREQUENCY: 2.4GHz
CONNECTIONS SUPPORTED: Up to 50
FEATURES: Mesh networking for extended coverage; supports pairing of Zigbee devices; supports local control of connected Zigbee devices
INCLUDES: USB power cable
REQUIREMENTS: Existing 2.4GHz WiFi network; internet router; mobile device running iOS or Android
WARRANTY: 3 years
