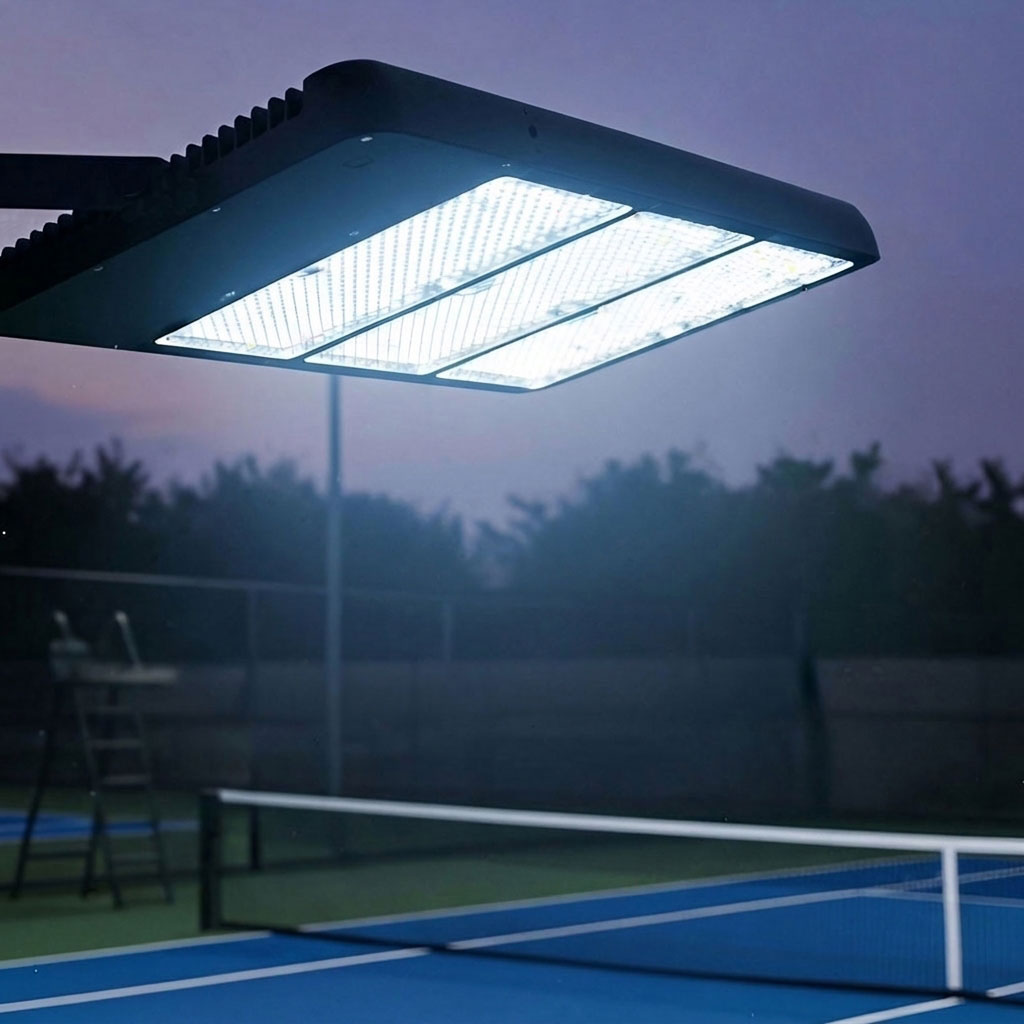

This commercial grade tennis court light delivers powerful, competition-ready illumination engineered for players who demand clarity, consistency and performance. With an output of up to 90,000 lumens and selectable power settings of 600W, 480W or 360W, it provides a highly efficient lighting solution that can be tailored to different courts and number of poles. The neutral 4000K colour temperature produces a crisp, natural white light that enhances visibility of the ball, lines and court surface, while a CRI of 80 ensures colours appear accurate and true to life. High-brightness fixed LED chips, a premium integrated driver and a 5-year warranty work together to deliver long-term confidence and reduced maintenance over a rated 50,000-hour lifespan.
Optically, this fitting is designed to maximise on-court performance and player comfort. The tailored Type III asymmetrical beam pattern combines a wide beam angle with carefully engineered low-glare characteristics, helping to reduce eye strain and glare while maintaining excellent light uniformity across both singles and doubles court layouts. This advanced beam control minimises shadows and hot spots, supporting consistent visibility from baseline to net and corner to corner, and makes the luminaire highly suitable for training and competition environments alike. Adjustable wattage allows you to fine-tune brightness, with a typical configuration of four units on high output or six units at lower output on a standard court, and for competition-grade installations it pairs perfectly with a professional lighting design to verify target lux levels and compliance.
The housing is built for outdoor performance and durability, providing reliable operation in demanding sporting environments. A robust metal body combined with a shatterproof polycarbonate lens achieves IK08 impact resistance, offering strong protection against ball hits and incidental mechanical shocks. The anti-corrosion coating ensures the fitting maintains performance and appearance in exposed conditions, while the IP65 rating provides full protection against dust and rain for year-round use in all weather. Operating reliably from -20°C to +45°C, and finished in a sleek black, the luminaire delivers a professional, unobtrusive aesthetic that integrates seamlessly with modern court infrastructure.
Installation is designed to be straightforward, precise and adaptable. The light includes an integrated LED driver and an adjustable mounting system suitable for 60mm vertical round posts, offering approximately 90° of vertical aiming to accurately direct light where it is needed most. Each unit is supplied with a detailed installation manual, and photometric data is available on request to support consultants, installers and facility managers.
We understand the importance of reliability and peace of mind, which is why all our tennis lights come with an extended 5-year warranty. Keep right away from cheaper tennis court lights by other suppliers with a warranty less than 5 years - this is indicative of low quality and high failure rate. Our tennis lights are all backed by an extended 5 year warranty, so unlike cheaper alternatives, our lights are built to last, backed by a commitment to quality and customer satisfaction.
Illuminate your court with confidence and precision. Upgrade to our tennis court light today and experience the ultimate in performance and longevity. Transform your tennis court into a beacon of brilliance, where every match shines bright and every player performs at their best.
Note: a competition-grade tennis court light is expected to have minimum 50,000 lumens - this light has a range of between 54,000 to 90,000 lumens.
TYPE: Tennis Court Light - Commercial Grade
COMPETITION LEVEL: Yes (for competition level recommend to be used in conduction with a lighting design)
COLOUR TEMP: 4000K
WARRANTY: 5 years
GLOBE: High brightness fixed LED chips
LED DRIVER: Included
TOP MOUNT: Includes an adjustable mount that will fit over the top of a 60mm vertical round post (with 90° up-down mobility)
SIDE MOUNT: Includes a mount that will fit on the side of a straight post (with 90° up-down mobility) - the mount is 80mm wide with screws in the middle (so post can be less than 80mm)
MATERIAL: Metal housing with shatterproof polycarbonate lens cover
COATING: Anti-Corrosion coating surface
COLOUR: Black
CRI: 80
SIZE: 1009mm L x 462mm W x 159mm H
LIFESPAN: 50,000 Hours
SHATTERPROOF: Yes (IK08 rated)
WATTAGE: 600W / 480W / 360 W (selectable to give variable brightness)
LUMENS: 54,000 lm / 72,000 lm / 90,000lm
VOLTAGE: 220V-240V AC 50HZ
IP RATING: IP65 (fully weatherproof)
IK RATING: IK08 (impact proof)
BEAM ANGLE: Wide beam angle and low glare - TYPE III - with tailored asymmetrical beam angle
WORKING TEMP: -20°C to +45°C
POST: If you require a post for this light, please contact us for suppliers and requirements

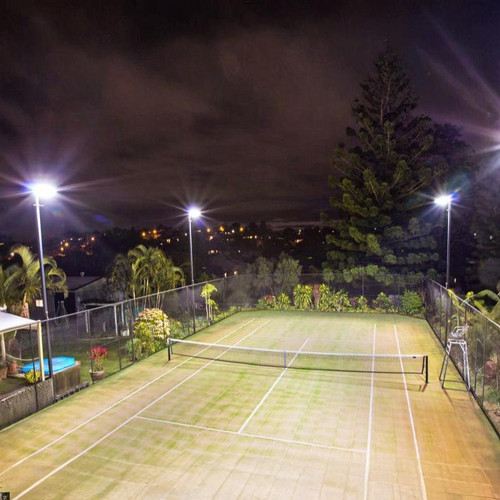

RESIDENTIAL: For a residential court, we recommend 4 of these lights at high brightness, or 6 at lower brightness
COMPETITION: For a competition court, we recommend 8-12 of these lights
MOUNTING HEIGHT: For residential we recommend 6-8m, for competition and commercial we recommend 9-12m, for stadiums 12-18m
INSTRUCTIONS: This unit comes with a detailed installation manual
PHOTOMETRIC: Photometric data available upon request
LIGHTING DESIGN: We can arrange a lighting design to confirm lumens compliance across the court surface (this is optional, and at cost)
OPTIONAL: U-bracket accessory (contact us if required)
