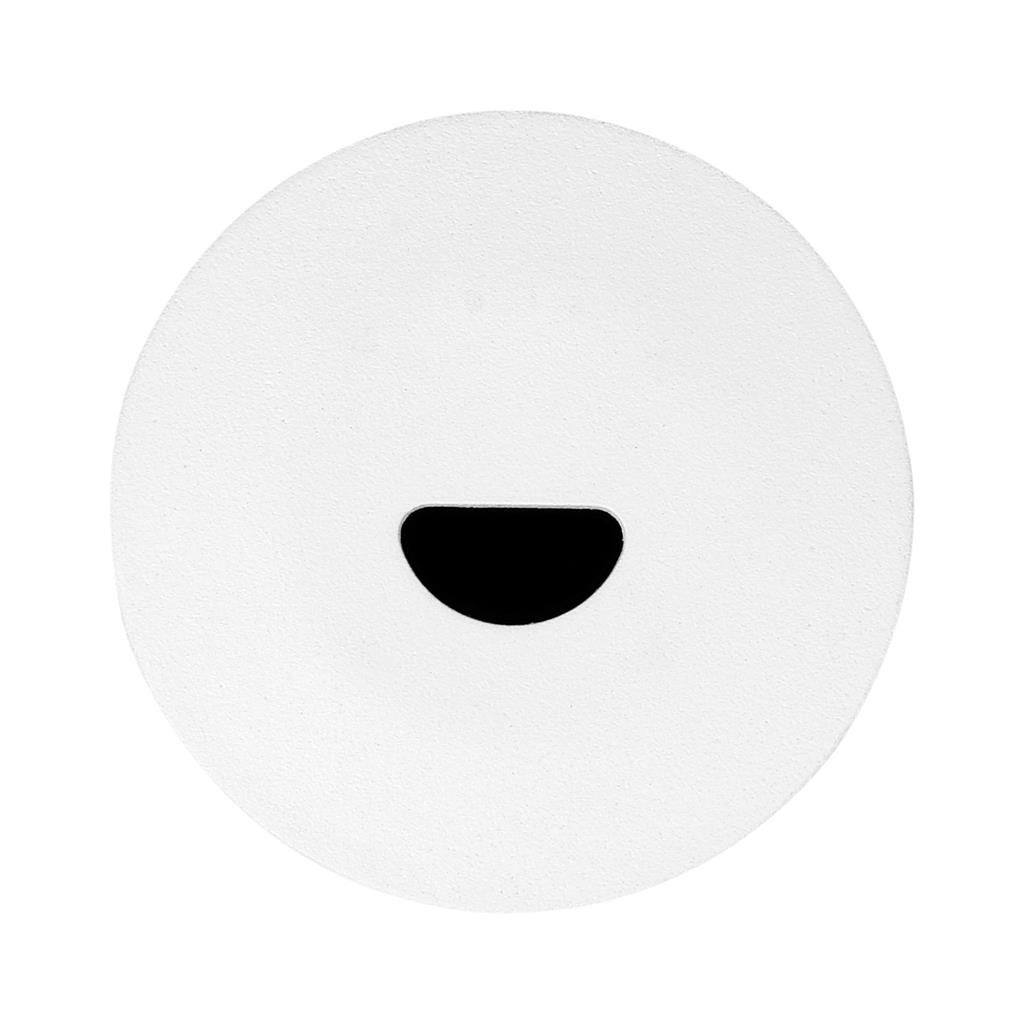

This step light is a refined recessed luminaire designed to blend with modern architectural environments. Featuring a round white die-cast aluminium frame with an asymmetrical cutout, it delivers a directional light spread ideal for low-level illumination in both indoor and sheltered outdoor settings. With an IP54 weather-resistant rating, this fitting is suited for corridors, stairwells, and pathway installations where subtle guidance lighting is required without disrupting the overall aesthetic.
The integrated 3W COB LED module supports Tri-CCT technology, allowing users to switch between 3000K (warm white), 4000K (cool white), and 5000K (daylight white) based on preference or site requirements. Its highest output reaches 73 lumens at 4000K, providing a consistent and energy-efficient light source suitable for ambient or navigational use. The asymmetrical 20° beam angle directs illumination effectively across surface planes without producing excessive glare.
The fitting achieves a high colour rendering index of ≥90, ensuring colour fidelity in the illuminated area. Designed for long-term use, the unit offers a rated lifespan of 50,000 hours and is fully dimmable when paired with compatible control systems. The fixed LED design ensures efficient heat dissipation and minimal maintenance over its operational lifetime, while the recessed profile supports a discreet, integrated look on most surfaces.
With a cutout requirement of 45mm and a body depth of 35.4mm, this step light installs flush into walls or bulkheads. It includes a dimmable 240V LED driver for direct mains installation and is backed by a 3-year replacement warranty. This luminaire offers a dependable and architecturally clean solution for ambient pathway and safety lighting.
COLOUR: White
MATERIAL: Die-cast aluminium
IP RATING: IP54 (weather-resistant)
DIMENSIONS: 55mm (diameter) x 35.4mm (depth)
CUTOUT: 45mm
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: Switchable 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 62lm (3000K), 73lm (4000K), 66lm (5000K)
LED TYPE: COB
LED WATTAGE: 3W
VOLTAGE: 240V
CRI: ≥90
BEAM ANGLE: 20° (asymmetric)
LIFE SPAN: 50,000 hours
DIMMABLE: Yes
MOUNTING: Recessed
INCLUDES: Dimmable LED driver (240V)
WARRANTY: 3 years (replacement)
