This commercial grade solar pedestrian sign offers an advanced, motion-activated solution for enhancing safety and visibility in high-traffic areas. Designed to meet Australian Standard AS1906.1, this sign is ideal for roadways, car parks, truck depots, railways, construction zones, and other demanding environments. The ultra-bright synchronised animation of the pedestrian sign ensures exceptional visibility even in low-light conditions - up to 1km away. The system’s design integrates solar panels, rechargeable lithium-ion batteries, and a pedestrian crossing sign, eliminating the need for external power sources while maintaining reliability and sustainability.
The sign face features a 600mm diameter with Class One reflective material, finished in a yellow and black design for maximum visibility. The solar panel delivers 80W of power to the 60Ah batteries, providing an impressive autonomy of over five nights, depending on settings. The system recharges fully within six hours under optimal sunlight conditions, making it highly efficient for continuous operation. With a recommended mounting height of 2.1 to 3 meters, this pedestrian sign is versatile and suitable for various installation scenarios.
Engineered for simplicity and durability, this solution boasts an IP65 weatherproof rating, allowing it to perform reliably in harsh outdoor conditions with operating temperatures ranging from 0°C to 70°C. The sign features a plug-and-play design for straightforward installation, requiring only standard posts.
This innovative solar-powered system is a cost-effective and eco-friendly alternative to traditional pedestrian signage. By combining high-performance lighting technology with renewable energy, it provides a dependable, low-maintenance safety solution. Whether used in industrial, urban, or remote locations, this solar pedestrian sign delivers unparalleled functionality and resilience, backed by a two-year warranty for workmanship and component quality.
The entire sign face is backlit illuminated. High output LEDs border the class one 3M reflective sign face which become animated on activation.
Note: The specifications listed is for the standard model. We offer extensive customization options upon request - please contact us if you require a tailored solution.

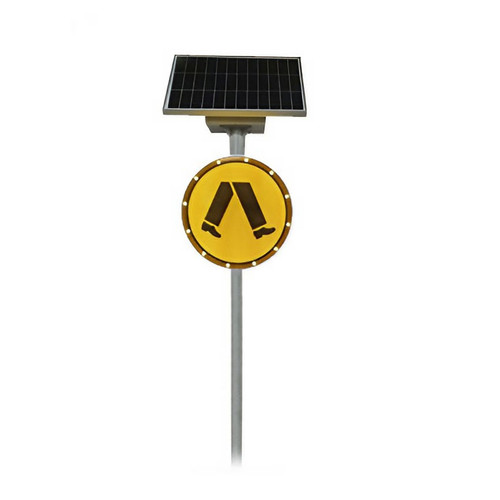

PRODUCT: Back Lit Edge Lit Solar Pedestrian Sign - Motion Activated
SYNCHRONIZED: If required, two signs can be wirelessly paired so that motion sensor on one side will trigger the solar lights on both sides of the road (to 150m)
LIGHTING: Back lit sign (i.e. the sign glows) and edge lit signs (i.e. the outer rim of the sign has LEDs on it)
INCLUDES: Solar panel, rechargeable battery, pedestrian crossing sign, backlit pedestrian crossing sign, wireless communication
ACTIVATION: Automatically activated by approaching pedestrian via PIR motion sensor - triggers the synchronised animation of the pedestrian sign edge lit LEDs with visibility up to 1km
APPLICATIONS: Roadways, car parks, truck depots, railways, construction zones, paths, distribution centers, factories
STANDARD: Sign manufactured to Australian standard AS1906.1 and visible up to 1km away
SIGN FACE: 600mm (diameter) class one reflective (it will come with the Pedestrian Crossing sign unless requested otherwise)
COLOUR: Yellow and black
SOLAR PANEL: 80W
BATTERY TYPE: 60Ah 12V 720Wh (Lithium Iron Phosphate)
AUTONOMY: >5 Nights, setting dependent
LIGHT SOURCE: SMD LED
RECHARGE: 6 Hours
MOUNTING HEIGHT: 2.1 - 3m (recommended)
WARRANTY: 2 years (for faulty workmanship or component failure not influenced by external means)
IP RATING: IP65 (weatherproof)
ILLUMINATION: The entire sign face is backlit illuminated.
POWER: All component modules are solar powered and fully wireless (no 240V or 12V required)
INSTALLATION: Simple plug and play
MOUNTING: Attaches to any standard metal circa 76-90mm outer diameter (not included, contact us if required)
POST: Optional baseplated, inground or relocatable post available (see ‘Show Posts and Accessories’ below)
AMBIENT TEMP: Operating free-air temperature range from 0°C to 70°C
