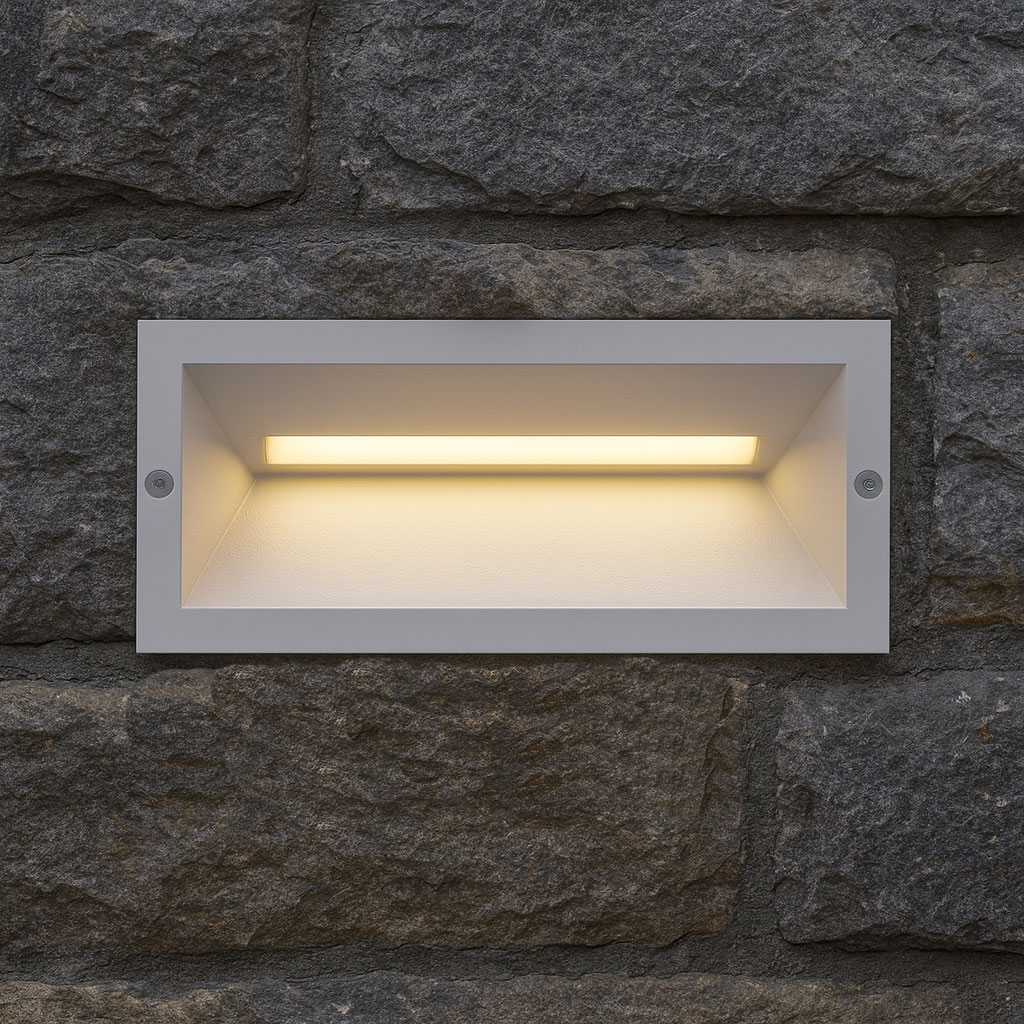

This outdoor wall light is a high-performance recessed illumination solution engineered for durability and versatility in exterior architectural applications. The assembly features a high-grade polycarbonate diffuser and sleeve, providing a uniform light distribution while maintaining an IP65 ingress protection rating, which guarantees complete protection against all terrain weather.
Technically advanced, this luminaire incorporates a Color Temperature (CCT) switch located inside the fitting, allowing users to select between 3000K warm white, 4000K cool white, and 6500K daylight white settings. Depending on the selected color temperature, the 13W system delivers a luminous flux ranging from 267lm to 639lm, ensuring precise lighting levels for various safety and aesthetic requirements. With a Color Rendering Index (CRI) exceeding 80, the light source provides accurate color representation across its 67-degree or 108-degree beam angles.
The electrical architecture is designed for broad compatibility, operating on a voltage range of 100-240V AC at 50/60Hz with an included internal driver. The unit is engineered for longevity with a rated life span of 30,000 hours and is capable of operating in ambient temperatures ranging from -20 to 50°C. Furthermore, the circuitry is suitable for two-way switching and is fully compatible with external PIR or microwave sensors, making it an ideal component for automated security and utility lighting systems.
Installation is streamlined through a recessed mounting design with specific cutout dimensions of 227mm in length, 76mm in width, and 78mm in depth. The external dimensions of the faceplate measure 250mm by 98mm, providing a sleek and low-profile finish on exterior wall surfaces. Backed by a three-year replacement warranty, this professional-grade lighting fixture represents a reliable and energy-efficient choice for modern residential and commercial outdoor environments.
TYPE: Outdoor Wall Light
WARRANTY: 3 year replacement warranty
GLOBE TYPE: LED (fixed chips)
GLOBE INCLUDED: Yes
DIMMABLE: No
COLOUR TEMP: 3000K / 4000K / 6500K
LUMENS: 267lm / 305lm / 297lm
CRI: >80
BEAM ANGLE: 67°
MATERIAL: Die casting and PC
LIFETIME: 30,000 hours
IP RATING: IP65
DIMENSIONS: 250mm x 98mm x 90mm
CUTOUT: 227mm x 76mm x 78mm
WATTAGE: 13W
MOUNTING: Recessed
OPERATING TEMP: -20°C-50°C
VOLTAGE: 240V AC (100-240V AC 50/60Hz)
DRIVER: Yes (internal constant current driver included)
