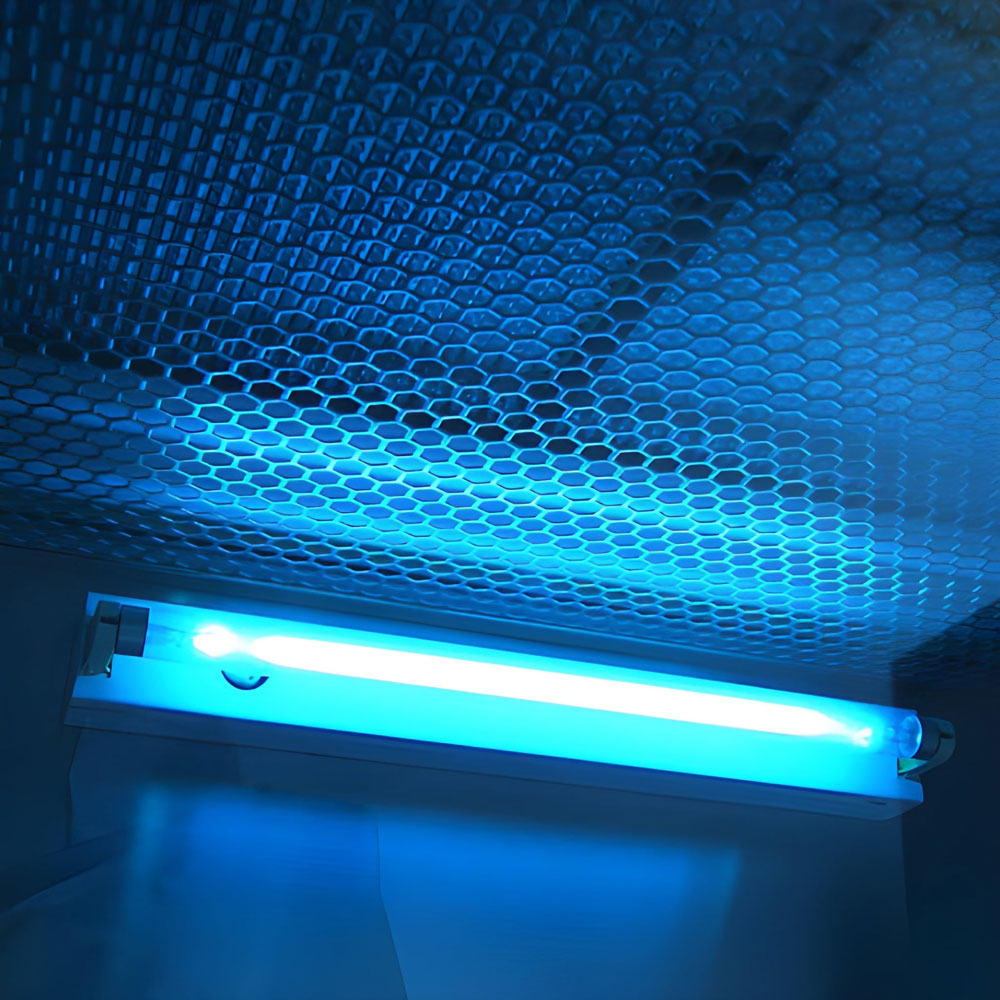

This light tube is a medicinal cold cathode germicidal solution designed for high-level disinfection across medical facilities, HVAC systems, and industrial environments. Utilizing a cold cathode structure that operates without a traditional heated filament, this unit provides an instant start with no warm-up time required. The system is engineered to emit UV-C radiation at a 254nm wavelength, which effectively penetrates cell walls and disrupts DNA structures to prohibit the reproduction of spoilage bacteria, viruses, yeasts, and mould spores. Additionally, the production of 185nm wavelength rays generates ozone to destroy organic odours and further sanitize the surrounding environment.
Constructed with a high-quality quartz sleeve, the luminaire ensures optimal UV-C transmission while maintaining high resistance to temperature fluctuations and mechanical vibrations. The technical specifications include a wattage of 21.1W, a lamp current of 63.0mA, and a lamp voltage of 403.9V operating at a frequency of 40.83 kHz. With a luminaire efficacy of 120lm/W and an effective coverage area of 20 square meters, this 600mm tube is a highly efficient tool for maintaining sterile conditions. The inclusion of fixed LED chips within the fitting enhances the operational lifespan, which is rated at 20,000 hours, while the UV life of the lamp is approximately 2 years.

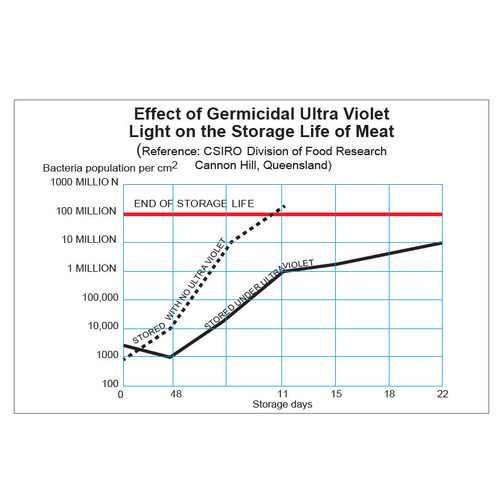

This versatile disinfection system is suitable for a wide range of applications including food storage, cool rooms, supermarkets, and water treatment units. By eliminating airborne and surface pathogens, it significantly increases the storage life of foodstuffs and reduces weight loss by allowing for higher relative humidity without the risk of bacterial growth. The maintenance-free operation and long-life components ensure a reliable and cost-effective solution for commercial and industrial sanitation needs. It is important to note that the quartz sleeve should be replaced every 24 months to prevent contaminant build-up from hindering UV-C transmission and to maintain peak performance.
The complete assembly includes the germicidal tube, fixture, ballast, wiring, and a UV quartz sleeve, facilitating straightforward installation on ceilings or walls. Designed for 240V (50Hz) power supplies, the unit operates safely within occupied spaces provided ozone concentrations do not exceed 0.05 parts per million. This professional-grade germicidal light tube offers a residue-free disinfection method that is both quick and effective, making it an essential component for hygiene management in shopping malls, hotels, and fresh food stores. Its robust design and scientific application of UV-C technology provide a high-quality solution for comprehensive environmental sterilization.
PRODUCT TYPE: Medicinal Cold Cathode Germicidal Light Tube Disinfection
APPLICATIONS: Disinfection; medical facilities; HVAC systems; water treatment units; industrial environments; cool rooms; food storage; museums; supermarkets; shopping malls; hotels; fresh food stores
WARRANTY: 1 year
COLOUR: Clear (quartz sleeve)
MATERIAL: Quartz (sleeve)
VOLTAGE: 240V (50Hz)
WATTAGE: 21.1W
GLOBE: LED (includes fixed LED chips in fitting)
GLOBE INCLUDED: Yes
DIMMABLE: No
DIMENSIONS: 600mm (length)
MOUNTING: Ceiling or Wall
LIFESPAN: 20,000 hours
OPERATION: Instant start with no warm-up time required; produces ozone to destroy organic odours; UV light penetrates cell walls and disrupts DNA structure to prohibit reproduction
LUMINAIRE EFFICACY: 120lm/W
ACCESSORIES: Tube; fixture; ballast; wire; plug; switch; UV quartz sleeve (included)
FEATURES: Cold cathode structure (operates without a traditional heated filament); complete with quartz sleeve; kills spoilage bacteria, virus, yeasts, and mould spores; increases food storage life; helps prevent cool room odours; reduces foodstuffs weight loss by allowing higher relative humidity; reduces running costs; maintenance free operation; high resistance to temperature changes and vibrations; antivirus; remove mites; disinfection; quick results; long life; no residue
NOTE: Use of ozone lamps is limited to applications in which ozone concentration will not exceed .05 parts per million in occupied spaces; quartz sleeve needs replacing after 24 months as contaminant build up will hinder uv-c transmission
LAMP CURRENT: 63.0mA
LAMP VOLTAGE: 403.9V
FREQUENCY: 40.83 kHz
WAVELENGTH: UV-C (254nm)
EFFECTIVE AREA: 20 Sqm
BASE FACE LENGTH: 600mm
ARC LENGTH: 500mm
UV LIFE: 2 years
OZONE PRODUCTION: 185 nanometer wavelength rays
SOLARISATION: Degradation of UV light filters over time can reduce intensity
SOLD SEPARATELY: Lamp socket and lead wire; tombstone telescopic stationary and spring loaded lamp-holders; butt-on stationary and spring loaded lampholders
