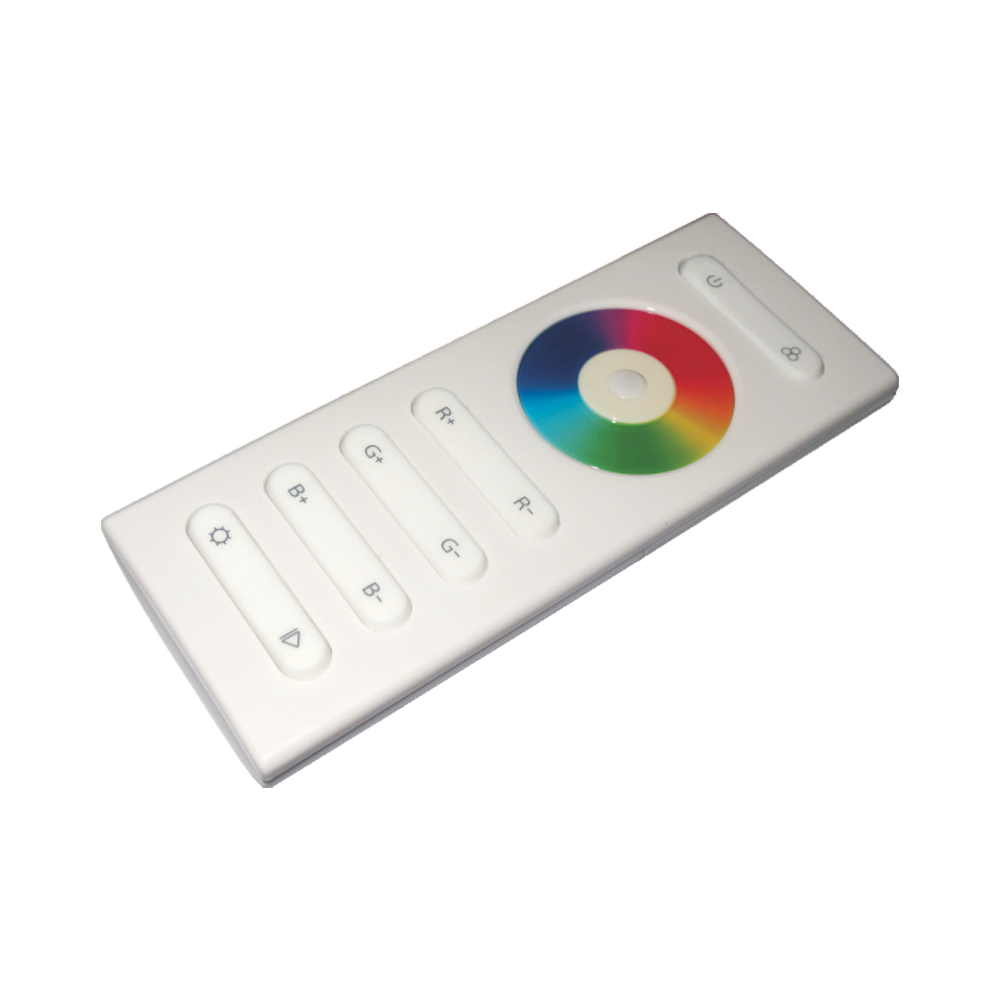

Product Name:	LED RGB Touch Remote Control for Controller Box
Product Code:	13236

This wireless remote control is designed to work with our controller box. Applications include dimming and colour control of LED strip lights.

TYPE: LED RGB Touch Remote Control
REQUIRES: Controller box to operate
FREQUENCY: 434MHz / 868MHz
RECEIVER: 12-24V DC (3 x 5 Amps, 3 x 60-120W)
LENGTH: 120mm
WIDTH: 48mm
SWITCH: Includes on / off
COLOUR TEMP: Can change colour temperature
COLOURS: Includes a colour wheel
RGB: Brightness up / down / off / off for each separate RGB channel
BRIGHTNESS: Brightness up / down overall
MODES: 10 built in modes

Product Name: LED RGB Touch Remote Control for Controller Box
Product Code: 13236
Sales Inquiries: 03 9973 6373
Email Inquiries: service@lightingstyle.com.au

Lighting Style
ABN 97 623 567 868
www.lightingstyle.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
