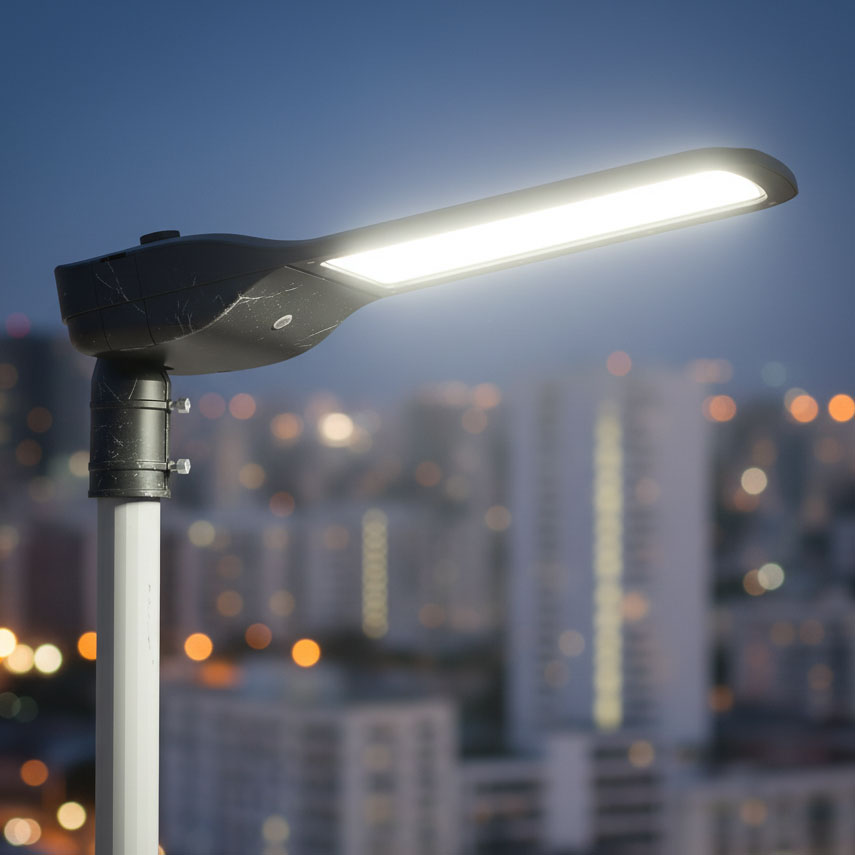

This commercial grade LED street light is engineered for dependable performance in roadways, pathways and car parks, combining a robust mechanical build with efficient optical control. The housing is formed from die-cast aluminium with a durable black finish and sealed to IP65 to resist dust ingress and driven rain. An IK08 impact rating safeguards the luminaire against mechanical shocks and incidental vandalism, while the streamlined 760mm (length) x 280mm (width) x 108mm (height) profile minimises wind load and presents a clean, contemporary streetscape aesthetic.
Performance is optimised via an adjustable power platform that allows on-site selection of 240W, 192W, 144W or 96W to match the required lighting class and pole spacing. Corresponding output levels are 36000lm, 28800lm, 21600lm and 14400lm, achieving a luminaire efficacy up to 150 lm/W for reduced operational energy. A 5000K (daylight white) colour temperature provides high visual clarity in traffic and pedestrian environments, supported by a minimum CRI of 80 for natural colour recognition. The LED engine utilises high-efficiency SMD chips integrated to the body for reliable thermal transfer and long service life.
Optical and electrical systems are tuned for roadway distribution and control. A Type III beam angle provides wide forward throw and uniform horizontal illuminance suited to streets and large open areas. The driver supports 0-10V dimming to enable adaptive lighting strategies and after-hours setback, while integral 20kV surge protection adds resilience against transient over-voltage events. The assembly is rated for ambient temperatures from -20°C to 45°C and a nominated lifetime of 50,000 hours, ensuring stable lumen maintenance over extended operating cycles.
Installation is straightforward with hardwired connection and a pole-mount interface suitable for horizontal or vertical outreach arms. The adjustable pole arm (±10°) permits tilt correction to fine-tune aiming, and a 60mm spigot is recommended for secure attachment; pole not included. Photometric data is available upon request to support design compliance and spacing calculations. With a five-year warranty and a sealed, low-maintenance architecture, this fitting offers a reliable, high-efficiency solution for councils, precinct managers and commercial operators seeking durable exterior lighting.
COLOUR: Black
MATERIAL: Die-cast aluminium
IP RATING: IP65 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
DIMENSIONS: 760mm (length) x 280mm (width) x 108mm (height)
GLOBE: LED (includes fixed LED chips in fitting)
VOLTAGE: 220V-240V AC 50Hz
LED WATTAGE: 240W / 192W / 144W / 96W (adjustable)
COLOUR TEMP: 5000K (daylight white)
LUMENS: 36000lm (240W), 28800lm (192W), 21600lm (144W), 14400lm (96W)
LUMINAIRE EFFICACY: 150 lm/W
DIMMABLE: Yes (0-10V)
CRI: 80
BEAM ANGLE: Type III
LIFE SPAN: 50,000 hours
LED SOURCE: SMD
AMBIENT TEMP: -20°C to 45°C
WIRING METHOD: Hardwire
CAPABILITIES: Adjustable pole arm ±10°
POLE: Not included
WEATHERPROOF: Yes
SURGE PROTECTION: 20kV
MOUNTING: Pole mounted (horizontal or vertical); recommended pole spigot size 60mm diameter
APPLICATIONS: Streets, pathways, tracks, car parks
PHOTOMETRIC DATA: Available upon request
WEIGHT: 4.8kg
WARRANTY: 5 years
