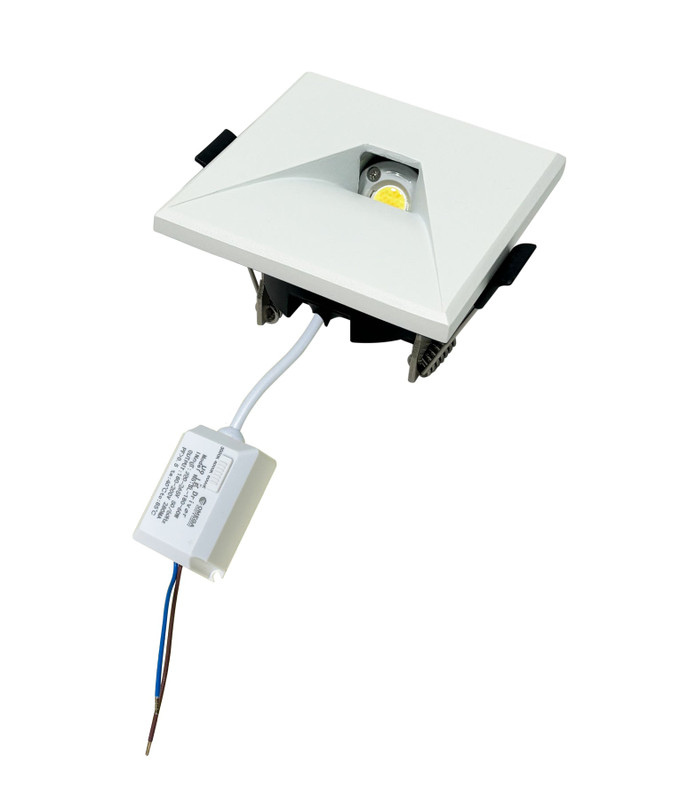

This LED step light delivers refined illumination in a compact and robust design, making it an ideal solution for safe and elegant pathway lighting. Engineered with a powder-coated aluminium housing and a precision-fitted glass diffuser, it provides a clean white finish that integrates seamlessly with a variety of architectural styles. Its recessed square form ensures a discreet appearance while directing light exactly where it is needed to enhance both visibility and visual appeal in stairs, corridors, and indoor transitional areas.
Designed for dependable performance, the fitting incorporates a 5W COB LED light source capable of producing up to 120 lumens at 4000K. The integrated Tri-CCT technology allows the user to select between 3000K warm white, 4000K cool white, or 6000K daylight white via a switch located on the external LED driver, enabling precise control of ambience and visual comfort. With a beam angle of 38° and a colour rendering index of 80, the luminaire delivers uniform illumination and accurate colour reproduction, supporting both safety and aesthetic requirements.
The electrical design ensures high efficiency and durability. Operating on a 220-240V AC 50/60Hz supply with a power factor greater than 0.8, the light maintains stable output and low energy consumption across a wide ambient temperature range of -20°C to 50°C. The front of the fitting carries an IP44 rating for splash resistance, while the overall assembly is rated IP20, making it suitable for indoor environments or sheltered installations. An IK06 impact rating provides added protection against accidental knocks, and the external constant current driver supports smooth dimming and compatibility with 2-way switching and sensor control.
This recessed step light is built for longevity with a rated life span of 30,000 hours and is backed by a two-year replacement warranty for peace of mind. Installation requires a 62mm cutout and must be carried out by a licensed electrician to ensure correct operation and compliance with electrical safety standards. Combining versatile colour temperature selection, efficient LED performance, and a sleek modern finish, this fitting offers a high-quality solution for residential and commercial interior lighting applications.
COLOUR: White
MATERIAL: Aluminium (powder coated) and glass

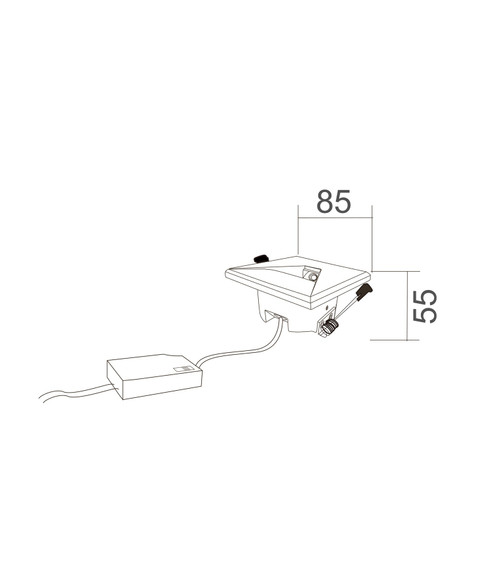

DIMENSIONS: 85mm (diameter) x 55mm (height)
CUTOUT: 62mm
IP RATING: IP44 (front part), IP20 (whole fitting)
IK RATING: IK06 (impact resistant)
VOLTAGE: 220-240V AC 50/60Hz
LED WATTAGE: 5W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 6000K (daylight white)
LUMENS: 100lm (3000K), 120lm (4000K), 110lm (6000K)
CRI: 80
POWER FACTOR: >0.8
AMBIENT TEMP: -20°C to 50°C
LED TYPE: COB
DIMMABLE: Yes
BEAM ANGLE: 38°
LIFE SPAN: 30,000 hours
DRIVER: Included (external constant current LED driver)
OPERATION: Tri-CCT selectable via switch on external LED driver; suitable for 2-way switching; suitable for use with sensors
MOUNTING: Recessed
FEATURES: Interior LED recessed step light with detachable square faceplate
INSTALLATION: Must be installed by a licenced electrician
WARRANTY: 2 years (replacement)
