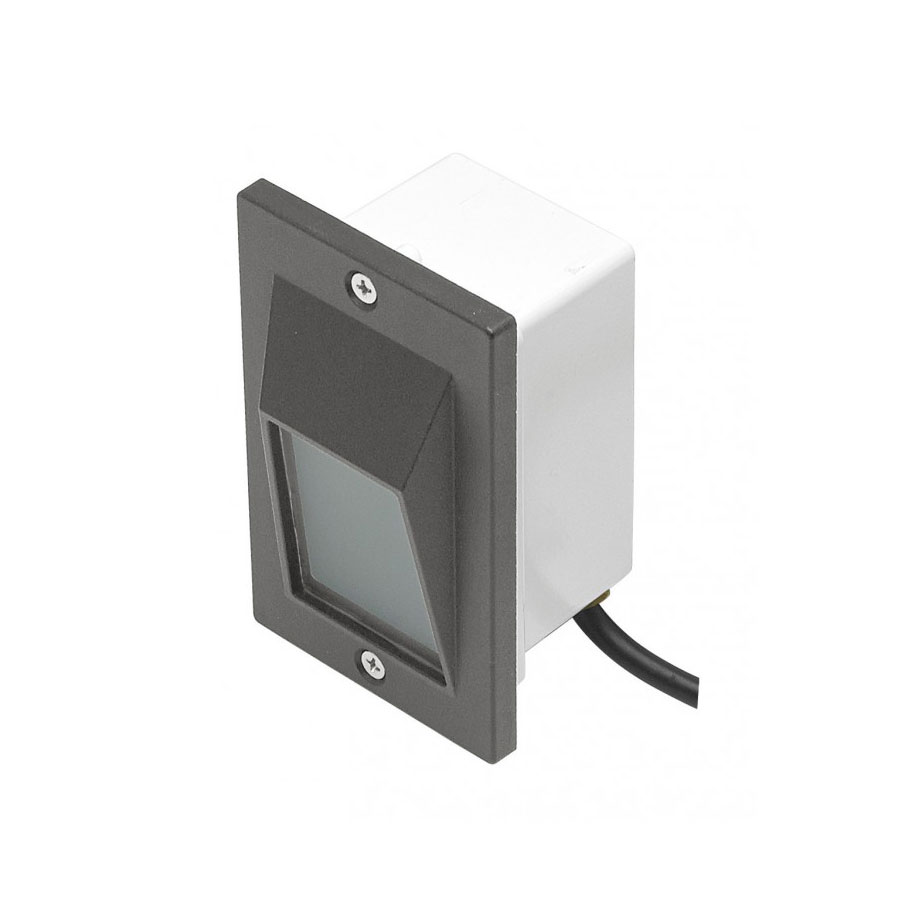

This step light is engineered with a high-grade die-cast aluminium housing and a frosted glass lens to provide a durable and sophisticated lighting solution for both indoor and outdoor environments. The recessed mounting design allows for seamless integration into walls or in-ground surfaces, while the charcoal finish ensures a modern aesthetic that complements various architectural styles. With a compact form factor measuring 112mm in height and 70mm in width, this fixture is designed for precision installation using a 62mm by 95mm cutout.
Technical performance is driven by an integrated 1.5W LED module that delivers a luminous flux of 135lm at a warm white colour temperature of 3000K. The optical system features a 90-degree beam angle and a Colour Rendering Index of 80, ensuring accurate colour representation and efficient light distribution for safety and accentuation. Operating on a low-voltage 12V AC or DC system, this fixture requires an external driver and is classified as Class II for electrical safety, making it an energy-efficient choice for residential and commercial applications.
Environmental resilience is a core feature of this luminaire, which carries an IP66 rating to signify complete protection against dust ingress and powerful water jets. The robust construction of the aluminium and glass components ensures long-term reliability in diverse weather conditions, maintaining structural integrity and performance over time. This fully weatherproof rating makes the unit ideal for high-exposure areas such as coastal pathways, garden steps, and external building perimeters where moisture and debris are prevalent.
Installation versatility is enhanced by the dual-purpose recessed mounting capability, allowing the unit to function effectively as either a bunker light or a step light. The non-dimmable circuitry is optimized for consistent output, providing a reliable 135lm of illumination to enhance visibility and security in transit areas. Backed by a one-year warranty, this lighting solution represents a commitment to quality engineering and functional design, offering a professional-grade option for sophisticated lighting projects.
PRODUCT TYPE: Step Light
APPLICATIONS: Indoor; outdoor
WARRANTY: 1 year
COLOUR: Charcoal
MATERIAL: Hi-grade die-cast aluminium; frosted glass lens
IP RATING: IP66 (fully weatherproof)
LUMENS: 135lm
COLOUR TEMP: 3000K (warm white)
VOLTAGE: 12V AC (50Hz); 12V DC
WATTAGE: 1.5W
DRIVER: Requires 12V driver (not included)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: No
DIMENSIONS: 70mm (width) x 112mm (height) x 65mm (depth)
CUTOUT: 62mm (width) x 95mm (height)
MOUNTING: Recessed (wall or in-ground)
CLASS: II
CRI: 80
