This LED step light offers a compact, energy-efficient solution for exterior pathway and stair illumination. Constructed from solid brass in a durable aged brass finish, it provides exceptional resistance to corrosion and environmental wear while delivering a refined appearance suitable for both residential and commercial applications. The polycarbonate diffuser ensures smooth, uniform light output and protects the internal LED chip from dust and moisture.
With precise dimensions of 47mm in height, 55mm in width, and a 30mm projection, this surface-mounted fitting integrates seamlessly into walls and steps without creating obstructions. The IP65 rating provides full protection against dust ingress and low-pressure water jets, making it ideal for outdoor environments exposed to rain or coastal conditions. An operating temperature range of -40°C to 85°C guarantees stable performance across extreme climates.
The integrated 1W LED chip delivers a warm 3000K light output of 107 lumens, providing sufficient visibility while minimising power consumption. A high power factor of ≥0.95 ensures electrical efficiency, while the advanced XP-E-Q5 LED technology achieves a long service life of 50,000 hours. The wide 120° beam angle ensures broad, even illumination across steps and walkways.
Installation requires a 12V DC supply and an external driver, allowing flexibility in power configuration and ensuring compatibility with existing low-voltage systems. For safety and compliance, this product must be installed by a licenced electrician. Backed by a two-year replacement warranty, it delivers dependable, low-maintenance performance for architectural lighting projects.
COLOUR: Aged Brass
MATERIAL: Solid brass with polycarbonate diffuser

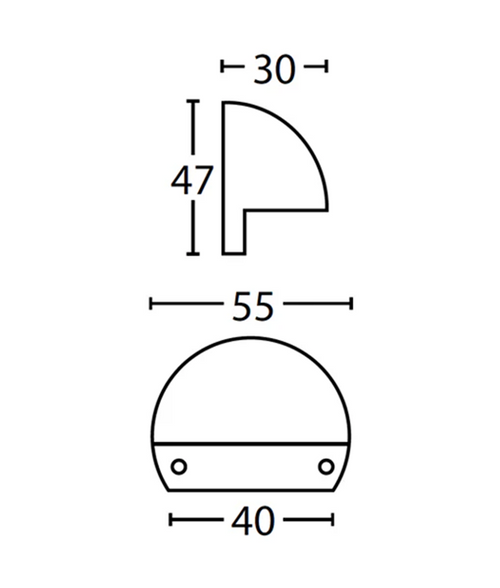

DIMENSIONS: 47mm (height) x 55mm (width) x 30mm (projection)
IP RATING: IP65 (fully weatherproof)
VOLTAGE: 12V
LED WATTAGE: 1W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white)
LUMENS: 107lm
CRI: 80
LIFE SPAN: 50,000 hours
BEAM ANGLE: 120°
POWER FACTOR: ≥0.95
AMBIENT TEMP: -40°C to 85°C
LED CHIPS: 1pc XP-E-Q5
DIMMABLE: No
MOUNTING: Surface mounted
DRIVER: Not included (external control gear required)
FEATURES: Exterior LED surface mounted step light
INSTALLATION: Must be installed by a licenced electrician
WARRANTY: 2 years (replacement)
