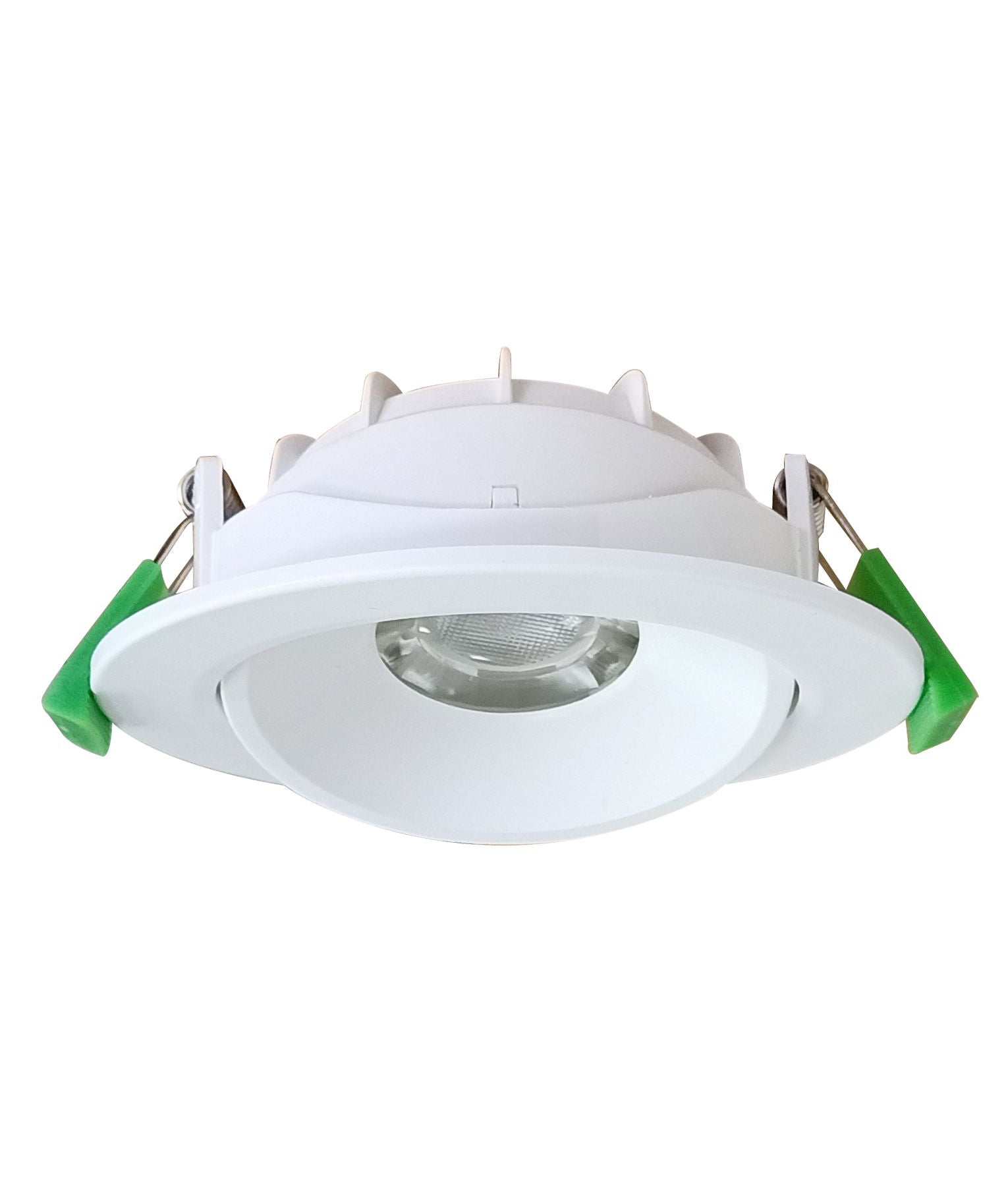

This LED downlight is a high-performance recessed lighting solution engineered for efficient and adaptable illumination in residential and commercial interiors. Designed in a crisp white finish with a low-profile 111mm diameter, it integrates seamlessly into ceilings for a modern, unobtrusive appearance. Its form factor incorporates a 20° tilt gimbal, enabling directional lighting that can be fine-tuned for accent, task, or general ambient applications. With a cutout diameter of 90mm and a shallow height of just 32.7mm, it is ideal for installations with limited ceiling cavity space.
Equipped with an integrated COB LED chip and an external constant current driver, this downlight delivers stable output with high luminous efficacy. The Tri-CCT function allows the user to select between 3000K, 4000K, and 5700K, offering warm, cool, or daylight white options to suit various environments and preferences. Lumen output ranges from 640lm at 3000K to 720lm at 4000K and 5700K, ensuring sufficient brightness across all settings. Its optical system includes a clear polycarbonate diffuser that ensures consistent light distribution with a 60° beam angle.
This downlight supports dimming functionality and is compatible with a wide range of trailing-edge dimmers. It also accommodates 2-way switching and works effectively with motion sensing systems such as PIR and microwave sensors, enhancing both energy efficiency and automation potential. Constructed with a thermally managed housing of plastic and aluminium, it achieves excellent heat dissipation and reliability. The unit is IC rated and double insulated, making it suitable for installation in contact with insulation, and operates effectively within ambient temperatures from -20°C to 40°C.
With a CRI greater than 80 and a power factor above 0.9, this luminaire ensures both accurate colour rendering and electrical efficiency. It includes a 0.6m flex and plug for streamlined installation, and the CCT switch is conveniently located on the driver. This product is backed by a 3-year replacement warranty and must be installed by a licensed electrician to ensure compliance with electrical standards. Its combination of adjustable light direction, selectable colour temperatures, and integrated dimmable driver makes it a versatile and professional-grade lighting solution.
COLOUR: White
MATERIAL: Plastic and aluminium (housing and heatsink), clear polycarbonate (diffuser)
DIMENSIONS: 111mm (diameter) x 32.7mm (height)
MOTION SENSOR: Yes (PIR infrared sensor)
IP RATING: IP20 (indoors only)
IC RATED: Yes
GLOBE: LED (includes fixed LED chips in fitting)
LED TYPE: COB
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white), 5700K (daylight white)
LUMENS: 640lm (3000K), 720lm (4000K), 720lm (5700K)
VOLTAGE: 220-240V
WATTAGE: 8W
CRI: >80
BEAM ANGLE: 60°
CUTOUT: 90mm
POWER FACTOR: >0.9
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: Yes
MOUNTING: Recessed
CAPABILITIES: 20° tilt gimbal
CCT SWITCH: On driver
DOUBLE INSULATED: Yes
DRIVER: Yes (external constant current LED driver)
INCLUDES: Flex & plug (0.6m)
OPERATION: Suitable for dimming; suitable for 2-way switching; suitable for use with PIR & Microwave sensors
INSTALLATION: Must be installed by a licensed electrician
WARRANTY: 3 year replacement warranty
