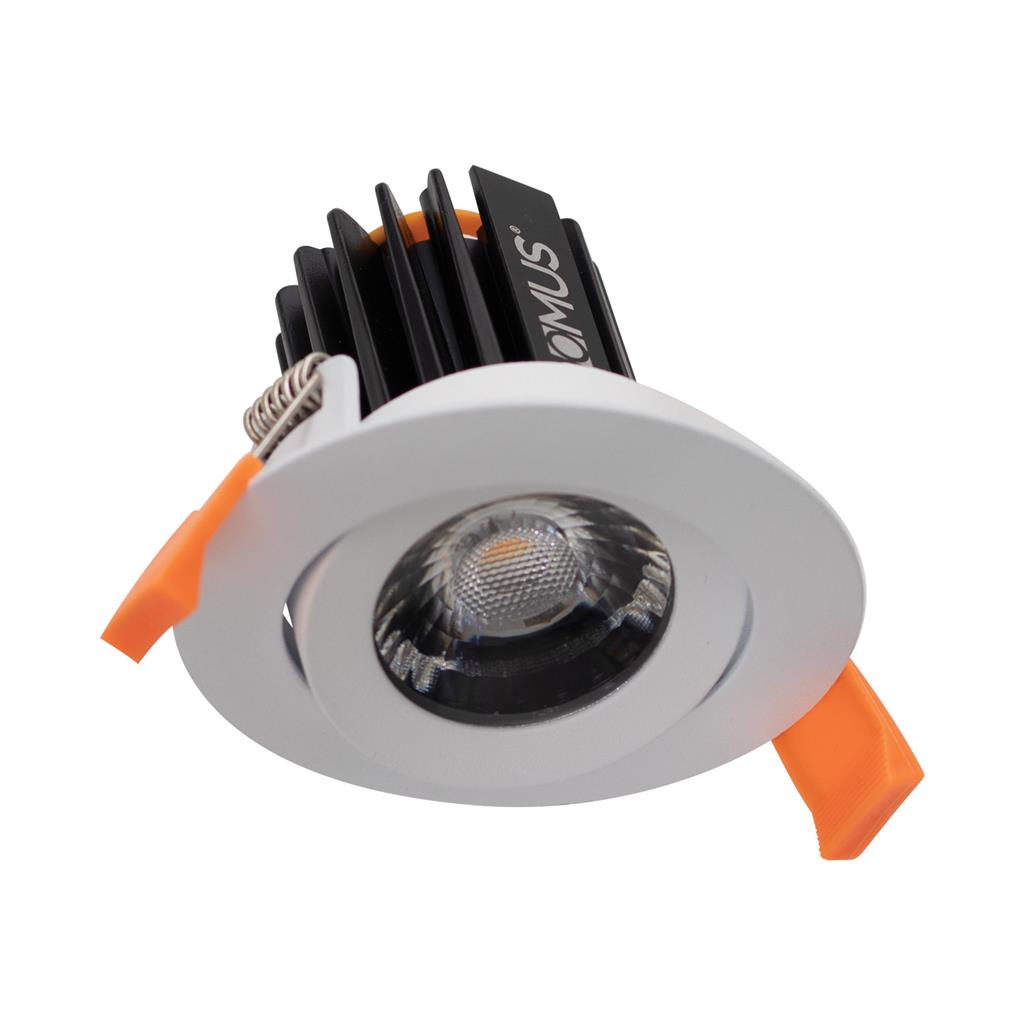

This LED downlight is a precision-engineered lighting solution designed to deliver adaptable illumination across a wide range of interior environments. Finished in white and featuring a compact 90mm diameter with a recessed form factor, it integrates seamlessly into ceiling cavities via a 72mm–75mm cutout. The luminaire incorporates an IC-4 rating, ensuring it is safe for use when in contact with or covered by thermal insulation. Its ingress protection rating of IP44 classifies it as weather-resistant, suitable for damp areas such as bathrooms or sheltered outdoor spaces.
The optical performance is characterised by a 60° beam angle and a COB LED source that provides uniform, low-glare output. The unit delivers up to 772 lumens at 5700K (daylight white), with selectable colour temperatures ranging from 2700K (warm white) to 5700K (daylight white) via an integrated DIP switch. This flexibility allows precise tuning of ambient conditions in residential or light commercial settings. High colour rendering with a CRI ≥80 ensures accurate visual perception, making it suitable for task-oriented areas as well.
Operational efficiency is enhanced through a plug-and-play installation design, with compatibility for both MR16 retrofit frames and proprietary click-in downlight frames. The downlight includes a high-quality dimmable LED driver and flex and plug, offering simple integration into existing electrical infrastructure. Its adjustable gimbal mechanism allows the luminaire head to tilt, providing directional control for accent or functional lighting purposes.
Designed for longevity and stability, the fitting boasts a projected lifespan of 50,000 hours, underpinned by robust thermal management and LED driver integration. With a power consumption of 9W and an operating voltage range of 200–240V AC, it offers low energy usage without compromising output quality. The product is backed by a 3-year replacement warranty, affirming its reliability for enduring use in both renovation and new build applications.
COLOUR: White
IP RATING: IP44 (weather-resistant)
IC RATING: IC-4 (suitable for abutted and covered insulation)
DIMENSIONS: 90mm (diameter) x 71mm (depth)
CUTOUT: 72mm–75mm (diameter)
WATTAGE: 9W (max)
VOLTAGE: 200–240V 50–60Hz
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: Switchable between 2700K (warm white), 3000K (warm white), 4000K (cool white), 5000K (daylight white), 5700K (daylight white)
LUMENS: 649lm (2700K), 660lm (3000K), 717lm (4000K), 755lm (5000K), 772lm (5700K)
DIMMABLE: Yes
CRI: ≥80
BEAM ANGLE: 60°
LIFE SPAN: 50,000 hours
LED TYPE: COB
MOUNTING: Recessed
INCLUDES: Dimmable LED driver and flex and plug
INSTALLATION: Plug and play module and driver; suits most MR16 downlight frames; also compatible with click-in frames
CAPABILITIES: Adjustable gimbal (tiltable light head for directional control); colour temperature selectable via DIP switch on driver
WARRANTY: 3 years (replacement)
