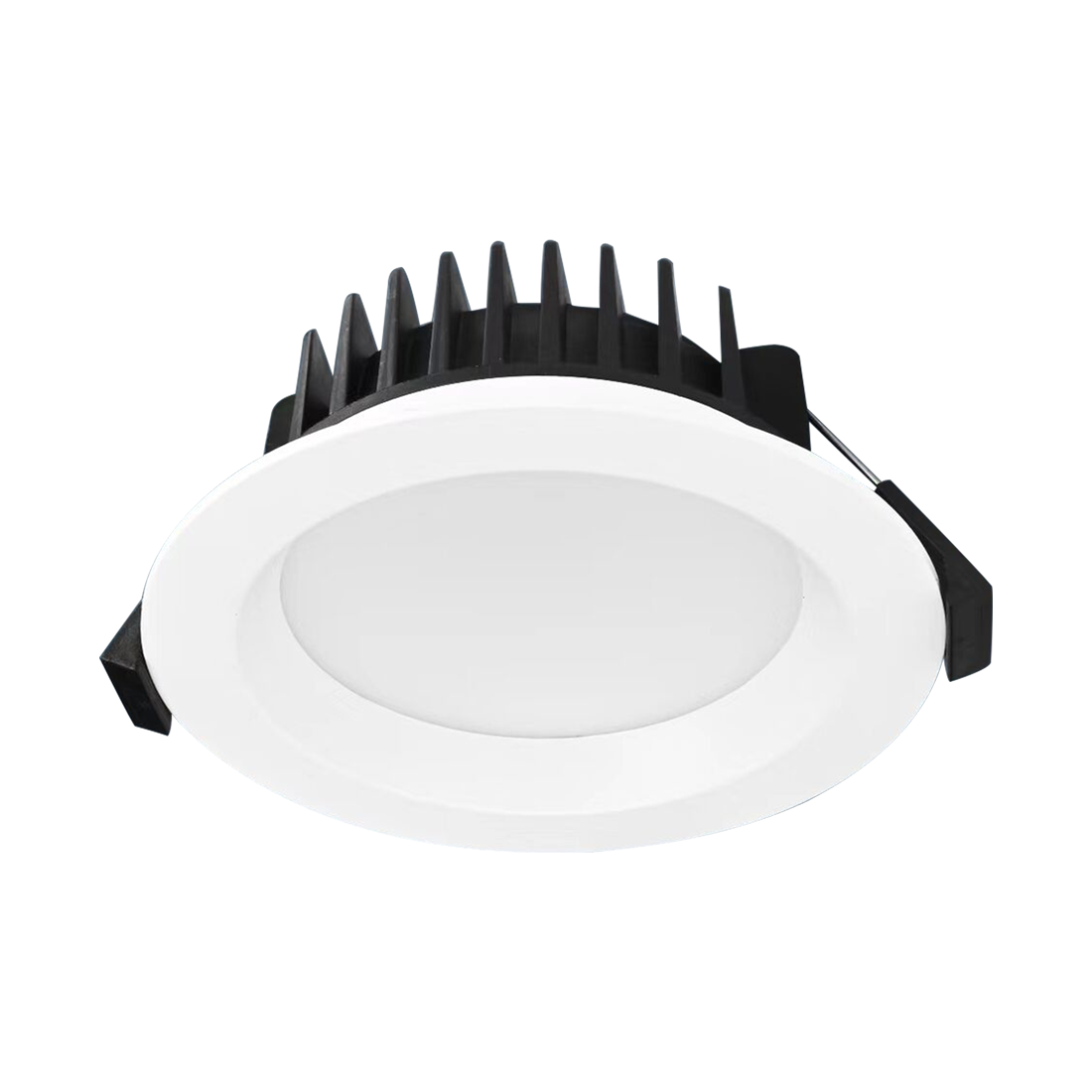

This LED downlight is engineered to deliver efficient and adaptable illumination for modern interior applications. Operating at 12W, it produces up to 1200lm of output at 4000K, with selectable colour temperatures of 3000K, 4000K, and 5000K to accommodate varying lighting requirements. The 100° beam angle ensures broad and uniform light distribution, while a CRI of 83 provides accurate colour rendering suitable for residential and light commercial environments.
Constructed from aluminium with a clean white trim, this fitting is designed for durability and thermal efficiency. The compact form factor, with a 108mm diameter and 47mm height, allows for seamless integration into ceilings with a 90mm cutout. Its recessed mounting design delivers a low-profile architectural finish, making it suitable for a wide range of ceiling types while maintaining a refined aesthetic.
This unit incorporates a remote driver system, enhancing thermal management and reliability by separating the driver from the luminaire body. It is supplied with a 1.2m flex and plug for simplified installation, and supports triac dimming for adjustable light output. The IC-4 (IC-F) rating allows safe installation under insulation, while the V-0 flame rating ensures compliance with stringent fire safety standards.
With an IP44 rating, this downlight offers protection against dust and moisture, making it suitable for use in bathrooms, kitchens, and other semi-exposed indoor areas. It operates within an ambient temperature range of -20°C to 40°C and delivers a lifespan of 30,000 hours, ensuring long-term performance and reduced maintenance. Certified to RCM standards and backed by a 3-year warranty, this fitting represents a reliable and high-quality lighting solution.
COLOUR: White
MATERIAL: Aluminium
WATTAGE: 12W
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 1140lm (3000K), 1200lm (4000K), 1176lm (5000K)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
CRI: 83
BEAM ANGLE: 100°
IP RATING: IP44 (weather-resistant)

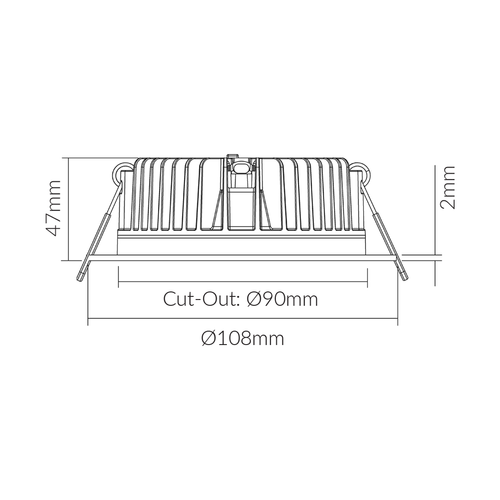

DIMENSIONS: 108mm (diameter) x 47mm (height)
CUTOUT: 90mm (diameter)
VOLTAGE: 220-240V / 50Hz
LIFE SPAN: 30000 hours
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: Yes (triac dimming)
COMPLIANCE: RCM
PHOTOMETRIC DATA: Available upon request
IC RATING: IC-4 (IC-F)
FLAME RATING: V-0
WARRANTY: 3 years
MOUNTING: Recessed
DRIVER: Included (remote driver)
INCLUDES: 1.2m lex & plug
LED SOURCE: SMD
