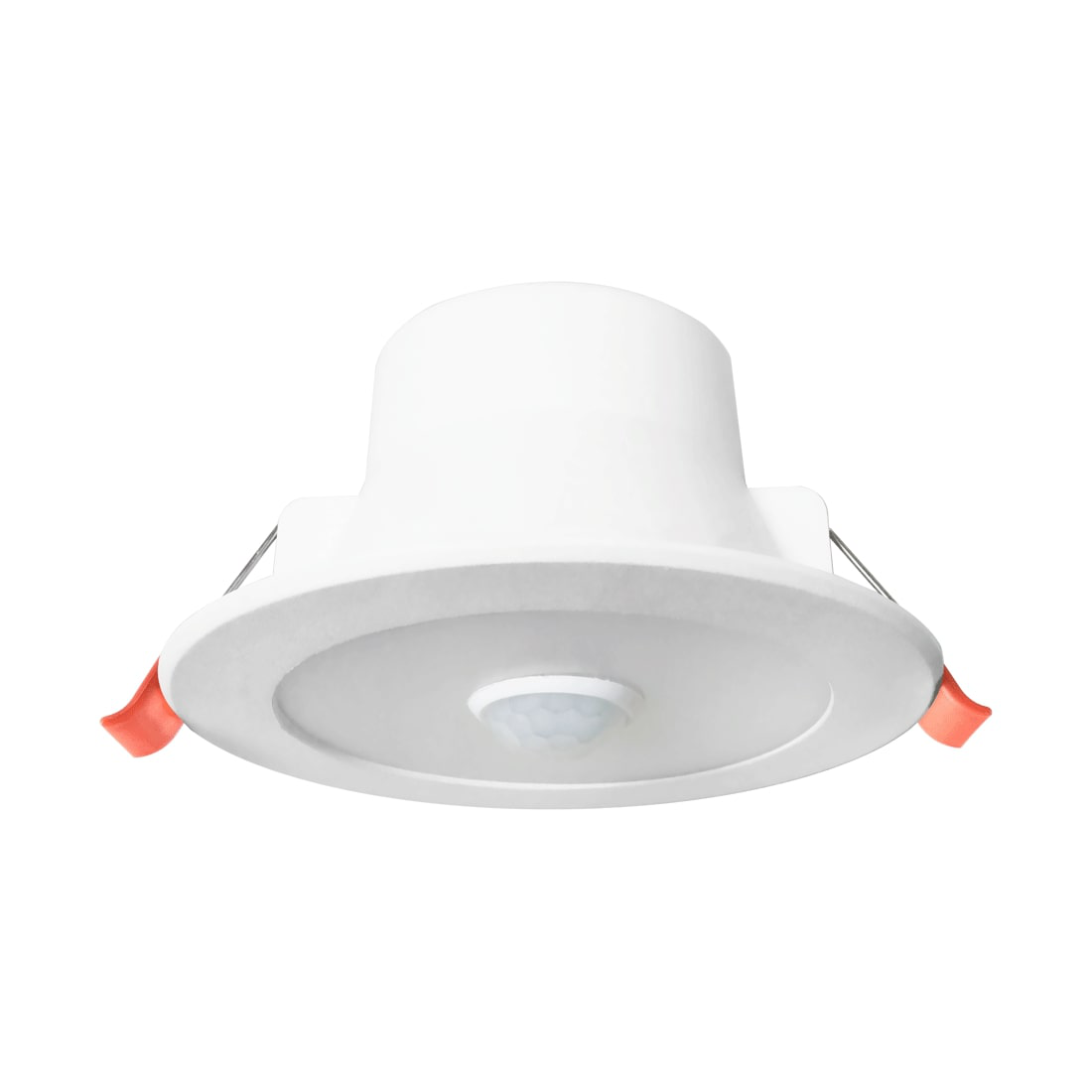

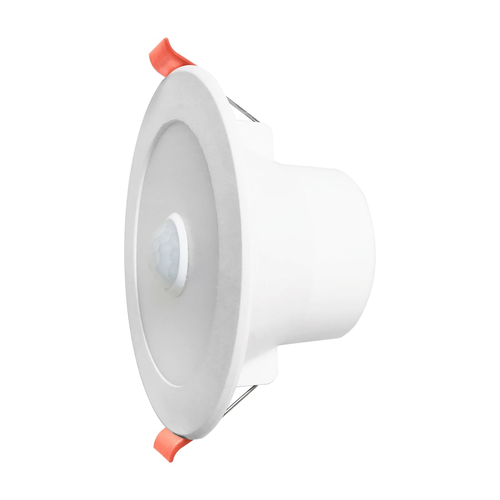

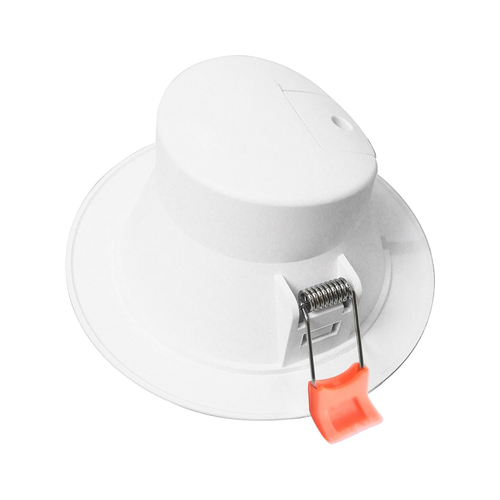

This LED downlight is a compact and energy-efficient recessed lighting solution engineered for residential and light commercial interiors requiring intelligent illumination control. Finished in white and constructed from aluminium coated plastic, it delivers a clean architectural appearance while maintaining durability and thermal stability. The integrated 8W LED system provides consistent luminous output up to 860lm, with a wide 100° beam angle ensuring uniform light distribution across the space.
Designed for flexibility, the fitting features Tri-CCT technology with selectable colour temperatures of 3000K, 4000K, and 5000K, allowing precise tuning of lighting ambience to suit different environments. With a CRI of 80, it ensures accurate colour rendering suitable for general-purpose applications. The recessed mounting configuration, compatible with a 90-100mm cutout, combined with a compact 115mm diameter and 71.4mm height, enables seamless integration into ceilings without compromising performance.
A key functional feature is the built-in PIR motion sensor, providing automatic illumination when movement is detected within a 4m range and 100° detection angle. The system incorporates a 2-minute timer that resets with continued motion, optimising energy efficiency and user convenience. Additionally, a manual override function allows continuous operation for up to 8 hours, offering flexibility for extended use scenarios before reverting to automatic mode.
Rated IP44, this downlight is suitable for indoor environments including areas exposed to moisture such as bathrooms and utility spaces. Operating reliably within ambient temperatures from -20°C to 40°C and offering a lifespan of 30000 hours, it ensures long-term performance with minimal maintenance. Supplied with a flex and plug for simplified installation and backed by a 3 year warranty, this fitting represents a dependable and technologically advanced lighting solution.
COLOUR: White
MATERIAL: Aluminium coated plastic
WATTAGE: 8W
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 800lm (3000K), 860lm (4000K), 840lm (5000K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5000K (daylight white)
CRI: 80
BEAM ANGLE: 100°
IP RATING: IP44 (weather-resistant)
DIMENSIONS: 115mm (diameter) x 71.4mm (height)
CUTOUT: 90-100mm
WEIGHT: 0.155kg
VOLTAGE: 220-240V AC 50Hz
LIFE SPAN: 30000 hours
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: No
MOUNTING: Recessed
PHOTOMETRIC DATA: Available upon request
FEATURES: Manual override function
WARRANTY: 3 years
MOTION SENSOR: Yes (built-in PIR sensor)
SENSOR RANGE: 4m
SENSOR TIMER: 2 minutes (resets with continued motion)
DETECTION ANGLE: 100°
INCLUDES: Flex & plug
OPERATION: Motion-activated lighting with automatic timer reset; manual override activated by switching power on/off twice, keeps light on for 8 hours before returning to AUTO mode; override resets if power is off for 30 seconds
