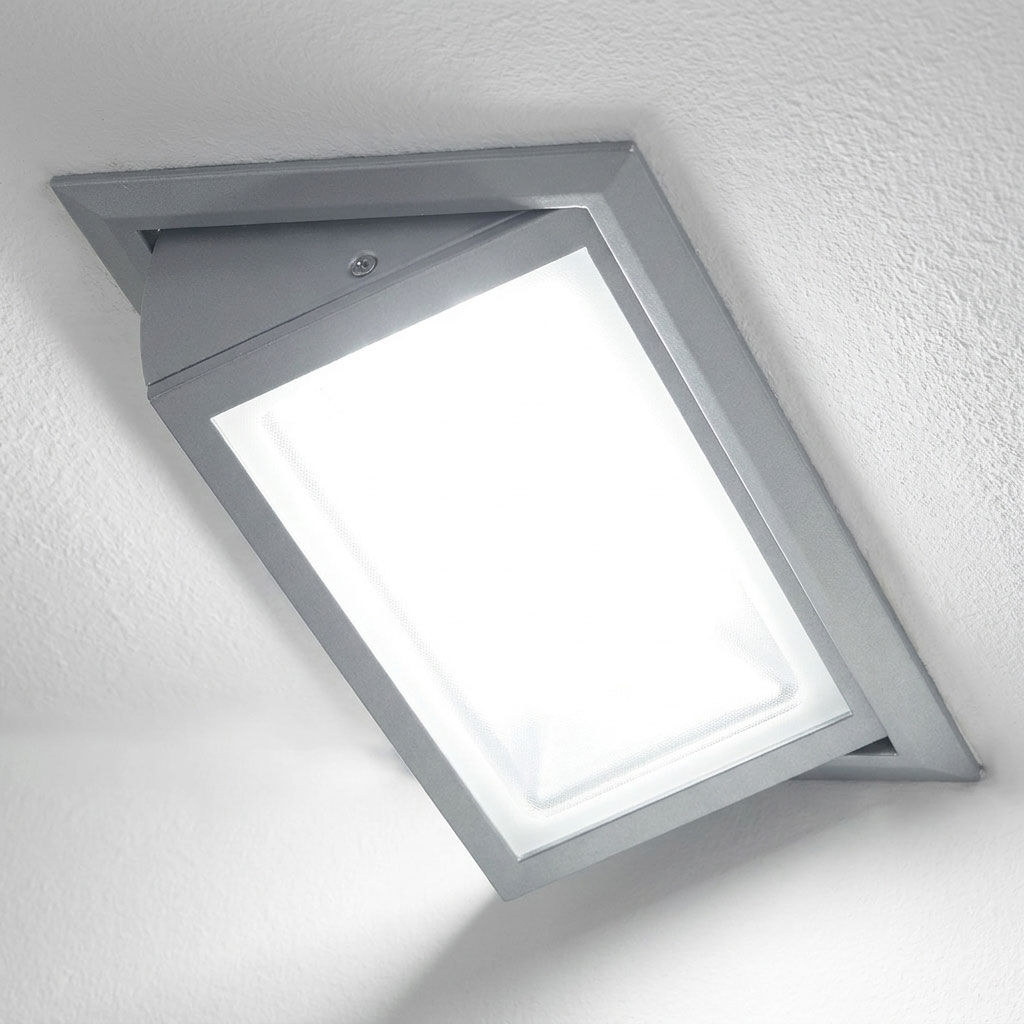

This LED downlight is a high-performance lighting solution designed for sophisticated indoor environments, featuring a robust 48W power output and a high-intensity 4500lm luminous flux. Engineered with advanced LED COB technology, the fixture provides a precise 65-degree beam angle and a color rendering index exceeding 80, ensuring exceptional light quality and visual clarity. The rectangular silver housing is constructed for recessed mounting, offering a sleek aesthetic that integrates seamlessly into modern ceiling architectures while maintaining a professional appearance.
Technical excellence is at the core of this luminaire, which operates on a standard 220V-240V voltage range and includes a dedicated driver for stable performance. The unit is designed with a tiltable mechanism allowing for up to 60 degrees of adjustment, providing versatile directional lighting to highlight specific architectural features or task areas. With a rated lifespan of 20,000 hours and a maximum ambient temperature tolerance of 35 degrees Celsius, this fixture represents a durable and reliable investment for long-term illumination requirements.
Safety and installation efficiency are prioritized through a CA135 classification, permitting the fixture to be abutted against non-flammable building insulation blankets or segments. The unit features a closed air and moisture transfer design and carries an F Mark, signifying its suitability for mounting in timber ceilings when installed by a registered electrician. Precise physical dimensions of 250mm by 150mm require a specific cutout of 230mm by 130mm, supported by included spring clips to facilitate a secure and straightforward recessed installation process.
This energy-efficient lighting component is specifically engineered for fire safety and optimal thermal management within ceiling cavities. It requires a minimum cavity depth of 230mm and a volume of 0.2 cubic meters to ensure adequate ventilation and adherence to clearance specifications, including MIC 30mm and HCB 100mm. By combining high-lumen output with a cool white 4000K color temperature, this LED downlight delivers a powerful yet comfortable lighting experience suitable for a wide variety of commercial and residential applications.
PRODUCT TYPE: LED Downlight
WARRANTY: 1 year
COLOUR: Silver
IP RATING: Indoors only
LUMENS: 4500lm
COLOUR TEMP: 4000K (cool white)
VOLTAGE: 220V-240V
WATTAGE: 48W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMENSIONS: 250mm (length) x 150mm (width)
CUTOUT: 230mm (length) x 130mm (width)
CAVITY DEPTH: 230mm (minimum)
CAVITY VOLUME: 0.2m³ (minimum)
CLEARANCES: MIC 30mm; SCB 75mm; HCB 100mm
MOUNTING: Recessed
CRI: >80
BEAM ANGLE: 65°
LIFESPAN: 20,000 hours
AMBIENT TEMP: 35°C (max)
AIR / MOISTURE TRANSFER: Closed
CLASSIFICATION: CA135 (can run safely with non-flammable building insulation blankets or segments abutted to sides)
F MARK: Yes (suitable for mounting in timber ceilings)
ADJUSTABLE: Yes
INSTALLATION: Must be installed by a registered electrician in accordance with AS/NZS 3000; spring clips included
FEATURES: Tiltable to 60 degrees; dedicated energy efficient; engineered for fire safety; rectangular design; LED COB technology
REMARKS: Do not install LED fixtures on the same circuit as metal halide fixtures
