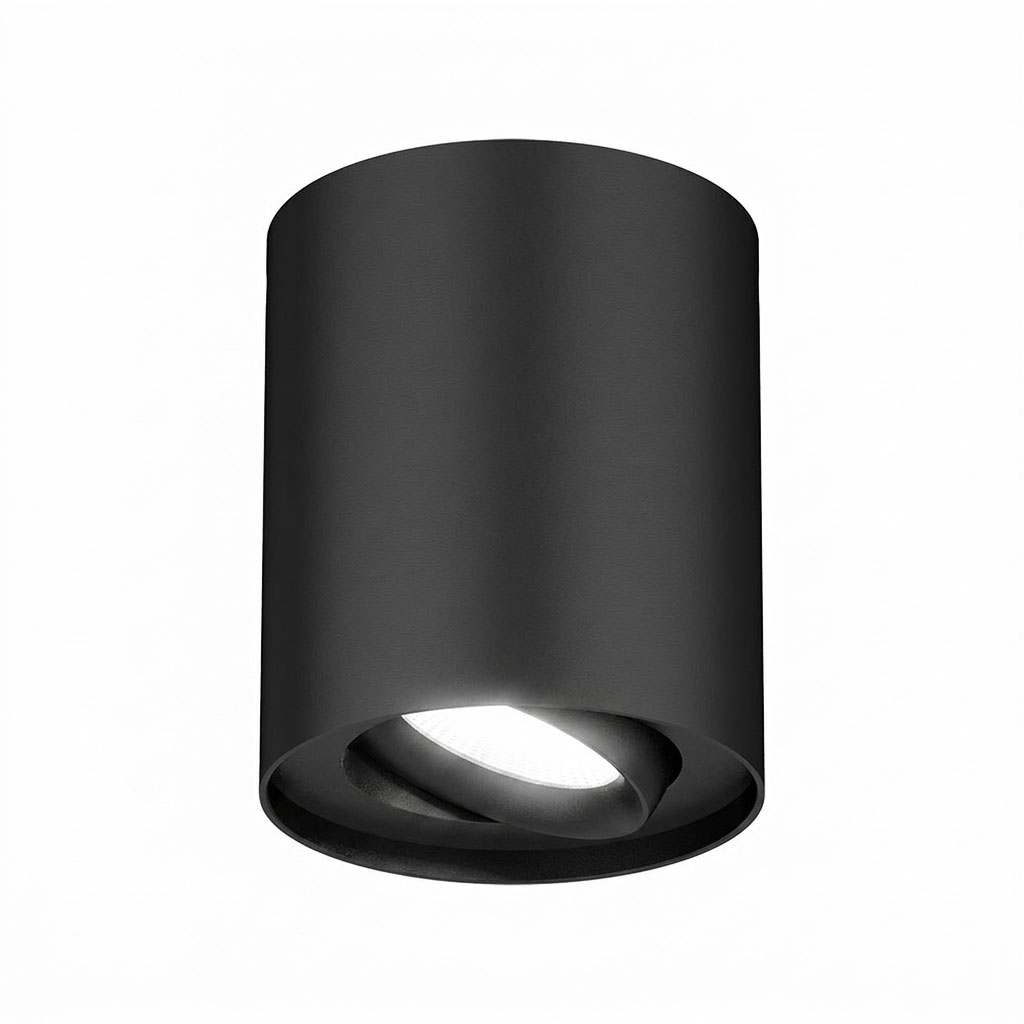

This LED downlight is a precision-engineered lighting solution designed for surface-mounted applications where consistent illumination and durability are required. Operating at 10W, it delivers an output of 1000lm with a luminaire efficacy of 100lm/W, ensuring efficient energy conversion and reduced power consumption. The integrated LED module emits a 4000K cool white light, producing a clean and neutral illumination suitable for residential and commercial interior environments. The fitting features a die-cast aluminium construction in a black finish, providing both structural strength and effective thermal management for sustained performance.
Optically, the downlight is configured with a 60° beam angle, enabling controlled light distribution with minimal glare while maintaining adequate coverage across the illuminated area. The CRI of 80 ensures reliable colour rendering, making it suitable for general lighting applications where visual clarity is essential. The sealed construction achieves an IP54 rating, offering protection against dust ingress and splashing water, while the IK06 rating provides resistance against mechanical impact, enhancing its reliability in demanding installations.
Designed for long-term operation, the unit has a rated life span of 50,000 hours, significantly reducing maintenance frequency and lifecycle costs. It operates within an ambient temperature range of -20°C to 40°C, ensuring stable performance across varying environmental conditions. The downlight supports triac dimming, allowing seamless integration with compatible dimming systems to achieve adjustable light levels without flicker or instability, making it adaptable to different lighting requirements.
Installation is simplified through its surface-mounted design, with flexible wiring options allowing either flex and plug connection or hardwired integration. The compact form factor, measuring 108mm in height and 90mm in diameter, ensures a clean and unobtrusive appearance while maintaining robust functionality. Supplied with a flex and plug for convenience, this downlight is a high-quality, reliable solution for interior lighting applications where performance, efficiency, and durability are critical.
COLOUR: Black
MATERIAL: Die-cast aluminium
WATTAGE: 10W
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 1000lm
COLOUR TEMP: 4000K (cool white)
CRI: 80
BEAM ANGLE: 60°
IP RATING: IP54 (weather-resistant)
IK RATING: IK06 (impact resistant)
DIMENSIONS: 108mm (height) x 90mm (diameter)
WEIGHT: 0.5kg
INPUT VOLTAGE: 200-240V AC
LIFE SPAN: 50,000 hours
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: Yes (triac dimming)
PHOTOMETRIC DATA: Available upon request
MOUNTING: Surface mounted
WIRING METHOD: Flex & plug or hardwire
WEATHERPROOF: Indoor use only
LUMINAIRE EFFICACY: 100lm/W
INCLUDES: Flex & plug
WARRANTY: 3 years
