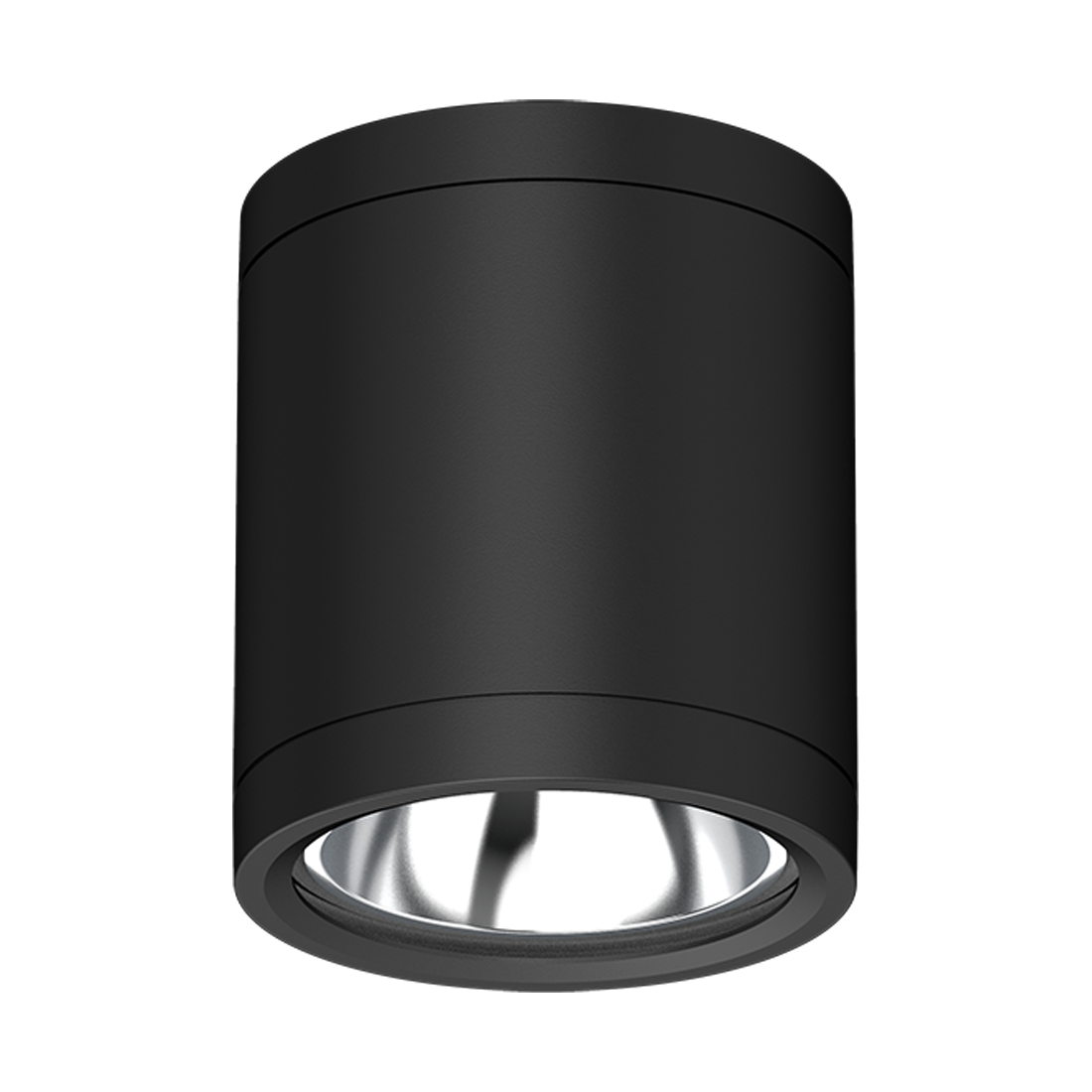

This LED downlight in black finish is a compact surface mounted lighting solution engineered for consistent performance across a range of residential and light commercial applications. Constructed from durable die-cast aluminium, the fitting provides excellent structural integrity and thermal management, ensuring stable operation of the integrated LED system. Its minimalist cylindrical form, combined with a 90mm diameter and 107mm height, delivers a clean architectural appearance suitable for modern interiors and covered outdoor environments.
Operating at 10W, this luminaire delivers efficient illumination with outputs of 738lm at 3000K, 807lm at 4000K, and 732lm at 5000K. The selectable Tri-CCT functionality allows precise adjustment of colour temperature to suit varying application requirements, from warm ambient lighting to cooler task-oriented illumination. A 75° beam angle provides balanced light distribution, making it suitable for general lighting while maintaining adequate directional control.
The integrated LED system features a CRI of 80, ensuring accurate colour rendering for everyday environments. With an IP65 rating, the fitting is fully weatherproof and capable of withstanding exposure to dust and moisture, while the IK06 impact rating provides resistance against minor mechanical impacts. The unit operates on 200-240V AC and incorporates triac dimming compatibility, enabling smooth adjustment of light output when paired with suitable dimming systems.
Designed for longevity and reliability, the downlight offers a rated life span of 50,000 hours, reducing maintenance requirements over time. The fitting is hardwired and surface mounted, simplifying installation in locations where recessed mounting is not feasible. Compliance with RCM standards ensures adherence to relevant electrical safety requirements, while photometric data is available upon request to support lighting design and specification needs.
COLOUR: Black
MATERIAL: Die-cast aluminium
WATTAGE: 10W
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 738lm (3000K), 807lm (4000K), 732lm (5000K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white), 5000K (daylight white)
CRI: 80
BEAM ANGLE: 75°
IP RATING: IP65 (fully weatherproof)
IK RATING: IK06
DIMENSIONS: 90mm (diameter) x 107mm (height)
WEIGHT: 0.6kg
VOLTAGE: 200-240V AC
LIFE SPAN: 50,000 hours
DIMMABLE: Yes (triac dimming)
COMPLIANCE: RCM
PHOTOMETRIC DATA: Available upon request
WARRANTY: 3 years
MOUNTING: Surface mounted
OUTPUT CURRENT: 230mA
CURRENT TYPE: Constant current
WIRING METHOD: Hardwired
