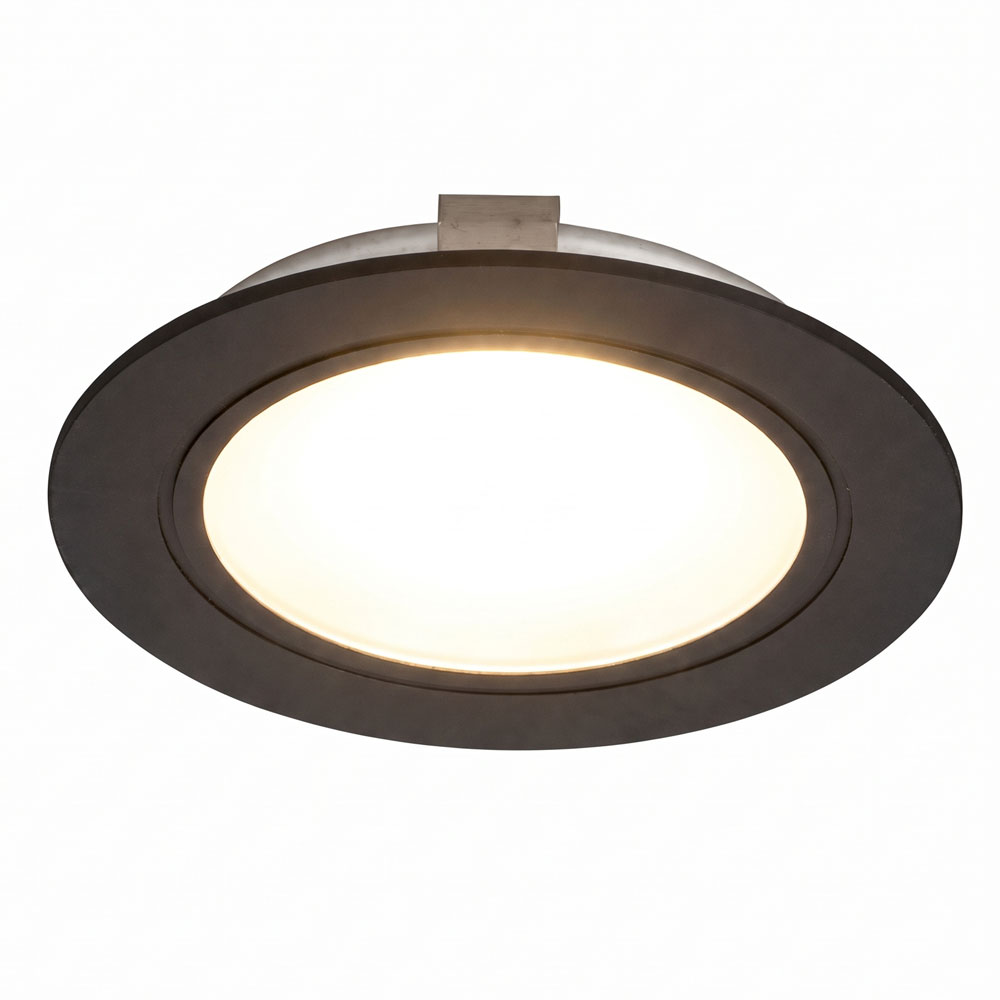

This LED downlight is a sophisticated lighting solution designed for indoor ceiling applications, offering a blend of efficiency and modern aesthetics. Engineered for precision, it provides a reliable illumination source suitable for various residential and commercial settings such as bedrooms, cafes, and dining areas. The sleek black finish ensures a seamless integration into contemporary interior designs while maintaining a professional appearance.
Technically advanced, this fixture operates on a 12V DC system with a low power consumption of 3W, producing a luminous flux of 260lm. It features a built-in LED globe with a warm white colour temperature of 3000K and a high colour rendering index of over 80, ensuring accurate colour representation. The 60-degree beam angle provides focused illumination, delivering approximately 370 Lux at a distance of 600mm for effective task or accent lighting.
The physical construction of the unit is remarkably compact, measuring 62mm in diameter with a minimal height of only 10mm and a flange thickness of 1.2mm. Installation requires a 55mm diameter cutout for recessed mounting, supported by a 1500mm cable for flexible connectivity. Its ultra-slim profile and closed air-moisture transfer design make it an ideal choice for installations with limited cavity depths as shallow as 15mm.
Safety and versatility are paramount, as evidenced by the IC-F rating which allows for installation under building insulation without restrictions. The integrated connection system facilitates the use of multiple compatible lights with a single 12V DC driver, which is sold separately. Additionally, the unit is compatible with an optional surface mount ring, providing further installation flexibility for diverse architectural requirements.
PRODUCT TYPE: LED Downlight
WARRANTY: 1 year
COLOUR: Black
IP RATING: Indoors only
LUMENS: 260lm
COLOUR TEMP: 3000K (warm white)
VOLTAGE: 12V DC
WATTAGE: 3W
DRIVER: Requires 12V driver (not included)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMENSIONS: 62mm (diameter) x 10mm (height)
CUTOUT: 55mm (diameter)
MOUNTING: Recessed
CLASS: III
IC RATING: IC-F
CRI: >80
BEAM ANGLE: 60°
CABLE: Yes (1500mm input cable with plug)
FLANGE THICKNESS DEPTH: 1.2mm
FRONT DECORATIVE TRIM WIDTH: 10.5mm
ILLUMINATION: 370 Lux at 600mm
AIR / MOISTURE TRANSFER: Closed
INSULATION: No restrictions
CAVITY DEPTH: 15mm
ACCESSORIES: Surface mount ring (sold separately); 12Volt DC control gear (sold separately)
FEATURES: Connection system allows multiple compatible lights to be used with the same driver
