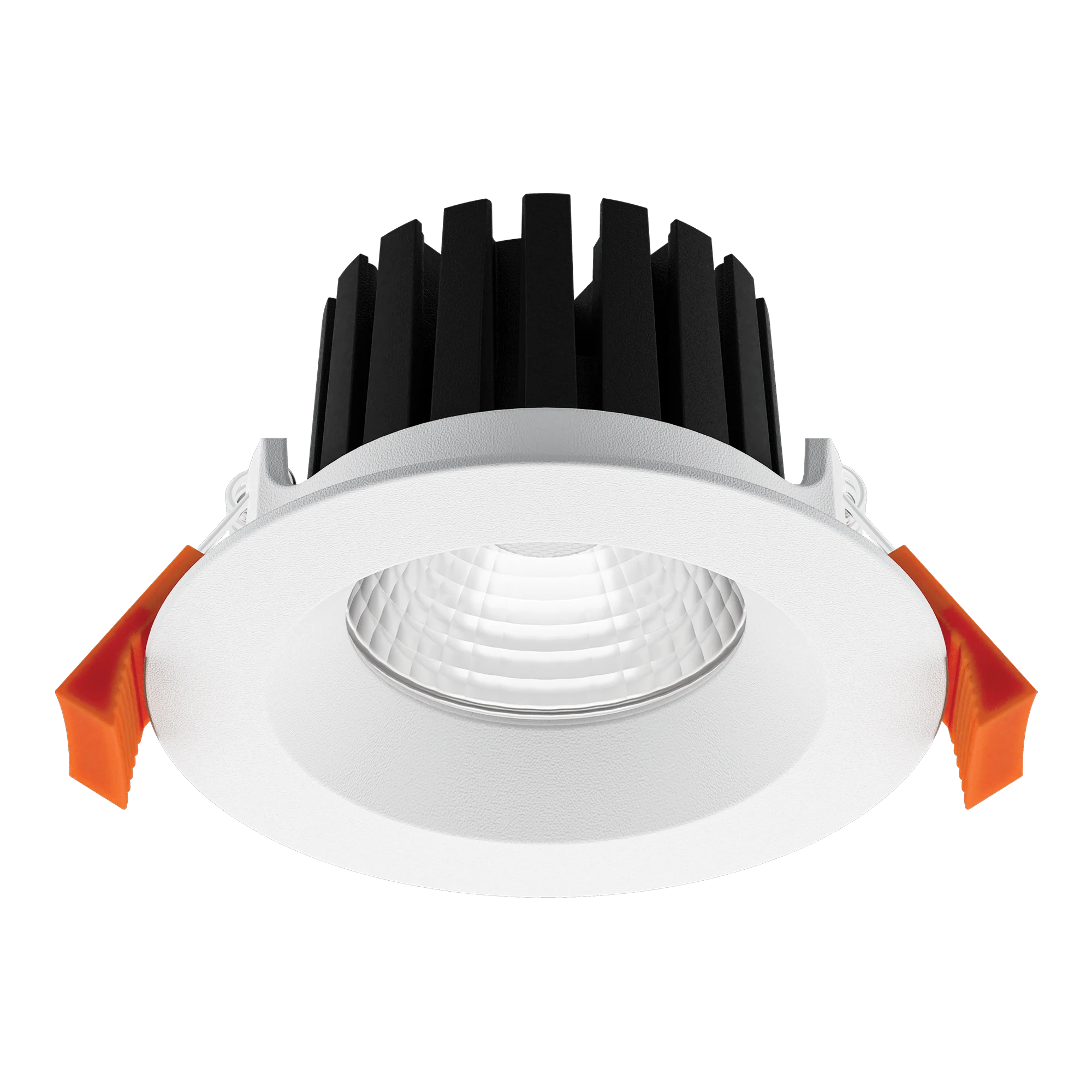

This LED downlight is a high-performance recessed luminaire engineered for versatile indoor and outdoor applications, including wet areas and bathrooms. It features a robust aluminium construction with a powder-coated satin white finish and is rated IP65 for comprehensive protection against dust and water ingress. The integration of a single point high-performance COB LED ensures superior light quality with a high colour rendering index of CRI ≥90, providing accurate colour representation across various environments.
Equipped with advanced TRIO technology, this luminaire allows users to switch between three distinct colour temperatures-3000K warm white, 4000K cool white, and 5000K daylight white-via a dip switch located at the rear of the fitting. The optical system comprises a 60-degree optical reflector and an optic lens diffuser designed to deliver a precise beam angle while maintaining flicker-free operation. With a maximum output of 980 lumens at 10W, the unit offers an energy-efficient lighting solution that significantly reduces power consumption without compromising on luminous intensity.
The mechanical design includes a fixed deep-set frame that minimizes glare and an IC-4 rating, permitting the fitting to be safely covered by or abutted against building insulation. It is designed for a standard 75-80mm cutout and has a compact profile with a 90mm diameter and 49.4mm height, making it suitable for various ceiling types. The inclusion of a dimmable driver ensures compatibility with suitable dimming systems, allowing for precise control over the ambient lighting levels to suit specific requirements.
This lighting solution is built for longevity with a rated lifespan of 50,000 hours and is backed by a 5-year warranty, reflecting its reliability in both residential and commercial settings. The unit operates on a standard 240V supply and comes supplied with a flex and plug for simplified installation. Furthermore, the absence of UV and IR emissions ensures that the luminaire is safe for sensitive environments, while its DALI compatibility provides options for advanced lighting control integration.
PRODUCT TYPE: LED Downlight
APPLICATIONS: Wet areas; outdoor applications; bathrooms
WARRANTY: 5 years
COLOUR: Satin White (powder-coated finish)
IP RATING: IP65 (fully weatherproof)
LUMENS: 870lm (for 3000K); 980lm (for 4000K); 930lm (for 5000K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5000K (daylight white)
VOLTAGE: 240V
WATTAGE: 10W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes (fully dimmable with suitable dimmers)
DALI: Yes
DIMENSIONS: 90mm (diameter) x 49.4mm (height)
CUTOUT: 75-80mm (diameter)
MOUNTING: Recessed
CRI: ≥90
BEAM ANGLE: 60°
LIFESPAN: 50,000 hours
PHOTOMETRIC DATA: Available upon request
OPERATION: TRIO technology with a dip switch at the back of the fitting for changing the colour temperature output
IC RATING: IC-4
FEATURES: Fixed deep set frame; optic lens diffuser; single point high-performance COB LED; no UV/IR emissions; flicker-free operation; flex and plug
REMARKS: Downlight housing has been tested and is rated at IP65; test conducted in an installed application from the underside of the downlight
