This cabinet light offers a compact and efficient lighting solution designed to deliver reliable performance in modern interior applications. Constructed in a polished chrome finish, it integrates seamlessly into a wide range of cabinetry and joinery designs while maintaining a minimal visual footprint. With a slim profile of 70mm in diameter and only 18.5mm in height, it is engineered to provide discreet illumination without compromising on light output or functionality. The fitting utilises fixed LED chips, ensuring durability and efficiency in long-term use.
The luminaire operates at 12V DC with a power consumption of just 3.6W, making it a highly energy-efficient replacement for traditional halogen cabinet lights. It features tri-colour technology, allowing users to select between 3000K warm white, 4000K cool white, and 5000K daylight white with a simple adjustment. Luminous outputs are optimised for each colour temperature, delivering 200lm at 3000K, 230lm at 4000K, and 205lm at 5000K. This flexibility ensures the light can be tailored to suit different interior settings, whether accenting display cabinets or providing functional task lighting.
Designed for versatility, the cabinet light incorporates both recessed and surface mounting options. A cutout of 65mm is required for recessed installation, with a minimum depth of 20mm, making it suitable for a wide variety of cabinetry types. The wide 110° beam angle ensures uniform light distribution across the working area, while the frosted lens helps deliver smooth, even illumination from a single light source. Dimmable functionality adds further control, enabling users to adjust brightness according to the task or ambiance required.
Built for longevity, this cabinet light has a rated lifespan of 50,000 hours and a CRI of ≥80, ensuring consistent performance and accurate colour rendering. It requires a constant voltage 12V DC LED driver, which must be wired in parallel, and is supplied with a 3-year replacement warranty for peace of mind. With its advanced LED technology, multiple mounting options, and selectable colour temperatures, this cabinet light is a high-quality and efficient solution for modern cabinetry and an excellent alternative to traditional halogen lighting.
COLOUR: Polished Chrome
VOLTAGE: 12V DC
LED WATTAGE: 3.6W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 200lm (3000K), 230lm (4000K), 205lm (5000K)
LED TYPE: SMD
CRI: ≥80
BEAM ANGLE: 110°
DIMMABLE: Yes
LIFE SPAN: 50,000 hours
DIMENSIONS: 70mm (diameter) x 18.5mm (height)
CUTOUT: 65mm

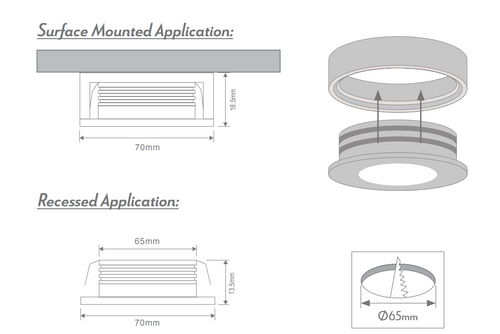

MOUNTING: Recessed; Surface mounted
DRIVER: Not included (12V DC Constant Voltage LED Driver required, wire in parallel)

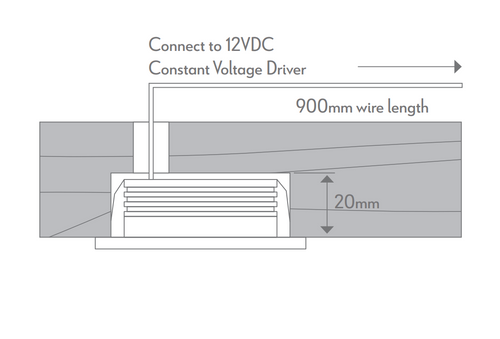

INSTALLATION: Requires 20mm depth for recessed installation
APPLICATIONS: Cabinet lighting; Alternative to traditional halogen sources
WARRANTY: 3 years (replacement)
