This commercial grade LED batten is engineered to deliver robust performance in demanding environments, making it an ideal replacement for traditional T8 and T5 fluorescent battens. Custom designed with a neutral grey finish to seamlessly blend with concrete ceilings, it offers a sleek aesthetic while prioritizing functionality. Constructed from high-impact polycarbonate and featuring a durable polycarbonate diffuser, this luminaire ensures long-term resilience against both environmental exposure and physical interference. Its surface-mounted configuration and quick-fix design allow for rapid and efficient installation, significantly reducing labor time on site.
With a selectable wattage of 18W or 36W and a high efficacy output of up to 4000 lumens, this batten light provides superior illumination tailored to user requirements. The integrated Tri-CCT switch, located on the internal driver, allows seamless switching between Warm White (3000K), Cool White (4000K), and Daylight (5000K), enhancing versatility across commercial, industrial, and public applications. The luminaire delivers a wide 110° beam angle and a high CRI of 80, ensuring accurate color rendering and even light distribution in all operating conditions. It is equipped with an inbuilt constant current LED driver, ensuring stable performance with a power factor of 0.9 at 240V input.
Rated IP65 for full protection against dust ingress and water jets, and IK08 for impact resistance, this fixture is both weatherproof and vandal-resistant. These attributes make it suitable for use in car parks, stairwells, warehouses, and other high-traffic or exposed areas. It operates efficiently in ambient temperatures ranging from -20°C to 40°C, maintaining consistent performance and longevity with a rated life span of 30,000 hours. The LED modules are fixed within the fitting, further enhancing durability and minimizing maintenance.

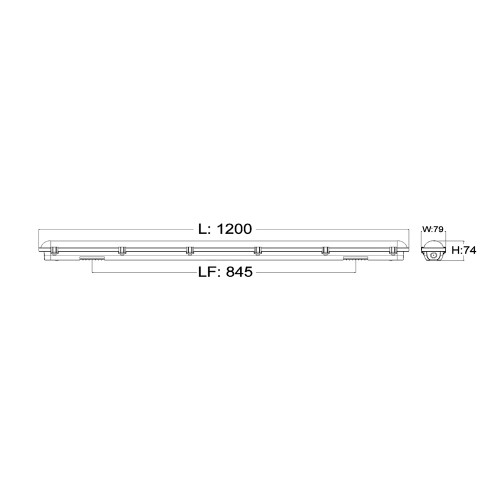

The fixture includes two stainless steel grade 304 mounting brackets and one IP65-rated connector, ensuring reliable installation and connection integrity. With a compact profile measuring 1200mm in length, 79mm in width, and 74mm in height, this LED batten is a compact yet powerful lighting solution, backed by a three-year warranty for assured performance.
TYPE: LED Batten
COLOUR: Grey
WARRANTY: 3 years
IP RATING: IP65 (fully weatherproof)
IK RATING: IK08 (vandal resistant)
SWITCH: Tri-CCT switch on internal driver, wattage switch inside driver
MATERIAL: Polycarbonate
LUMENS: Up to 4000lm
COLOUR TEMP: Switchable between Warm White (3000K), Cool White (400K) and Daylight (5000K)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes
CRI: 80
BEAM ANGLE: 110°
LIFE SPAN: 30,000 hours
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: No
HEIGHT: 74mm
WIDTH: 79mm
LENGTH: 1200mm
WATTAGE: 18/36W
POWER FACTOR: 0.9
VOLTAGE: 240V
DRIVER: Inbuilt constant current LED driver included (output: 90V / 380mA , input: 180mA)
INSTALLATION: Surface mounted
INCLUDES: 2 x Mounting brackets(Stainless steel grade 304), 1 x Connector(IP65)
OPTIONAL: Use as is, or also suitable for 2-way switching, 3 wire motion or microwave sensors
