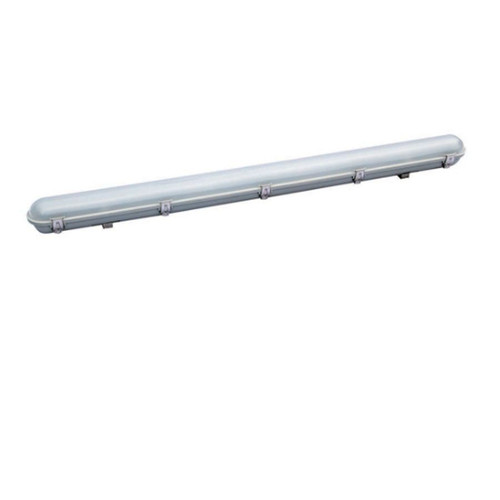

This LED batten light is engineered to deliver reliable and efficient illumination in demanding environments where durability and consistent performance are essential. Designed with a 1193mm form factor, it provides high-output lighting up to 4650 lumens while maintaining excellent energy efficiency. The integrated LED system ensures stable light output with a colour rendering index of 80, supporting accurate visual clarity across a wide range of applications.
Constructed from a robust polycarbonate housing with a frosted polycarbonate diffuser, this fitting offers enhanced impact resistance and uniform light distribution. With an IK10 impact rating and IP65 ingress protection, it is fully weatherproof and resistant to dust, moisture, and physical impacts, making it suitable for harsh indoor and semi-outdoor environments. The 120° beam angle ensures broad and even illumination, reducing shadowing and improving overall spatial visibility.
This batten light features Tri-CCT functionality, allowing users to select between 3000K, 4000K, and 5000K to suit different lighting requirements. Additionally, the adjustable wattage function enables power selection from 21W to 39W, providing flexibility in balancing brightness and energy consumption. Operating within an ambient temperature range of -30°C to 50°C, it is designed to perform consistently across extreme conditions without compromising efficiency or longevity.
With a long operational lifespan of 30000 hours and non-dimmable driver integration, this fitting offers a low-maintenance lighting solution for commercial and industrial applications. It supports ceiling-mounted and suspended installation configurations, ensuring adaptability across various site requirements. Backed by LM80 and RCM compliance and a 5 year warranty, this batten light represents a dependable and high-quality solution for warehouses, supermarkets, carparks, and other high-demand environments.
COLOUR: White
MATERIAL: Polycarbonate housing with frosted polycarbonate diffuser
DIMENSIONS: 1193mm (length) x 94mm (width) x 90mm (height)

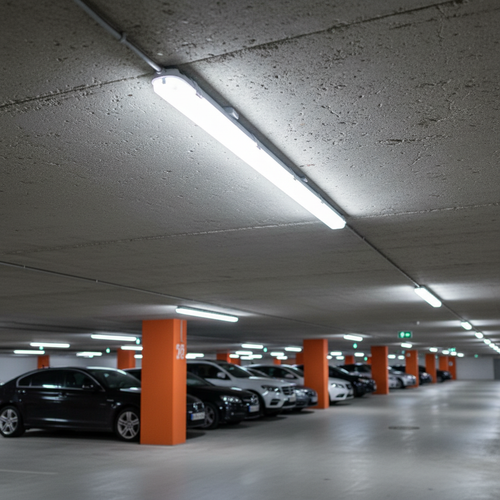

APPLICATIONS: Warehouses, supermarkets, carparks, outdoor and vandal-prone areas
IP RATING: IP65 (fully weatherproof)
IK RATING: IK10 (impact and vandal proof)
LUMENS: 4650lm
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
GLOBE: LED (includes fixed LED chips in fitting)
CRI: 80
BEAM ANGLE: 120°
LIFE SPAN: 30000 hours
AMBIENT TEMP: -30°C to 50°C
DIMMABLE: No
WATTAGE: 40W (adjustable from 21W to 39W)
VOLTAGE: 220-240V AC 50Hz

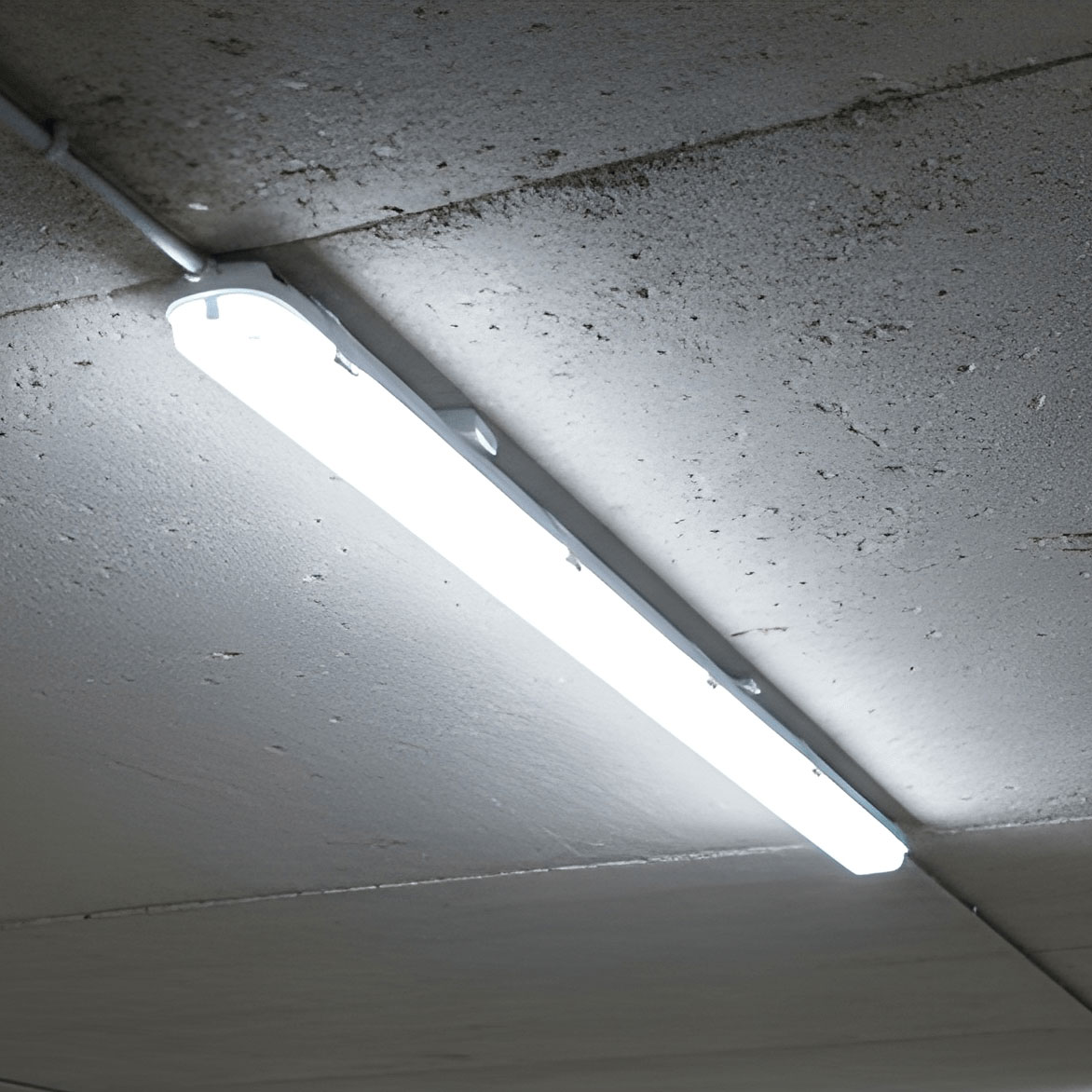

MOUNTING: Ceiling mounted, suspended
COMPLIANCE: LM80, RCM
PHOTOMETRIC DATA: Available upon request
WARRANTY: 5 years
