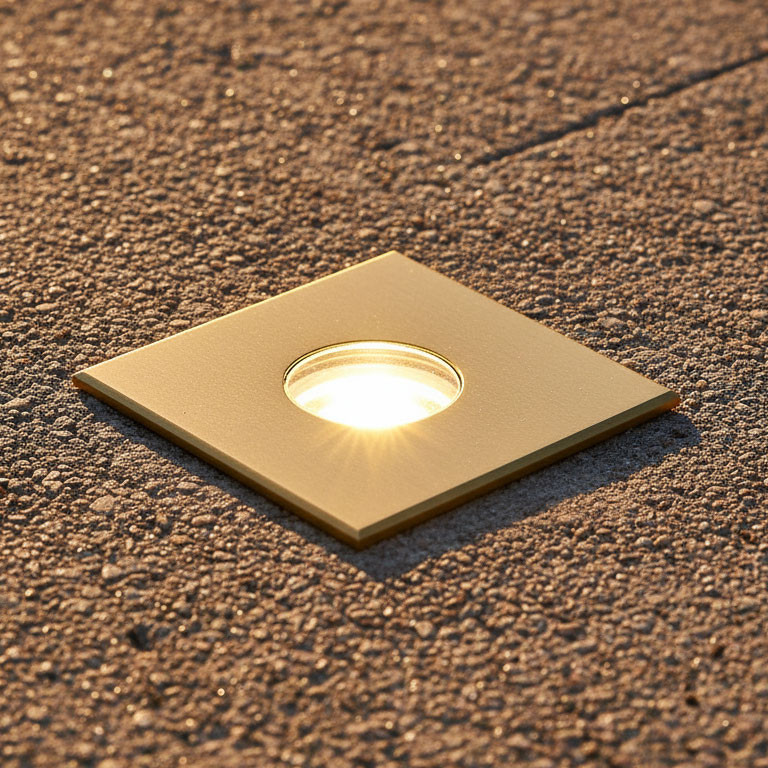

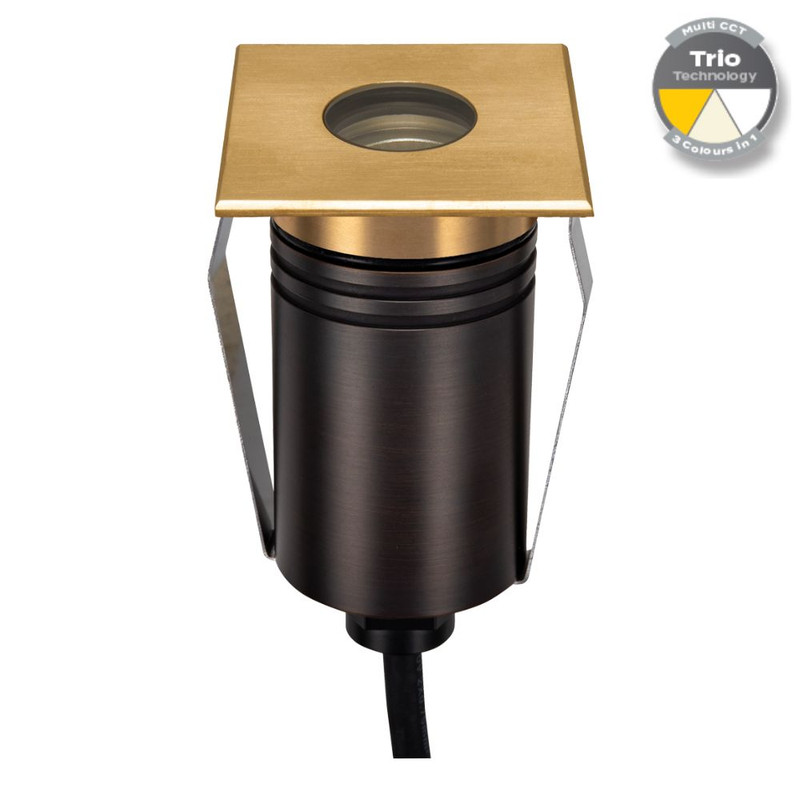

This inground light is engineered for refined architectural illumination in exterior environments, delivering durability, visual comfort and precise light control. Constructed from brass with a 55mm square fascia and a refined brushed brass finish, it recesses neatly into hardscape or landscape surfaces to provide discreet illumination for pathways, wall lines, entries and garden features. Its compact form integrates cleanly into both contemporary and classical outdoor designs while maintaining a minimal daytime appearance.
Optimised for flexibility, the fitting features Tri-CCT technology, allowing colour temperature selection between 3000K, 4000K and 5500K. Powered by a 2.5W CREE LED module, it produces up to 150lm and operates on 12/24V DC constant voltage systems. With a 36° optical beam, the luminaire provides controlled and effective accent lighting, while a CRI of ≥90 ensures accurate colour rendering across surrounding materials and architectural finishes. The robust design is rated IP67 for full water protection and IK10 for maximum impact resistance, making it suitable for harsh outdoor environments and public spaces.
The recessed assembly measures 55mm in diameter with a body height of 82mm, requiring a 43mm cutout without cannister or 48mm with cannister. The LED system is non-dimmable and engineered for a 50,000-hour service life, ensuring long-term reliability with minimal maintenance. Optional optical accessories, including honeycomb, linear and opal diffusers as well as 19° and 60° lenses, allow further refinement of beam performance and visual comfort where required.
Designed for parallel wiring, the luminaire requires a constant voltage LED driver and is compatible with both AC and DC driver types. Engineered with longevity, efficiency and environmental protection in mind, this inground light provides a high-quality solution for demanding exterior lighting applications, offering dependable performance and precise illumination control in residential, commercial and landscape environments.
COLOUR: Brushed Brass
MATERIAL: Brass
IP RATING: IP67 (waterproof, can be immersed in water to 1m)
IK RATING: IK10 (impact and vandal resistant)
DIMENSIONS: 55mm (width) x 82mm (height)
CUTOUT: 43mm (without cannister), 48mm (with cannister)
CRI: ≥90
GLOBE: LED (includes fixed LED chips in fitting)
LED TYPE: CREE
LED WATTAGE: 2.5W
VOLTAGE: 12/24V DC
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white), 5500K (daylight white)
LUMENS: 135lm (3000K), 145lm (4000K), 150lm (5500K)
BEAM ANGLE: 36°
DIMMABLE: No
LIFE SPAN: 50,000 hours
MOUNTING: Inground recessed
CLASSIFICATION: Class III
OPERATING TEMP: -20°C~40°C
DRIVER: Not included
REQUIRES: 12 or 24V constant voltage LED driver (wire in parallel)
COMPATIBILITY: Compatible with AC or DC constant voltage drivers
OPTIONAL ACCESSORIES: Honeycomb, linear and opal diffusers, 19° and 60° lenses (sold separately, not included)
PHOTOMETRIC DATA: Available upon request
WARRANTY: 5 years (replacement)
