This hand dryer is a high-performance solution engineered for high-traffic facilities, featuring a sophisticated U-shaped hands-through design that ensures rapid drying within 8 to 10 seconds. Constructed with a high-impact ABS cover and a robust PA6V0 plastic base plate, the unit incorporates Biocote antimicrobial and antibacterial protection to maintain superior hygiene standards. The system is powered by a high-speed class F universal brush motor with adjustable RPM ranging from 19,000 to 30,000, delivering air speeds between 252 and 350 km/h for optimal moisture removal.
Technical efficiency is prioritized through an adjustable wattage range of 420W to 1500W and a 400W heating element equipped with an independent ON/OFF switch to manage energy consumption effectively. The device utilizes dual infrared sensors for automatic activation and includes a 30-second safety timer alongside an auto-check diagnostic lighting system that monitors operational status and tank capacity. Advanced filtration is provided by a HEPA media filter with activated carbon, complemented by Ion Hygienic technology to neutralize pathogens and ensure the delivery of purified air during the drying process.
Environmental management is integrated via two water collection tanks with capacities of 0.2 L and 0.45 L, preventing water runoff onto floors and featuring both optical and acoustic full-tank warnings for maintenance personnel. The unit is designed for surface mounting at a recommended height of 73 cm and includes a quick-mount/dismount kit with a plug-in system for expedited electrical connection and a drainage pipe for waste water management. Operating at a noise level between 72.5 and 76.5 dBA, the dryer maintains a balance between high-velocity performance and acoustic comfort in commercial environments.
Compliance with international standards is verified through CE, GS, RoHS, and CB Scheme certifications, ensuring the device meets rigorous safety and quality benchmarks for global applications. With its IP23 rating and Class I electrical insulation, this hand dryer represents a durable, energy-efficient, and technologically advanced hygiene solution for modern public and commercial restrooms.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: High traffic facilities
MADE IN: Europe
WARRANTY: 7 years (3 years labour, 7 years parts)
COMPLIANCE: EN 60335-1; EN 60335-2-23; EN 61000-3-2; EN 61000-3-3
COLOUR: Black (finish); white (inner)
MATERIAL: High impact ABS (cover); plastic PA6V0 (base plate)
IP RATING: IP23
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 420W-1500W (adjustable)
MOTOR: 420W-1100W (adjustable); high-speed class F universal brush motor

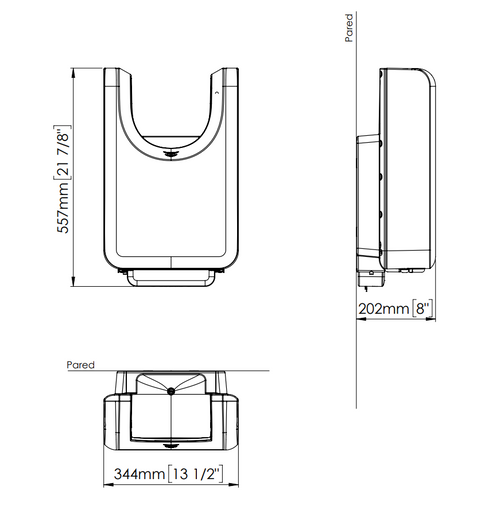

DIMENSIONS: 557mm (height) x 344mm (width) x 202mm (depth)
WEIGHT: 7.1kg
MOUNTING: Wall mounted (recommended height H = 73 cm)
CLASS: I
OPERATION: Automatic infrared sensor activation; hands-through design; starts when hands enter detection area; dries hands in 8-10 seconds; stops 2 seconds after hands are removed; 30-second safety timer; auto-check lighting for diagnosis (green - stand by, yellow - machine running, blue - full tank, red - check engine); optical and acoustic full tank warning
NOISE: 72.5-76.5 dBA
MOTION SENSOR: Yes (IR sensors - both upper sides)
INSTALLATION: Plug-in system for fast connection; quick-mount/dismount kit; connection pipe to waste water drain included
WATER TANK: Removable (so can be emptied - can optionally be connected directly to waste pipe if required)
FEATURES: Energy efficient; environmentally friendly; hygienic and stylish design; U-shaped design; Biocote antimicrobial and antibacterial protection; two water collection tanks (0.2 L upper and 0.45 L lower)
CONSUMPTION: 3.2A-6.4A
AIR TEMPERATURE: 40 °C (at 10 cm distance/21°C)
RPM: 19,000-30,000
AIR SPEED: 252-350km/h
DRYING TIME: 8-10 seconds
HEATING ELEMENT: 400W with ON/OFF switch
FILTER: HEPA media filter with activated carbon
IONIZER: Included (Ion Hygienic technology)
COVER THICKNESS: 3mm
CERTIFICATIONS: CE; GS; RoHS; CB Scheme; G-Mark (GSO Certificate of Conformity)
