This ground light kit is a sophisticated recessed illumination system designed for high-performance outdoor and landscape applications. Each of the six included units features a 304 brushed stainless steel trim and a durable polycarbonate body, ensuring structural integrity and resistance to environmental stressors. The system operates on a 12V DC low-voltage circuit, powered by an included 10W driver with a standard cord and plug for streamlined installation.
Engineered with an IP67 ingress protection rating, these luminaires are fully waterproof and capable of temporary immersion in water up to one meter in depth. The integrated LED technology delivers a warm white 3000K colour temperature with a luminous flux of 75lm per fitting, providing consistent and aesthetically pleasing illumination. A wide 120-degree beam angle ensures broad light distribution, while the 80 CRI rating guarantees accurate colour rendering within the illuminated environment.
Technical specifications include a compact 45mm diameter with a 27mm height, requiring a precise 35mm cutout for recessed mounting in ground or deck surfaces. The units are designed to withstand a maximum walk-over pressure of 100kg, making them suitable for pedestrian traffic areas. Each light is equipped with dual 500mm leads to facilitate a simple plug-and-play connection, significantly reducing the complexity of field wiring and ensuring a secure electrical interface.
This lighting solution is fully dimmable, allowing for precise control over ambient light levels to suit specific architectural or landscape requirements. The inclusion of a Class III safety rating and a one-year warranty underscores the manufacturer's commitment to safety and long-term reliability. Compatible with optional smart switches and various connector accessories, this kit offers a versatile and scalable solution for modern exterior lighting projects.
PRODUCT TYPE: Ground Light
APPLICATIONS: Outdoor; garden and landscape lighting
WARRANTY: 1 year
QUANTITY: 6
COLOUR: Satin Chrome (trim); Silver/Grey
MATERIAL: 304 brushed stainless steel (trim); polycarbonate (body)
IP RATING: IP67 (waterproof, can be immersed in water to 1m)
LUMENS: 75lm (each)
COLOUR TEMP: 3000K (warm white)
VOLTAGE: 12V DC
LED WATTAGE: 6 x 1W (6W total)
DRIVER: Included (10W 12V DC driver with cord and plug)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes
DIMENSIONS: 45mm (diameter) x 27mm (height)
CUTOUT: 35mm (diameter)

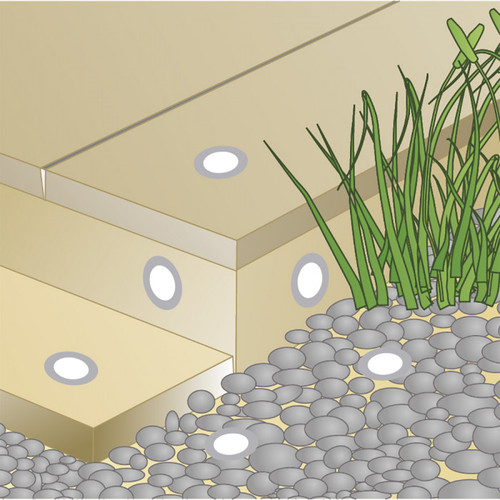

MOUNTING: Recessed; in-ground
CLASS: III
CRI: 80
BEAM ANGLE: 120°
CABLE: Yes (2 x 500mm leads per light); 1770mm (driver input cable); 500mm (driver output cable)
OPERATION: Easy plug and play system
ACCESSORIES: Smart Switch (compatible - sold separately); Connector cable (sold separately); Tee connector (sold separately)
WALK OVER PRESSURE: 100kg max
