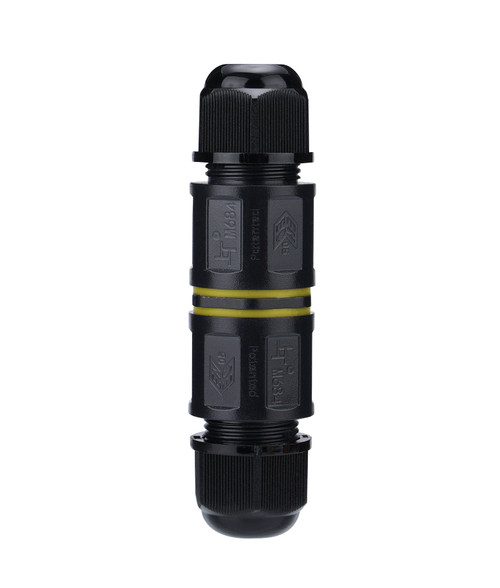

This cable connector is a robust and high-performance 2-way cable extension solution engineered for secure electrical connections in demanding environments. Designed with a durable black housing, it utilises a combination of nylon and polycarbonate materials, complemented by a brass conductor to ensure excellent electrical conductivity and long-term mechanical integrity. The compact form factor, measuring 94.19mm in length and 24.96mm in diameter, allows for efficient integration into tight installation spaces while maintaining structural strength.
Operating at a rated voltage of 450V AC and a current capacity of 24A, this connector is suitable for a wide range of low to medium voltage electrical applications. It supports a rated connecting capacity of 0.5-2.5mm², making it compatible with commonly used cable sizes in lighting, industrial, and outdoor electrical systems. The connector is specifically designed to accommodate rubber cable diameters between 8-11mm, ensuring a precise and secure fit that minimises mechanical stress and electrical resistance at the connection point.
Engineered with an IP68 rating, this connector provides a fully sealed enclosure that protects internal connections against water ingress and environmental contaminants, including conditions where temporary immersion may occur. The sealing performance is achieved through a combination of precision-moulded components and integrated sealing rings, which are further reinforced by a screw cap tightening system. This design ensures consistent compression of sealing elements, maintaining a reliable barrier against moisture and dust over extended periods of use.
Installation is streamlined through a practical internal terminal connection system, supported by clearly defined stripping lengths of 25mm for the external sheath and 7mm for internal conductors. The connector includes additional sealing rings to accommodate cable variations and enhance adaptability during installation. This product delivers a dependable and professional-grade connection solution, backed by a 1 year replacement warranty, making it an ideal choice for applications requiring durability, safety, and long-term performance. IMPORTANT: please ensure you contact our staff to confirm whether this accessory is compatible with the product you purchased. Accessories are non-returnable if purchased without confirming compatibility.
COLOUR: Black
MATERIAL: Nylon and polycarbonate with brass conductor
IP RATING: IP68 (waterproof, can be immersed in water)
VOLTAGE: 450V AC
CURRENT: 24A

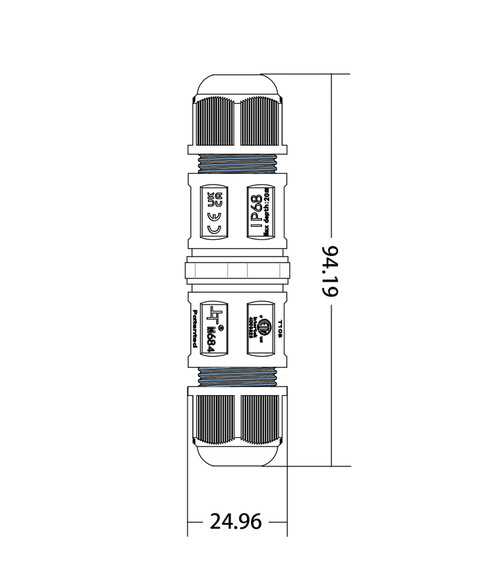

DIMENSIONS: 94.19mm x 24.96mm (diameter)
WARRANTY: 1 year (replacement)
CONNECTOR TYPE: 2-way cable extension quick connector
RATED CONNECTING CAPACITY: 0.5-2.5mm²
CABLE DIAMETER: 8-11mm (rubber)
STRIPPING LENGTH: External 25mm; internal 7mm
INCLUDES: Sealing rings (extra 8-11mm rubbers included)
FEATURES: Waterproof quick connector; IP68 sealed design; screw cap tightening system; internal terminal connection system
