This ceiling fan is a compact smart DC ceiling fan engineered to deliver efficient air circulation and integrated illumination within low-profile interior and covered outdoor environments. Designed with a slimline 128mm height and a 500mm blade span, it is optimised for spaces where ceiling clearance is limited without compromising airflow performance. The fan is constructed with durable ABS blades, a metal body, and a PMMA diffuser cover, ensuring long-term structural stability and consistent light diffusion. Finished in matt black, the fan presents a modern, architectural aesthetic suitable for contemporary residential applications.
The fan is driven by a high-efficiency 9W brushless DC motor that provides smooth, quiet, and energy-efficient operation across six selectable speed levels. At maximum output, it delivers up to 5500m³/hr of airflow, with precisely graduated speeds allowing fine control of air movement for thermal comfort in varying conditions. The 20° blade pitch is carefully engineered to maximise airflow efficiency while maintaining low acoustic output, making the fan particularly suitable for bedrooms, living areas, and study spaces where quiet performance is essential.
Integrated LED lighting is provided via a 20W fixed LED module that produces 1800 lumens of uniform illumination with a rated lifespan of 35,000 hours at Ta25°C. The light output is fully dimmable and features variable colour temperature control from 2700K warm white through to 6000K daylight white, allowing users to adapt the lighting ambience to different times of day and functional requirements. The PMMA diffuser ensures even light distribution with reduced glare, supporting visual comfort in everyday use.
Control is delivered through an included WiFi-enabled remote, offering six fan speeds, dedicated sleep and breeze modes, reverse function for summer and winter operation, variable dimming, CCT selection, and programmable timers of 1, 4, or 8 hours. The fan can also be operated via compatible smart applications for enhanced convenience and automation. Designed for indoor and covered outdoor use and supplied with a comprehensive 6-year warranty, this ceiling fan represents a reliable, energy-efficient, and technically refined solution for modern airflow and lighting needs when installed by a licensed electrician.
COLOUR: Matt Black
MATERIAL: ABS (blades), metal (body), PMMA diffuser cover
BLADES: 5
BLADE SPAN: 500mm (21 inch)

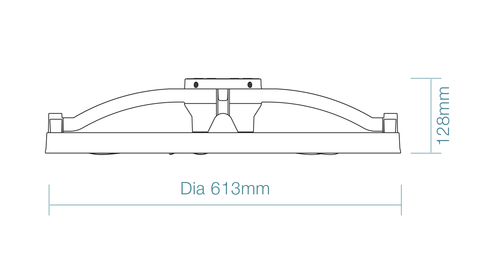

DIMENSIONS: 613mm (diameter) x 128mm (height)
BLADE PITCH: 20°
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 9W
AIRFLOW: 5500m³/hr (speed 6, highest); 4800m³/hr (speed 5); 4000m³/hr (speed 4); 3250m³/hr (speed 3); 2550m³/hr (speed 2); 1800m³/hr (speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 20W
COLOUR TEMP: 2700K (warm white) to 6000K (daylight white)
LUMENS: 1800lm
LIFE SPAN: 35,000 hours @ Ta25°C
DIMMABLE: Yes (variable dimming)
REMOTE CONTROL: Yes (WiFi; 6 speed levels + sleep mode + breeze mode; reverse; dimming; CCT selection; timer 1h/4h/8h)
OPERATION: 6 speed fan control with additional sleep and breeze modes; summer and winter reverse function
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: Remote control
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Brushless quiet and efficient DC motor; low ceiling slimline design
WARRANTY: 6 years (3 year in-home warranty + additional 3 year replacement on motor only)
NOTE: Warranty void unless installed by a licensed electrician
