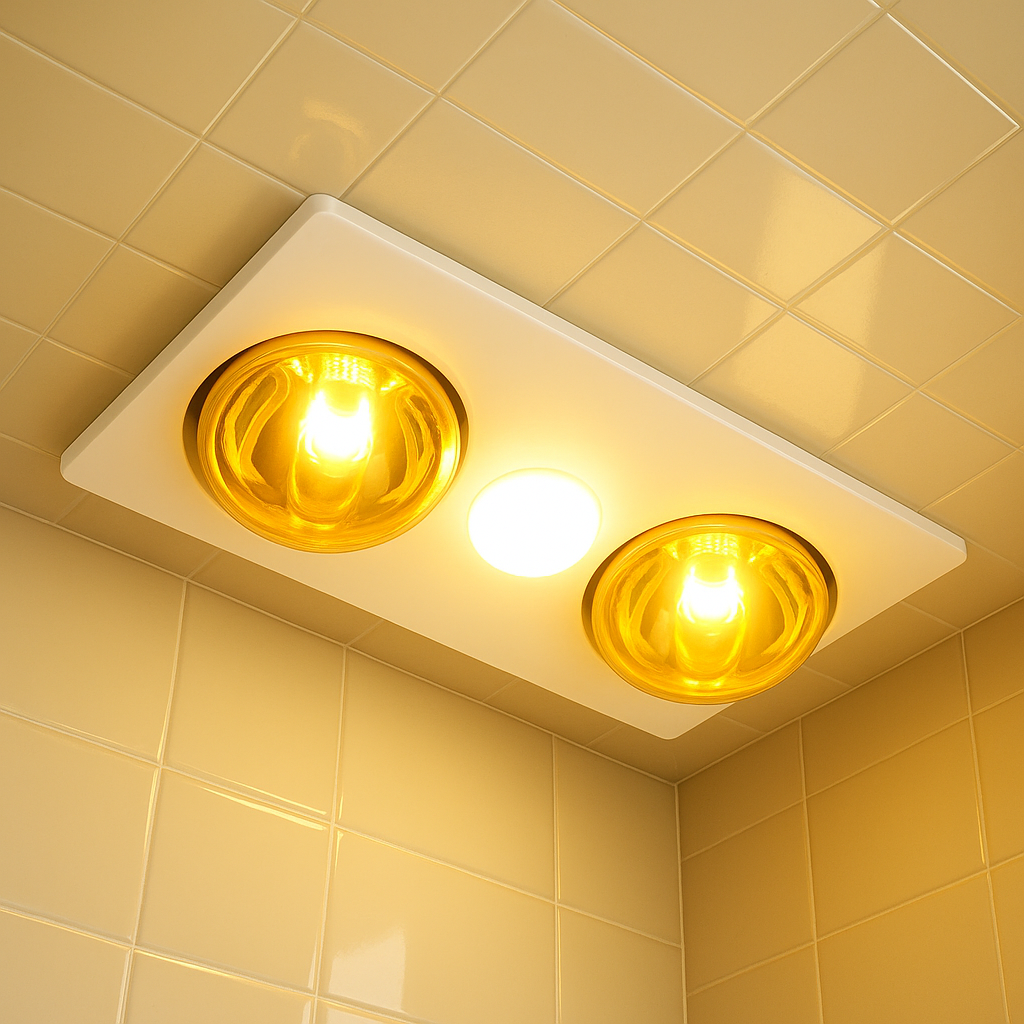

This bathroom heater fan is a high-performance 3-in-1 solution designed to enhance thermal comfort, air quality, and lighting in modern bathrooms and ensuites. Engineered with an energy-efficient 20W DC motor, it delivers powerful yet quiet operation while significantly reducing energy consumption compared to traditional AC motors. Its integrated fan system provides effective extraction with a maximum airflow capacity of up to 330m³/hr, ensuring rapid removal of steam and moisture to help maintain a dry, mould-resistant environment.
The unit features two replaceable 275W infrared heat globes that provide immediate and directional warmth, ideal for colder climates or post-shower use. Complementing its heating function is a replaceable 9W E27 LED globe offering tri-colour illumination at 3000K (warm white), 4200K (cool white), and 6000K (daylight white), with a total output of 900 lumens. This lighting flexibility allows users to adjust the ambience to their personal preferences or time of day, enhancing both visual comfort and functionality.
Precision-engineered for streamlined integration, the fascia dimensions of 230mm x 400mm and a cutout size of 205mm x 375mm ensure a discreet yet effective ceiling installation. The unit includes a wall control panel for simple, intuitive operation and comes equipped with swing clips and screws for secure mounting. A 100mm outlet diameter supports effective ducting, and the inclusion of a built-in thermal cutoff switch provides added protection by automatically halting operation if overheating is detected.
Finished in a sleek matt white, this Class I device is rated IPX2 for safe indoor use and backed by a 3-year warranty. Its ergonomic design not only promotes efficient air and light flow but also complements a wide range of bathroom aesthetics. Combining advanced airflow engineering with modern aesthetics and energy-saving performance, this 3-in-1 bathroom heater fan is a dependable and refined choice for enhancing comfort and hygiene in residential wet areas.
COLOUR: Matt White
IP RATING: IPX2
DIMENSIONS: 400mm x 230mm
CUTOUT: 205mm x 375mm
VOLTAGE: 220-240V AC / 50Hz
MOTOR: 20W DC motor (ball bearing)
AIRFLOW: Up to 330m³/hr
GLOBE: E27
GLOBE INCLUDED: Yes
GLOBE WATTAGE: 9W (max per globe)
NUMBER OF GLOBES: 1
COLOUR TEMP: 3000K (warm white), 4200K (cool white), 6000K (daylight white)
LUMENS: 900lm
HEAT TYPE: 2 x 275W IR heat globes (replaceable)
NOISE: <40dB
OUTLET DIAMETER: 100mm
WALL CONTROL: Yes (3 gang wall control)
CLASS: Class I (1)
FEATURES: Built-in safety thermal cutoff for overheating; energy saving DC motor; quiet operation; efficient extraction of moisture and steam; modern ergonomic fascia design
INCLUDES: A60 LED globe, 1.5m flexible duct, grille, 100mm duct adaptor, swing clips with screws, draft stopper, wall controller
INSTALLATION: Must be installed by a licensed electrician
WARRANTY: 3 years
