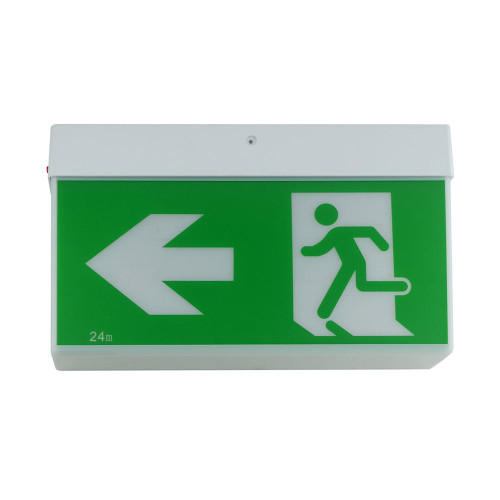

This emergency exit sign is a compact, maintained LED fitting designed for dependable internal egress indication in line with AS/NZS 2293 requirements. Its enclosure is formed from flame-retardant polycarbonate in a green and white colour scheme, giving a combination of low weight, good impact resistance and long-term durability suitable for continuous service in commercial and institutional buildings. With an IP20 ingress protection rating, it is intended for indoor environments where the luminaire is shielded from direct moisture, and the specified operating temperature range of 0°C to 40°C supports stable operation under typical interior conditions. The fixed LED light source is rated for 50,000 hours of use, which significantly reduces relamping frequency and supports lower lifecycle maintenance costs.
In terms of electrical performance, the unit functions as a 3W maintained emergency luminaire on a 240V supply (220–240V, 50–60Hz), keeping the exit legend illuminated during normal mains operation and automatically switching to emergency mode when power is lost. The LED chip is permanently integrated into the fitting, removing lamp replacement as a variable and helping maintain stable photometric output over its service life. With a correlated colour temperature of 6000K (daylight), the luminaire provides high contrast between symbol and background, improving the speed and accuracy of exit recognition in dim or smoke-affected environments. The combined optical and electrical design delivers a rated viewing distance of 24m, consistent with common design criteria for corridors and open-plan escape routes.
Emergency operation is supported by a LiFePO₄ (lithium iron phosphate) rechargeable battery system using a single 3.2V, 600mAh cell engineered for long cycle life, good charge retention and inherent thermal stability. After a full charging period of 16 hours, the luminaire provides a minimum of 3 hours emergency illumination, meeting the duration requirements defined in AS/NZS 2293 and maintaining legibility of the exit legend during prolonged power interruptions. The product is assigned emergency classifications of C0:D4 and C90:D3.2, enabling accurate spacing design and compliant system layout by lighting professionals. Conformity is further supported by Aust/NZ Approval No. AA-GMA-505318, indicating that the device has undergone formal assessment against the relevant safety and performance standards.

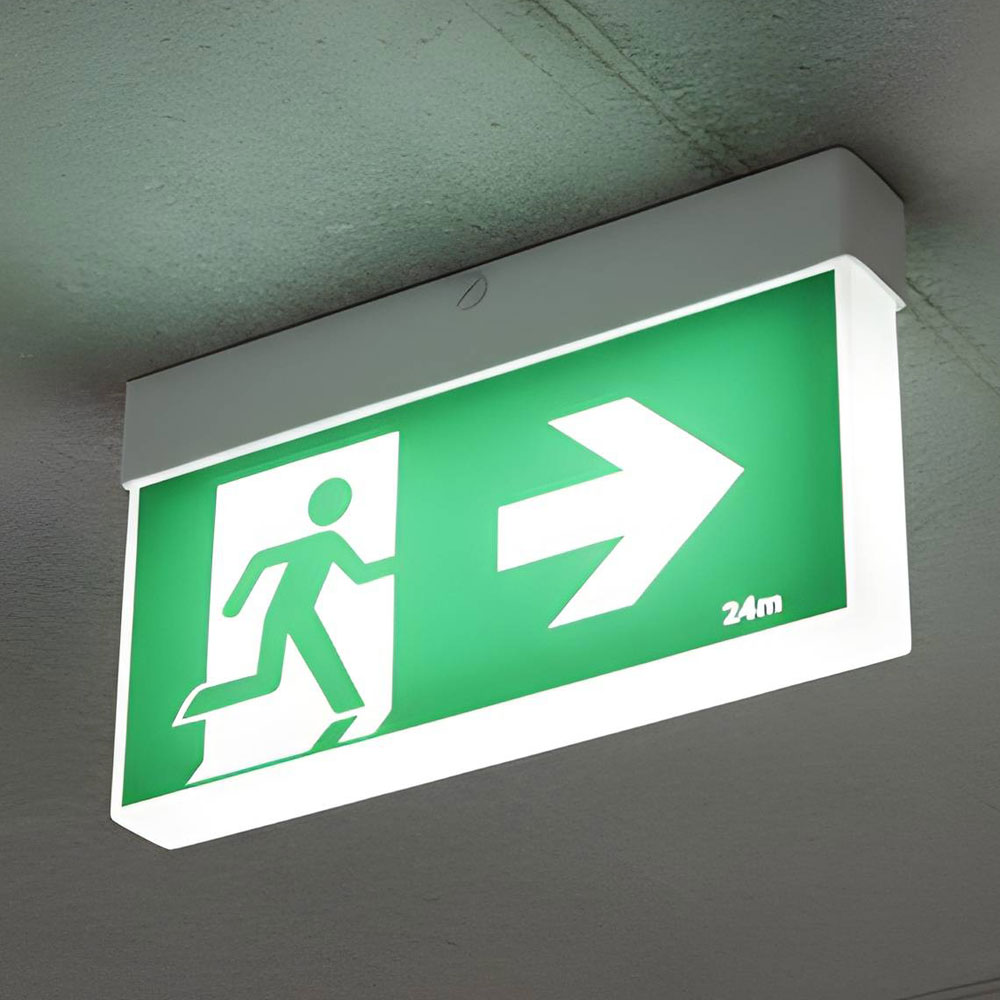

For installation, the fitting is configured as an integrated solution capable of wall, ceiling and suspended mounting, simplifying specification across multiple site conditions and project types. It is supplied with a complete set of pictogram inserts, allowing on-site selection of the required directional legend and reducing the need to stock multiple variants. The enclosure dimensions of 211mm in height, 62.5mm in width and 358mm in length are chosen to balance clear visibility with unobtrusive integration into interior architecture, while the recommended mounting height of 2.7m matches typical commercial ceiling heights. A 2-year warranty reinforces the robust optical, electrical and mechanical design, positioning this emergency exit sign as a high-quality, reliable component within any compliant emergency wayfinding system.
TYPE: Emergency Exit Sign
COLOUR: Green and White
WARRANTY: 2 years
IP RATING: IP20 (indoor only)
MATERIAL: Flame-retardant polycarbonate
COLOUR TEMP: 6000K (daylight)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
LIFE SPAN: 50,000 hours
AMBIENT TEMP: 0°C to 40°C
HEIGHT: 211mm
WIDTH: 62.5mm
LENGTH: 358mm
WATTAGE: 3W (maintained)
VOLTAGE: 240V (220–240V 50–60Hz)
INSTALLATION: Wall, ceiling and suspended mounted
INCLUDES: Complete with all in one solution including all pictogram inserts
APPROVAL: Compliant to AS/NZS 2293, Aust/NZ Approval No AA-GMA-505318
CHARGING TIME: 16 hours
BATTERIES: LifePo4, 1 cell 3.2v, 600mAh rechargeable pack
CLASSIFICATION: C0:D4 C90:D3.2 Emergency Classification (see image)
DURATION: 3 Hours (AS/NZS 2293)
VIEWING DISTANCE: 24m
MOUNTING HEIGHT: 2.7m
ADAPTOR KIT: Recessed adaptor kit available (sold separately - please contact us if required)
