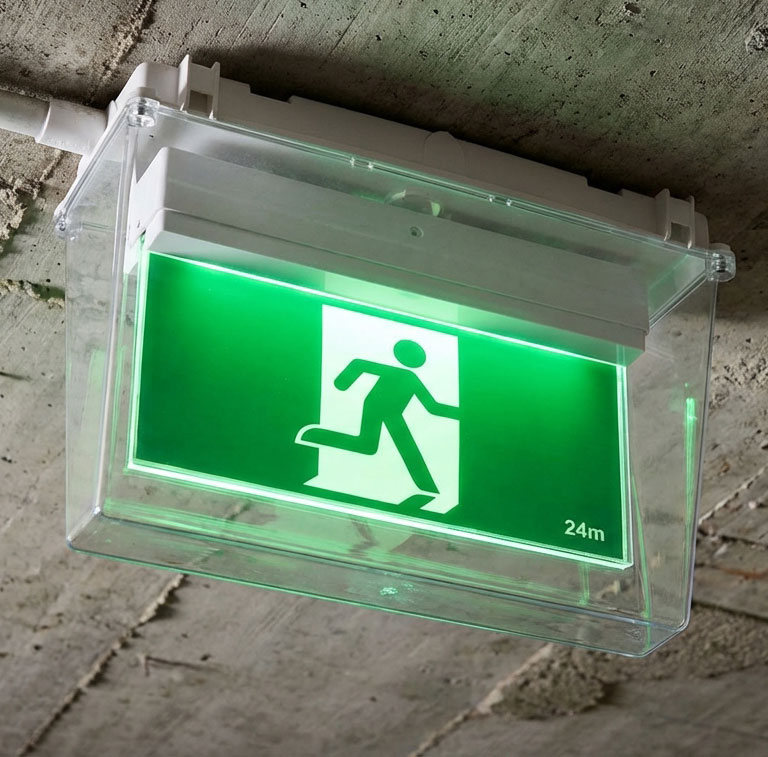

This industrial strength exit light is is designed for both normal operation as well as emergency mains power failure. It is extremely sturdy and is designed to withstand external environments and harsh weather conditions. It produces excellent illumination with a long lasting battery for years of dependable exit lighting. Its robust, water-tight polycarbonate enclosure provides excellent protection against water, dust and impact and is well suited for a range of outdoor applications such as car parks and exposed stairwells, as well as indoor areas such as swimming centres, construction zones and train stations.
PRODUCT TYPE: Industrial Grade Weather Resistant Exit Sign – Designed for both normal operation as well as emergency mains power failure
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP65 (weather resistant)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 50,000 hours
DIMENSIONS: 430mm x 310mm x 160mm
WEIGHT: 2.5kg
WATTAGE: 4W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall or ceiling (single or double side application)
INCLUDES: Diffuser, all variations of running man pictogram, large terminal block with cable entry
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Stadiums, warehouses, car parks, public buildings, tunnels and train stations.
CLASSIFICATION: C0 D6.3 C90 D3.2
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 24m
OPERATING TEMP: 1° to 40°C
