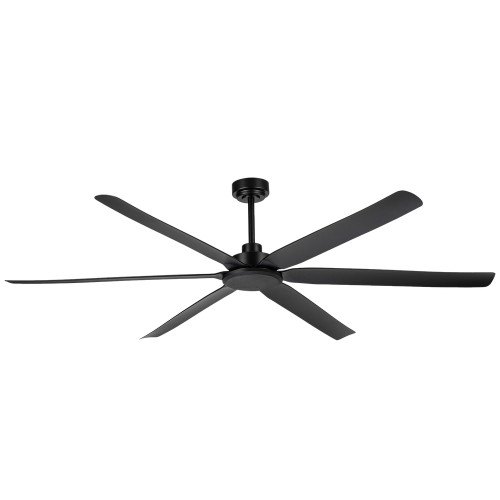

This ceiling fan is engineered as a high-capacity air circulation solution for expansive residential and architectural spaces, finished in a refined matt black colour that delivers a modern, low-glare aesthetic. The precision-balanced 6-blade aerodynamic configuration operates across an 2032mm (80-inch) sweep, optimised with an 11° blade pitch to maximise volumetric airflow while maintaining stable, low-turbulence operation. Constructed entirely from high-grade ABS across the blades, motor housing and canopy, the fan offers a combination of structural rigidity, corrosion resistance and long-term dimensional stability.
Driven by an advanced 55W DC motor, the system achieves a maximum rotational speed of up to 160 RPM while maintaining exceptional energy efficiency of up to 350m³/hr per watt. At peak performance on Speed 6, the fan delivers an expansive airflow output of 19000m³/hr, with carefully stepped airflow outputs across all six speeds to ensure precise environmental control at every operating level. The DC motor architecture ensures quiet operation, reduced power consumption and consistent torque across all speed ranges.
Smart control functionality is fully integrated through WiFi connectivity, allowing operation via Smart Life app alongside the supplied radio-frequency remote control. The control system provides six discrete speed settings, fully reversible summer and winter modes, programmable breeze and sleep functions, and timer-off settings at 1, 4 or 8 hours. Signal transmission operates on 433MHz for stable long-range performance, while power is supplied via the included A23 12V battery. The motor and drive system are electronically regulated to ensure smooth acceleration, deceleration and long-term electrical reliability.
Installed with a lowest profile height of 325mm and a 150mm diameter ceiling canopy with 10° hangsure allowance, the fan is suitable for both flat and gently sloped ceilings. Supplied with two downrods of 152mm and 254mm to accommodate varying ceiling heights, the unit is designed for indoor and covered outdoor environments only and must be installed by a licensed electrician. The product is supported by a comprehensive 6-year warranty structure comprising 3 years in-home service plus an additional 3 years motor replacement coverage, ensuring long-term operational assurance and system durability.
COLOUR: Matt Black
MATERIAL: ABS (blades, body and canopy)
BLADES: 6
BLADE SPAN: 2032mm (80 inch)
BLADE PITCH: 11°
HANGSURE CANOPY: 10°
HEIGHT: 325mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 55W
RPM: Up to 160
AIRFLOW EFFICIENCY: Up to 350m³/hr per watt
AIRFLOW: 19000m³/hr (Speed 6 highest); 16454m³/hr (Speed 5); 13592m³/hr (Speed 4); 10521m³/hr (Speed 3); 7592m³/hr (Speed 2); 5526m³/hr (Speed 1)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 2 downrods (152mm and 254mm); 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity
REQUIREMENTS: WiFi
WARRANTY: 6 years (3 year in-home + additional 3 years on motor)
