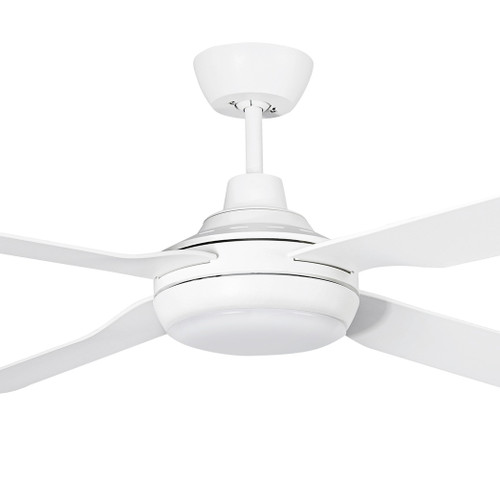

This ceiling fan is engineered as a high-capacity air circulation and illumination solution for residential interiors and covered outdoor environments, finished in white satin to deliver a clean and refined aesthetic suitable for contemporary spaces. Designed with a large 1420mm (56-inch) blade span and a precision-balanced four-blade configuration, it provides broad and consistent airflow coverage while maintaining a streamlined overall height of 350mm. The integrated form factor allows the fan to perform effectively in larger rooms while preserving visual balance and architectural harmony.
The fan is driven by a robust 65W AC motor operating on a 220-240V AC 50Hz electrical supply, delivering an impressive airflow output of up to 15,260m³/hr. Aerodynamic efficiency is enhanced through a carefully engineered 10° blade pitch, optimised specifically for the 56-inch configuration to maximise air displacement while maintaining smooth rotational stability. Three selectable speed settings are controlled via a supplied wall controller, allowing precise adjustment of airflow to suit changing comfort requirements.
Integrated lighting is provided through a fixed 15W LED module, delivering reliable illumination with selectable colour temperatures of 3000K warm white, 4000K cool white, and 5000K daylight white. This tricolour functionality enables the lighting output to be tailored to different environments and times of day, while three-step switch dimming offers simple and practical brightness control. The LED system delivers up to 1745 lumens and is designed for a rated lifespan of 35,000 hours at Ta25°C, ensuring long-term efficiency and reduced maintenance.
Constructed entirely from durable ABS for the blades, body, and canopy, the fan offers excellent structural stability and resistance to environmental stress, making it suitable for indoor and covered outdoor applications. The HANGSURE canopy system supports installation on ceilings with up to a 15° rake, providing added installation flexibility. Featuring a reversible motor for summer cooling and winter heat recirculation, compliance with Australian and New Zealand electrical standards, and a comprehensive six-year warranty including extended motor coverage, this white satin AC ceiling fan represents a dependable and technically refined solution for high-performance air movement and integrated lighting.
COLOUR: White Satin
MATERIAL: ABS (blades, body and canopy)
BLADES: 4
BLADE SPAN: 1420mm (56 inch)
BLADE PITCH: 10°
HANGSURE CANOPY: 15°
HEIGHT: 350mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50Hz
MOTOR TYPE: AC
MOTOR WATTAGE: 65W
AIRFLOW: 15260m³/hr
WALL CONTROL: Yes (3 speed with light switch)
REVERSIBLE: Yes (summer and winter mode)
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LED WATTAGE: 15W
LUMENS: 1580lm (3000K), 1745lm (4000K), 1690lm (5000K)
DIMMABLE: Yes (3 step switch dimming)
LIFE SPAN: 35,000 hours @ Ta25°C
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor use
COMPLIANCE: SAA-221130-EA
WARRANTY: 6 years (3 year in-home + additional 3 years replacement on motor)
