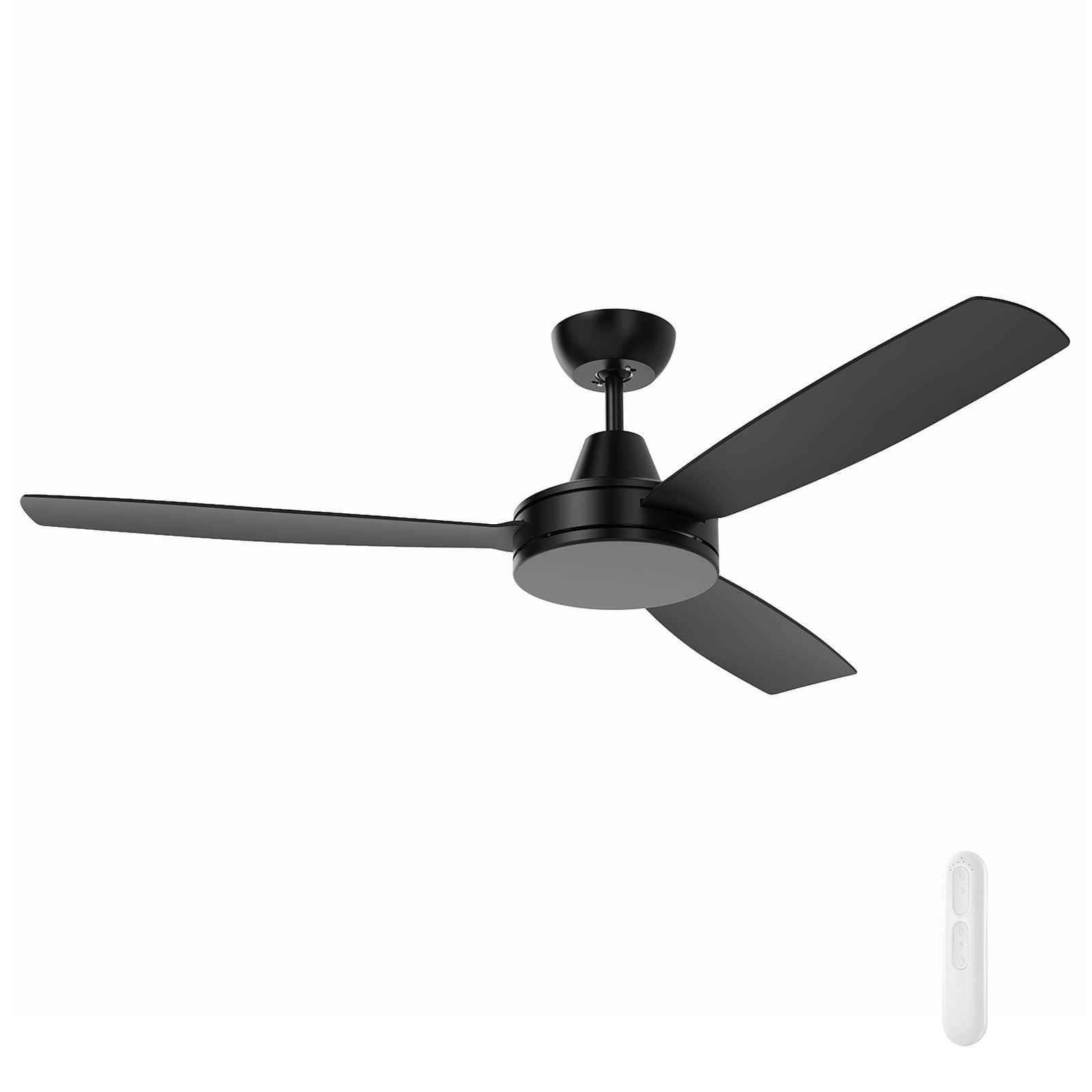

This ceiling fan is engineered with a high-performance 35W DC motor designed for optimal energy efficiency and silent operation. The unit features a 137cm blade span comprised of three precision-molded ABS plastic blades, which are specifically treated to be corrosion and UV-resistant. This robust construction ensures long-term durability and structural integrity in various environments, including coastal areas and enclosed alfresco spaces.
Technical performance is characterized by a significant airflow capacity of 9,403 cubic meters per hour, facilitated by a six-speed remote control system. The integration of a summer and winter reverse cycle setting allows for year-round thermal regulation, enhancing the aerodynamic efficiency of the air distribution. The physical dimensions include a 1370mm diameter and a 306mm drop height, supported by a 150mm ceiling canopy and a total unit weight of 4.5kg.
Installation versatility is a core attribute of this model, as it is compatible with raked ceilings up to a maximum pitch of 10 degrees. The inclusion of quick-connect wiring simplifies the electrical integration process, while the absence of an integrated light kit caters to specific architectural lighting requirements. The system is further expandable through optional accessories such as wall controls and extension rods to accommodate varying ceiling heights and user preferences.
Reliability is reinforced by a comprehensive warranty structure, including a three-year in-home warranty and a six-year motor warranty. The black finish provides a clean aesthetic that complements modern interior designs in living rooms, kitchens, and bedrooms. By utilizing advanced materials and DC motor technology, this ceiling fan represents a sophisticated solution for residential climate control and air circulation.
PRODUCT TYPE: Ceiling Fan
APPLICATIONS: Living room; kitchen; bedroom; coastal areas; dining room; alfresco
WARRANTY: 3 years (in-home warranty); 6 years (motor warranty)
COLOUR: Black
MATERIAL: ABS plastic (blades); corrosion and UV-resistant ABS material
WATTAGE: 35W
DIMENSIONS: 1370mm (diameter) x 306mm (height)
CEILING CANOPY: 150mm (diameter)
WEIGHT: 4.5kg
REMOTE CONTROL: Yes (6 speed)
INSTALLATION: Easy installation with quick-connect wiring
BLADES: 3 x ABS plastic
BLADE SPAN: 137cm (54 inch)
AIRFLOW: 9,403m³/hr
MOTOR: 35W DC
REVERSE CYCLE: Yes
CEILING RAKE: Can be installed on raked ceiling (max 10°)
ACCESSORIES: Wall control (sold separately); Extension rod (sold separately)
FEATURES: High-performance energy efficient motor; non-rusting blades; summer/winter reverse setting
REMARKS: For indoor and enclosed outdoor areas
