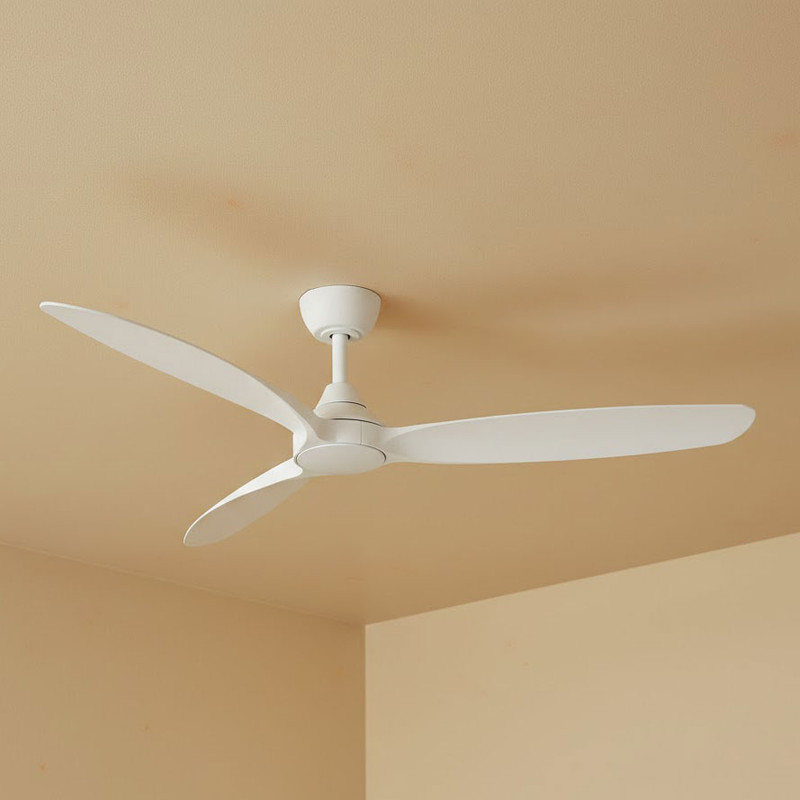

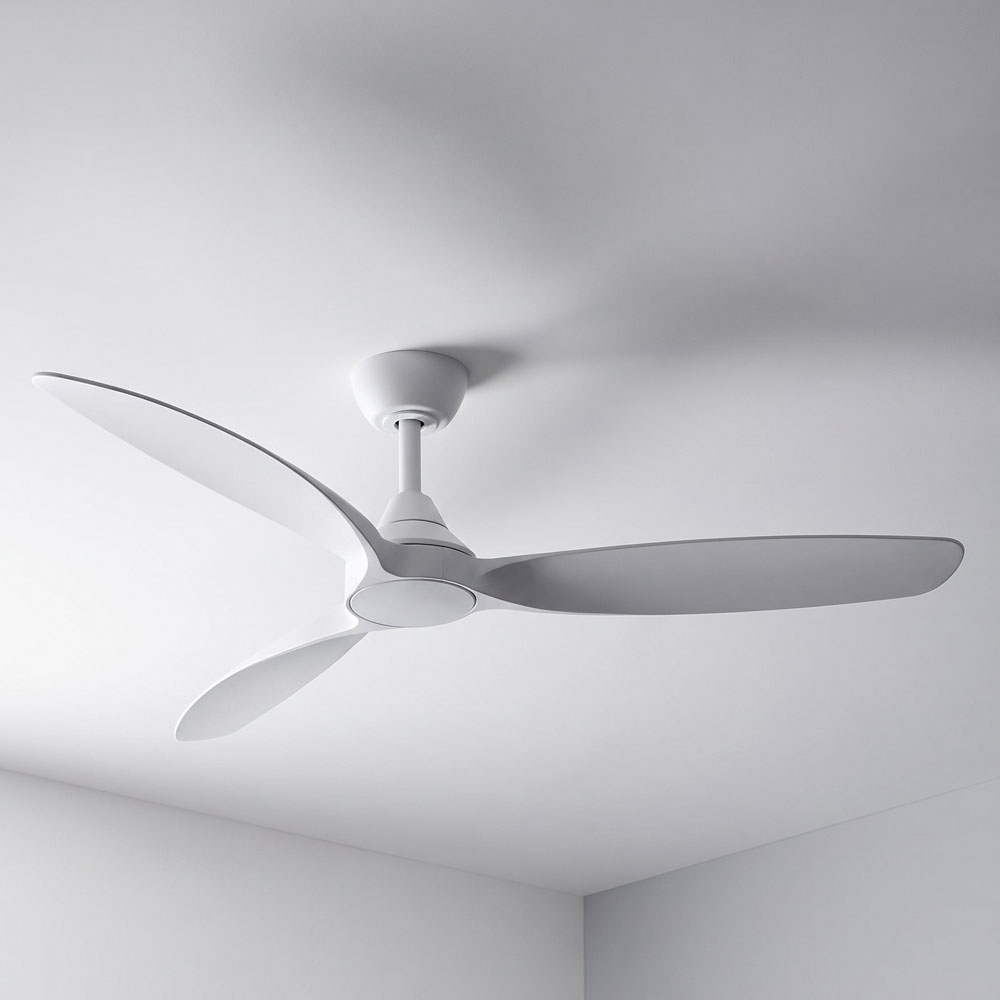

This ceiling fan is a precisely engineered smart air-movement solution designed for efficient performance in modern indoor and covered outdoor environments. Operating on a 33W brushless DC motor, the unit delivers stable rotational control with minimal acoustic output while achieving a maximum rotational speed of up to 195 RPM. With a blade span of 1320mm (52 inch) and six electronically controlled speed settings, the system provides finely regulated airflow output ranging from 3805m³/hr at low speed to 13140m³/hr at maximum speed, ensuring adaptable thermal comfort across a wide range of room sizes.
The aerodynamic system is configured with three precision-balanced ABS blades set at a 16° blade pitch to maximise volumetric air displacement and airflow efficiency of up to 400m³/hr per watt. The structural assembly utilises a steel body and canopy for dimensional stability and long-term mechanical integrity. The exterior finish is executed in matt white across the body, canopy and blades, delivering a clean architectural appearance with high surface durability.
The fan is mounted via a robust 150mm steel ceiling canopy with a 10° hangsure configuration to ensure secure mechanical support and stable rotational alignment. The system is fully reversible for both summer and winter operation, enabling effective downdraft cooling in warmer months and destratification airflow during cooler conditions to improve overall energy efficiency within the space.
Operational control is delivered through an integrated WiFi connectivity platform via the Smart Life application, complemented by a 433MHz physical remote control. Functional control modes include six fan speeds, reverse operation, breeze mode, sleep mode and programmable off-timer settings at 1hr, 4hr and 8hr intervals. The unit is supplied with the required A23 12V battery for immediate commissioning and must be installed by a licensed electrician to maintain warranty validity. Backed by a 6-year warranty with 3-year in-home service and an additional 3-year motor replacement period, this ceiling fan is engineered as a long-term, high-reliability airflow solution.
COLOUR: Matt White
MATERIAL: ABS (blades), Steel (body and canopy)
BLADES: 3
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 16°
HANGSURE CANOPY: 10°
HEIGHT: 315mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 195 RPM
AIRFLOW EFFICIENCY: Up to 400m³/hr per watt
AIRFLOW: 13140m³/hr (Speed 6, highest); 12110m³/hr (Speed 5); 10715m³/hr (Speed 4); 8762m³/hr (Speed 3); 6532m³/hr (Speed 2); 3805m³/hr (Speed 1)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off only; timer off - 1hr 4hr 8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity
WARRANTY: 6 year warranty (3 year in-home + additional 3 year replacement on the motor only)
